Baumer 2-Axis Base Plate Sensor 8 V 30 V, Analogue, 5-Pin

View all Motion Sensor ICs

Subtotal (1 unit)*

MYR1,091.17

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR1,091.17

*price indicative

RS Stock No.:
210-0661
Mfr. Part No.:
GIM140R-M245.KC0.A
Manufacturer:
Baumer
Find similar products by selecting one or more attributes.
Select all

Brand

Baumer

Sensor Type

MEMS

Product Type

Sensor

Number of Axis

2

Technology

Analogue

Mount Type

Base Plate

Interface Type

Analogue

Minimum Supply Voltage

8V

Maximum Supply Voltage

30V

Minimum Operating Temperature

-40°C

Pin Count

5

Maximum Operating Temperature

85°C

Height

14mm

Length

45mm

Width

48 mm

Series

GIM140R

Standards/Approvals

DIN EN 61000-6-2, ISO 9227:2017, DIN EN 60068-2-6, DIN EN 60068-2-27, DIN EN 60529, DIN EN 61000-6-3

Automotive Standard

No

Supply Current

12mA

COO (Country of Origin):
IT

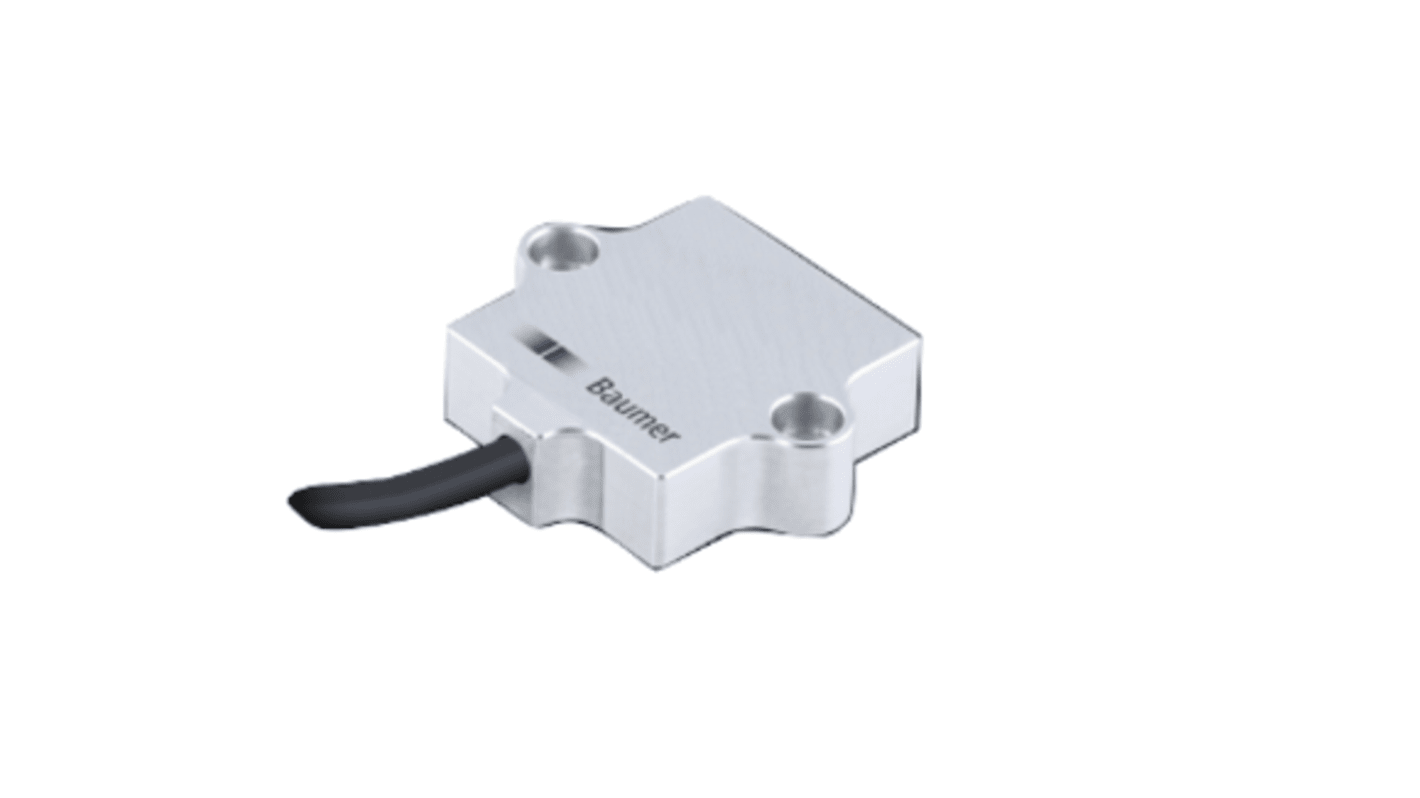

The Baumer 2-dimensional inclination sensor has analogue output and used MEMS capacitive measuring principle for sensor. It used metal housing which has measuring range ±60° and protected against short circuit and polarity reversal. It used cable which is 0.3 m long.

Operating temperature -40 to+85 °C

Protection IP 67/IP 69K

14 mm of height
