Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Broyce Control
	Monitoring Application	Phase, Voltage
	Electrical Phase	3
	Voltage Sensing Range	Maximum of 400V ac
	Contact Configuration	DPDT
	Voltage Sensitivity	Undervoltage
	Mounting Type	DIN Rail
	Phase Sensitivity	Phase Loss
	Time Delay	200ms
	Series	45 Series
	Height	78mm
	Operating Temperature Range	+60°C
	Minimum Operating Temperature	-20°C
	Length	99mm
	Maximum Operating Temperature	+60°C
	Width	45mm
	Maximum Voltage Sensed	400V ac
	Dimensions	99 x 45 x 78mm

	Select all
	Brand Broyce Control
	Monitoring Application Phase, Voltage
	Electrical Phase 3
	Voltage Sensing Range Maximum of 400V ac
	Contact Configuration DPDT
	Voltage Sensitivity Undervoltage
	Mounting Type DIN Rail
	Phase Sensitivity Phase Loss
	Time Delay 200ms
	Series 45 Series
	Height 78mm
	Operating Temperature Range +60°C
	Minimum Operating Temperature -20°C
	Length 99mm
	Maximum Operating Temperature +60°C
	Width 45mm
	Maximum Voltage Sensed 400V ac
	Dimensions 99 x 45 x 78mm

COO (Country of Origin):: GB

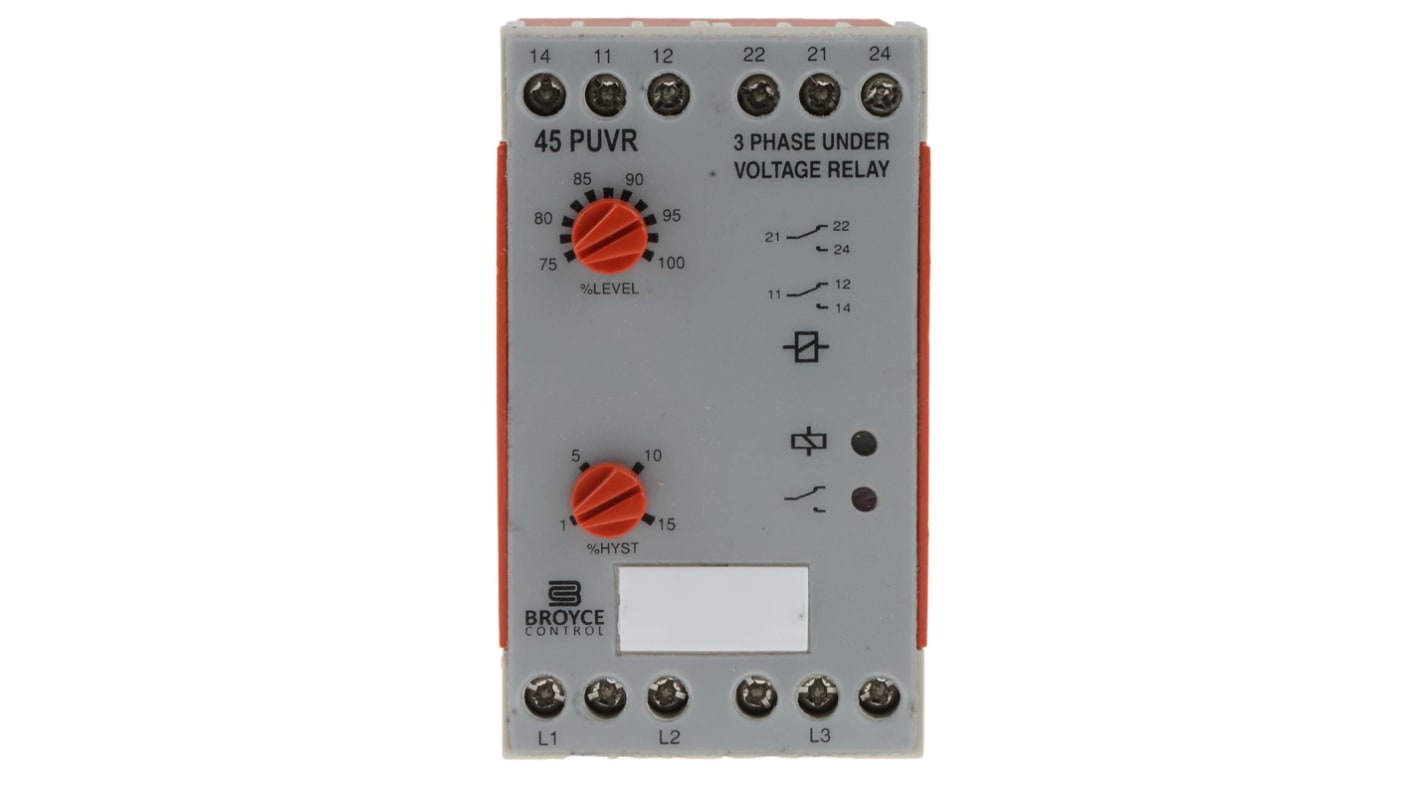

45PUVR - 3 phase Under-Voltage Relay

Detects under-voltage condition
Detects phase loss
Detects neutral loss (4-wire version)
Adjustment for trip level and hysteresis
Monitors own supply
Time delay: 200ms (from fault)
1 x DPDT relay output 8A
LED indication for supply and relay status
DIN rail housing
Write on identification tab
Dimensions: H78 x W45 x D99mm

Broyce Monitor Relays

Relay controllers manufactured using flame retardant material to UL94 VO
Electrical life: ≥150 000 operations
Suitable for use within ambient temperature environments from -20 to +60°C (except stock no. 361-1710 and 361-1681 which are suitable from -20 to +50°C)

Note

Output relay contact rating specified at 250Vac

Broyce Control Phase, Voltage Monitoring Relay, 3 Phase, DPDT, Maximum of 400V ac, DIN Rail

45PUVR - 3 phase Under-Voltage Relay
