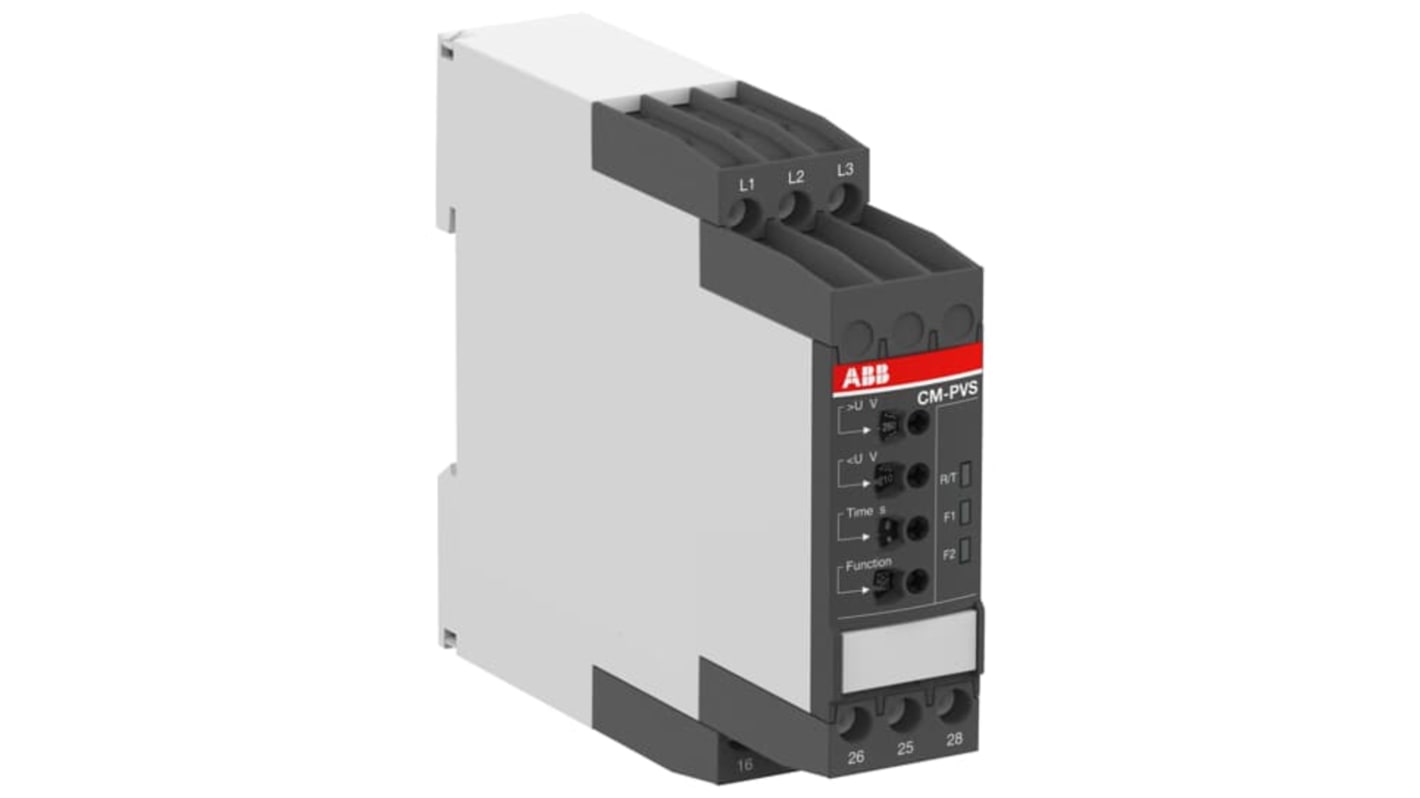

ABB Monitoring Relay, 3 Phase, 160/300 V ac Monitor Range, DPDT, DIN Rail
- RS Stock No.:
- 231-9531
- Mfr. Part No.:
- 1SVR730794R1300 CM-PVS.31
- Manufacturer:
- ABB
Subtotal (1 unit)*
MYR1,485.04
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR1,485.04 |
*price indicative
- RS Stock No.:
- 231-9531
- Mfr. Part No.:
- 1SVR730794R1300 CM-PVS.31
- Manufacturer:
- ABB
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Function | Undervoltage Monitoring, Plug | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Switching Voltage | 24V | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Contact Current | 4A | |
| Monitoring Voltage Range | 160/300 V ac | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Series | CM-PVS | |
| Length | 103.7mm | |
| Standards/Approvals | RoHS | |
| Width | 22.5mm | |
| Height | 85.6mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Function Undervoltage Monitoring, Plug | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Switching Voltage 24V | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Contact Current 4A | ||
Monitoring Voltage Range 160/300 V ac | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Series CM-PVS | ||
Length 103.7mm | ||
Standards/Approvals RoHS | ||
Width 22.5mm | ||
Height 85.6mm | ||
- COO (Country of Origin):
- DE
The ABB three-phase monitoring relay CM-PVS.31S monitor the phase parameters phase sequence, phase failure as well as over and under voltage. It has LED for the indication of operational states.
Precise adjustment by front-face operating controls
Screw connection technology
TRMS measuring principle
