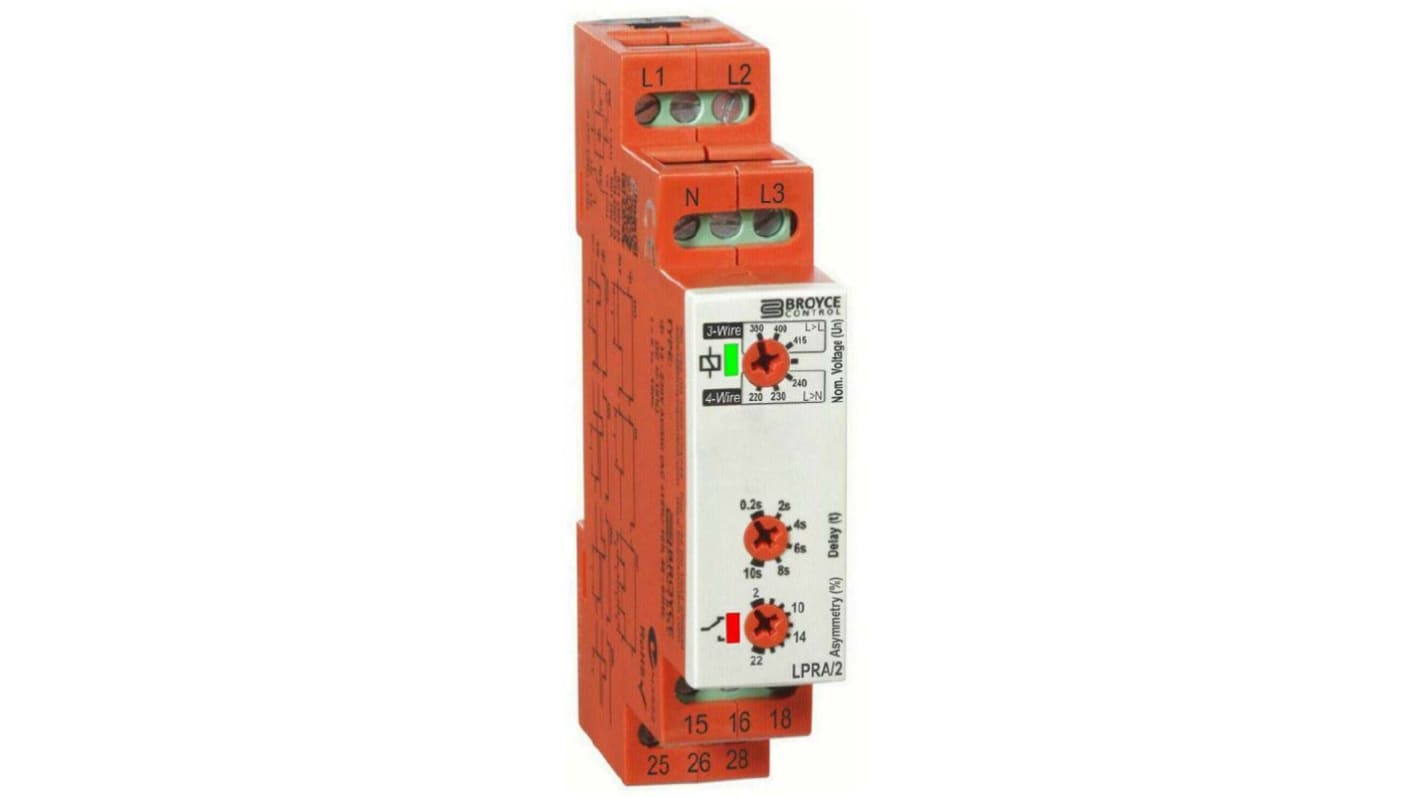

Broyce Control Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 243 → 540 V, DIN Rail

RS Stock No.:: 135-6186
Mfr. Part No.:: LPRA/2 400V
Manufacturer:: Broyce Control

Broyce Control Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 243 → 540 V, DIN Rail

4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR685.80

Units	Per Unit
1 +	MYR685.80

RS Stock No.:: 135-6186
Mfr. Part No.:: LPRA/2 400V
Manufacturer:: Broyce Control

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

LPRA/2 Phase Asymmetry, Failure, Sequence, Under Voltage plus Time Delay

Broyce Controls L-Series signal conditioners use a QR barcode marking method allowing direct access to all technical data sheets, ensuring correct information is always at your finger tips!

Features and Benefits

Compact 17.5 mm DIN Rail housing

Microprocessor based

True R.M.S. monitoring measuring phase to phase (three wire) or phase to neutral (4-wire) voltages

Selectable nominal voltages to suit most popular three wire or 4-wire supply voltages

Monitors own supply and detects phase asymmetry/unbalance

Detects incorrect phase sequence, phase loss and neutral loss1

Adjustment for Asymmetry trip level

Adjustment for time delay

DPDT relay output 5A

Green LED indication for supply status

Red LED indication for relay status

Approvals

UL Certification

Broyce Monitor Relays

Relay controllers manufactured using flame retardant material to UL94 VO
Electrical life: ≥150 000 operations
Suitable for use within ambient temperature environments from -20 to +60°C (except stock no. 361-1710 and 361-1681 which are suitable from -20 to +50°C)

Note

Output relay contact rating specified at 250Vac

Specifications

Attribute	Value
Monitoring Application	Phase, Voltage
Electrical Phase	3
Contact Configuration	DPDT
Voltage Sensing Range	243 → 540 V
Voltage Sensitivity	Undervoltage
Mounting Type	DIN Rail
Phase Sensitivity	Phase Asymmetry, Phase Failure, Phase Sequence
Time Delay	0.2 → 10s
Series	L
Length	66.5mm
Maximum Operating Temperature	+60°C
Width	17.5mm
Height	89mm
Minimum Operating Temperature	-20°C
Dimensions	66.5 x 17.5 x 89mm
Terminal Type	Screw
Minimum Voltage Sensed	243 V
Maximum Voltage Sensed	540V
Operating Temperature Range	+60°C
Number of Poles	2
Special Features	Microprocessor Based, Detects Incorrect Phase Sequence, Phase Loss And Neutral Loss, Adjustment For Asymmetry Trip Level, Adjustment For Time Delay, Green Led Indication For Supply Status
