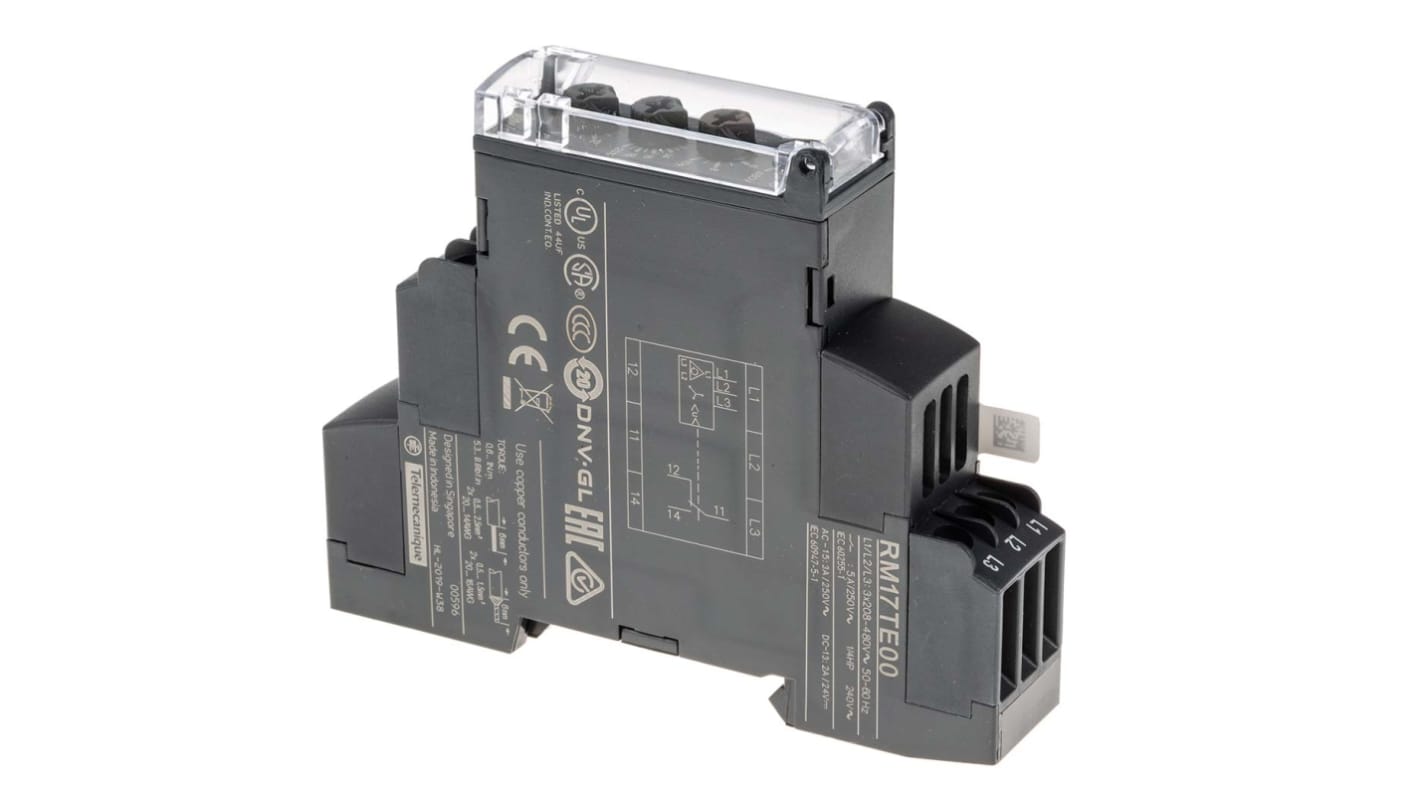

Schneider Electric Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 183 → 528V ac, DIN Rail

RS Stock No.:: 146-496
Mfr. Part No.:: RM17TE00
Manufacturer:: Schneider Electric

Schneider Electric Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 183 → 528V ac, DIN Rail

Price Each

MYR1,092.28

6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR1,092.28

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 146-496
Mfr. Part No.:: RM17TE00
Manufacturer:: Schneider Electric

RM17 Tx00 Series Three-Phase Network Control Relay

Schneider Electric RM17Tx00 Series multi-function 3 phase supply control relays. Monitoring the correct sequencing of phases L1, L2, and L3 and the total loss of one or more of each phase. In the event of a phase sequence or missing phase fault, the relay opens instantly. In the event of voltage fault, the relay opens at the end of the time delay set.

Clear hinged front cover
Front face potentiometer
LED output status
DIN rail

Phase, Asymmetry and Under-Voltage / Over-Voltage Controller: RM17 TE00

The relay monitors its own Un supply voltage:
The relay controls: the direct sequence of the three phases, the loss of at least one of the three phases (U measured < 0.7 x Un), asymmetry adjustable from 5 → 15 % of Un, over- and under-voltage drift in window mode adjustable from 2 → 20 % of Un.

Standards

NF EN 60255-6 and IEC 60255-6

Approvals

UL, CSA, GL, C-Tick, GOST

Schneider Electric Harmony Control Series Monitoring Relay, SPDT Contact Configuration, Phase/Voltage Monitoring Application - RM17TE00

This monitoring relay is designed for effective supervision of three-phase voltage and phase conditions. It protects against phase imbalances, failures, and voltage fluctuations, ensuring the integrity of electrical systems. The device offers real-time monitoring, providing dependability in industrial automation and electrical applications.

Features & Benefits

• Adjustable time delay from 0.1 to 10 seconds provides operational flexibility
• Monitors overvoltage and undervoltage for improved protection
• Phase failure detection helps prevent operational disruptions
• Strong switching capacity supports industrial loads
• Utilises screw terminals for secure connections
• Designed for DIN rail mounting, simplifying installation and integration

Applications

• Suitable for three-phase electrical supplies requiring voltage monitoring
• Ideal for industrial environments needing phase failure detection
• Used in automation systems for phase sequence control
• Implemented where phase asymmetry monitoring is critical

What happens if the voltage exceeds the specified range?

It triggers an alarm, allowing for immediate corrective measures to prevent damage.

Is installation on a DIN rail mandatory?

While it is designed for DIN rail mounting, it can be fitted in other suitable locations.

How does it respond to a phase failure?

The device detects the failure and activates a warning signal for prompt attention.

Can it be adjusted for specific voltage thresholds?

Yes, the device allows for threshold adjustments within designated limits.

What is the maintenance protocol for this relay?

Regular visual inspections and functionality tests are recommended to ensure consistent operation.

Schneider Electric Voltage, Current, Phase & Motor Protection

Attribute	Value
Monitoring Application	Phase, Voltage
Electrical Phase	3
Voltage Sensing Range	183 → 528V ac
Contact Configuration	SPDT
Voltage Sensitivity	Overvoltage, Undervoltage
Mounting Type	DIN Rail
Phase Sensitivity	Phase Asymmetry, Phase Failure, Phase Sequence
Time Delay	0.1 → 10s
Series	Harmony Control
Better World Verification	Green Premium
Better World Product	Yes
Height	90mm
Maximum Voltage Sensed	528V ac
Dimensions	72 x 17.5 x 90mm
Minimum Operating Temperature	-20°C
Width	17.5mm
Maximum Operating Temperature	+50°C
Special Features	IP20 Terminals
Standards Met	CE, CSA, UL
Operating Temperature Range	-20 → +50°C
Minimum Voltage Sensed	183V ac
Length	72mm
Terminal Type	Screw
