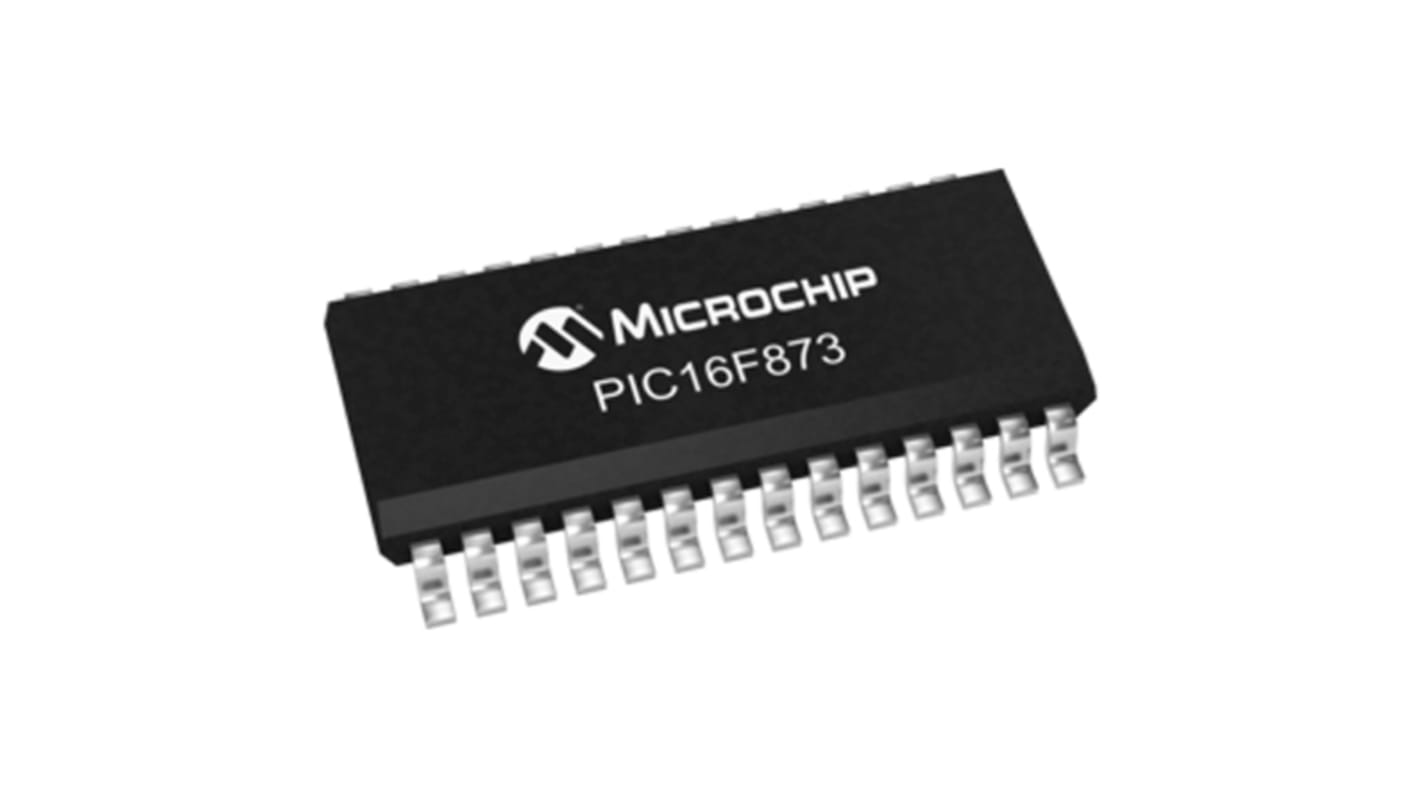

Microchip, 8bit PIC, PIC16F Microcontroller, 20MHz, 256 x 8 words, 8K x 14 words Flash, 28-Pin SOIC
- RS Stock No.:
- 467-1482
- Mfr. Part No.:
- PIC16F873-20/SO
- Manufacturer:
- Microchip
Subtotal (1 unit)**
MYR41.99
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 1 - 6 | MYR41.99 |
| 7 - 13 | MYR40.73 |
| 14 + | MYR39.50 |
**price indicative
Alternatives
This product is not currently available. Here are our alternative recommendations.
Each (In a Pack of 5)
MYR14.706
Each
MYR34.64
- RS Stock No.:
- 467-1482
- Mfr. Part No.:
- PIC16F873-20/SO
- Manufacturer:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | PIC16F | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 28 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 256 x 8 words, 8K x 14 words | |
| Maximum Frequency | 20MHz | |
| RAM Size | 192 B | |
| USB Channels | 0 | |
| Number of PWM Units | 2 x 10 bit | |
| Number of SPI Channels | 1 | |
| Number of UART Channels | 0 | |
| Number of USART Channels | 1 | |
| Typical Operating Supply Voltage | 4 → 5.5 V | |
| Number of I2C Channels | 1 | |
| Number of CAN Channels | 0 | |
| ADCs | 5 x 10 bit | |
| Length | 18.08mm | |
| Number of Ethernet Channels | 0 | |
| Width | 7.59mm | |
| Pulse Width Modulation | 2(10 bit) (CCP) | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | 0 °C | |
| Dimensions | 18.08 x 7.59 x 2.39mm | |
| Number of PCI Channels | 0 | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +70 °C | |
| Instruction Set Architecture | RISC | |
| Number of LIN Channels | 0 | |
| Height | 2.39mm | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Family Name PIC16F | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 28 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 256 x 8 words, 8K x 14 words | ||
Maximum Frequency 20MHz | ||
RAM Size 192 B | ||
USB Channels 0 | ||
Number of PWM Units 2 x 10 bit | ||
Number of SPI Channels 1 | ||
Number of UART Channels 0 | ||
Number of USART Channels 1 | ||
Typical Operating Supply Voltage 4 → 5.5 V | ||
Number of I2C Channels 1 | ||
Number of CAN Channels 0 | ||
ADCs 5 x 10 bit | ||
Length 18.08mm | ||
Number of Ethernet Channels 0 | ||
Width 7.59mm | ||
Pulse Width Modulation 2(10 bit) (CCP) | ||
Program Memory Type Flash | ||
Minimum Operating Temperature 0 °C | ||
Dimensions 18.08 x 7.59 x 2.39mm | ||
Number of PCI Channels 0 | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +70 °C | ||
Instruction Set Architecture RISC | ||
Number of LIN Channels 0 | ||
Height 2.39mm | ||
