Microchip, 8 bit PIC, PIC16C Microcontroller, 20 MHz, 1kB EPROM, 14-Pin PDIP
- RS Stock No.:
- 328-1993
- Mfr. Part No.:
- PIC16C505-04/P
- Manufacturer:
- Microchip

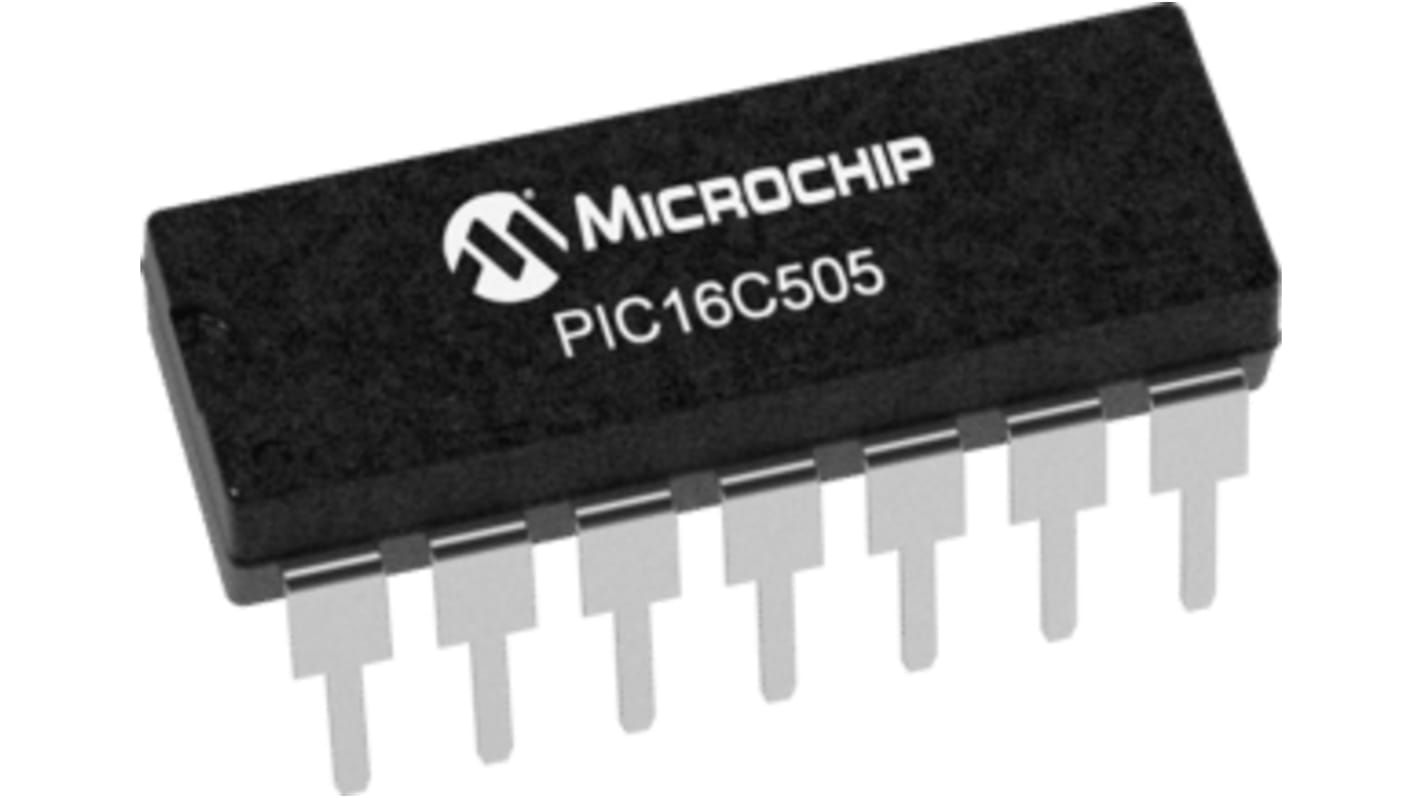

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR11.47
FREE delivery for orders over RM 500.00
In Stock
- Plus 486 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 7 | MYR11.47 |
| 8 - 14 | MYR11.21 |
| 15 + | MYR10.88 |
*price indicative
- RS Stock No.:
- 328-1993
- Mfr. Part No.:
- PIC16C505-04/P
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Series | PIC16C | |
| Product Type | Microcontroller | |
| Package Type | PDIP | |
| Mount Type | Through Hole | |
| Pin Count | 14 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 1kB | |
| Maximum Clock Frequency | 20MHz | |
| RAM Size | 72bit | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Power Dissipation Pd | 700mW | |
| Number of Programmable I/Os | 11 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Width | 6.6 mm | |
| Height | 3.68mm | |
| Length | 19.3mm | |
| Minimum Supply Voltage | 3V | |
| Instruction Set Architecture | RISC | |
| Automotive Standard | ISO 9001 | |
| ADCs | 0 bit | |
| Program Memory Type | EPROM | |
| Number of Timers | 1 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Series PIC16C | ||
Product Type Microcontroller | ||
Package Type PDIP | ||
Mount Type Through Hole | ||
Pin Count 14 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 1kB | ||
Maximum Clock Frequency 20MHz | ||
RAM Size 72bit | ||
Maximum Supply Voltage 5.5V | ||
Maximum Power Dissipation Pd 700mW | ||
Number of Programmable I/Os 11 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Width 6.6 mm | ||
Height 3.68mm | ||
Length 19.3mm | ||
Minimum Supply Voltage 3V | ||
Instruction Set Architecture RISC | ||
Automotive Standard ISO 9001 | ||
ADCs 0 bit | ||
Program Memory Type EPROM | ||
Number of Timers 1 | ||
PIC16C505 8-Bit Microcontrollers
The PIC16C range of Microcontrollers from Microchip are 8-bit CMOS MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Now supplanted by Flash based variants these CMOS devices are still popular in legacy designs. For new applications PIC16F variants should be considered.
The PIC16C505 family of microcontrollers is based upon Microchip’s baseline architecture with a 2 level hardware stack and 33 12-bit instructions. These MCUs provide up to 5 MIPS, 1.5 Kbytes program memory with data memory of 72 bytes RAM. On board is a RC oscillator with ±1% accuracy.
Features
33 Instructions
2 Level Hardware Stack
4 MHz Internal Oscillator
11 I/O Pins
One 8-bit Timer
Watchdog Timer (WDT)
Power-on Reset (POR)
Device Reset Timer (DRT)
In-Circuit Serial Programming (ICSP)
