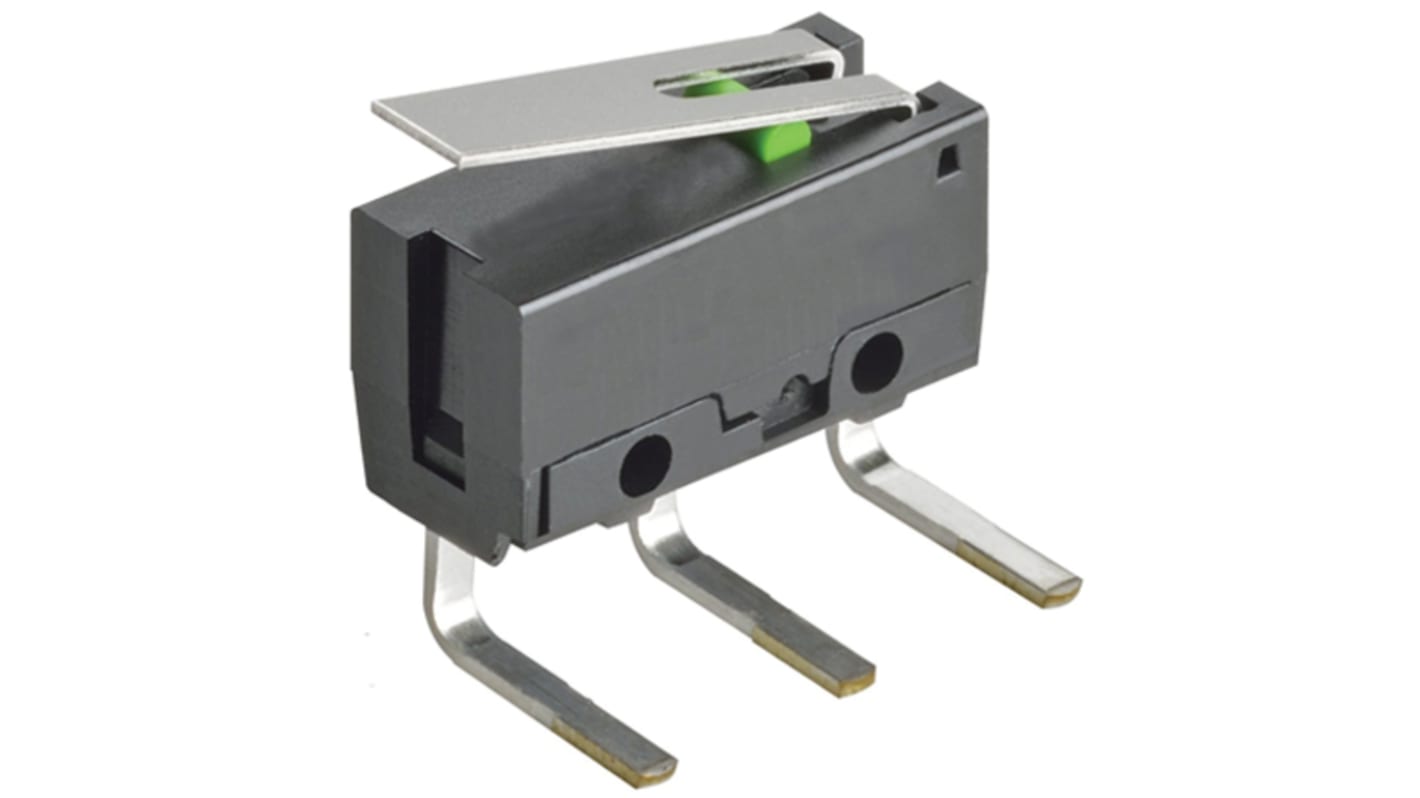

Aratas Hinge Lever Micro Switch, Right Angle PCB Terminal Terminal, 100mA, 600 V ac, 6 V dc, SPST, IP40
- RS Stock No.:
- 804-6174
- Mfr. Part No.:
- D2FS-FL-N-A
- Manufacturer:
- Aratas
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 5 units)*
MYR29.10
FREE delivery for orders over RM 150.00
In Stock
- 385 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 5 - 120 | MYR5.82 | MYR29.10 |
| 125 - 245 | MYR5.656 | MYR28.28 |
| 250 - 995 | MYR5.468 | MYR27.34 |
| 1000 - 2495 | MYR5.35 | MYR26.75 |
| 2500 + | MYR5.236 | MYR26.18 |
*price indicative
- RS Stock No.:
- 804-6174
- Mfr. Part No.:
- D2FS-FL-N-A
- Manufacturer:
- Aratas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Product Type | Micro Switch | |
| Actuator Type | Hinge Lever | |
| Terminal Type | Right Angle PCB Terminal | |
| Switch Contact Current | 100mA | |
| Contact Configuration | SPST | |
| IP Rating | IP40 | |
| Operating Force | 0.25N | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Contact DC Voltage | 6V dc | |
| Microswitch Type | Ultra Subminiature | |
| Contact AC Voltage | 600V ac | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Depth | 5.8mm | |
| Series | D2FS | |
| Length | 12.8mm | |
| Width | 6.5mm | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Product Type Micro Switch | ||
Actuator Type Hinge Lever | ||
Terminal Type Right Angle PCB Terminal | ||
Switch Contact Current 100mA | ||
Contact Configuration SPST | ||
IP Rating IP40 | ||
Operating Force 0.25N | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Contact DC Voltage 6V dc | ||
Microswitch Type Ultra Subminiature | ||
Contact AC Voltage 600V ac | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Depth 5.8mm | ||
Series D2FS | ||
Length 12.8mm | ||
Width 6.5mm | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- CN
D2FS Series Ultra Subminiature Basic Switch
The D2FS series switches from Omron were developed primarily for applications that require minimal switching actions over the period of use. Suitable for applications such as door-detection to prevent the misuse of meters.
Self-clinching variants available
Simple construction with single leaf movable spring
