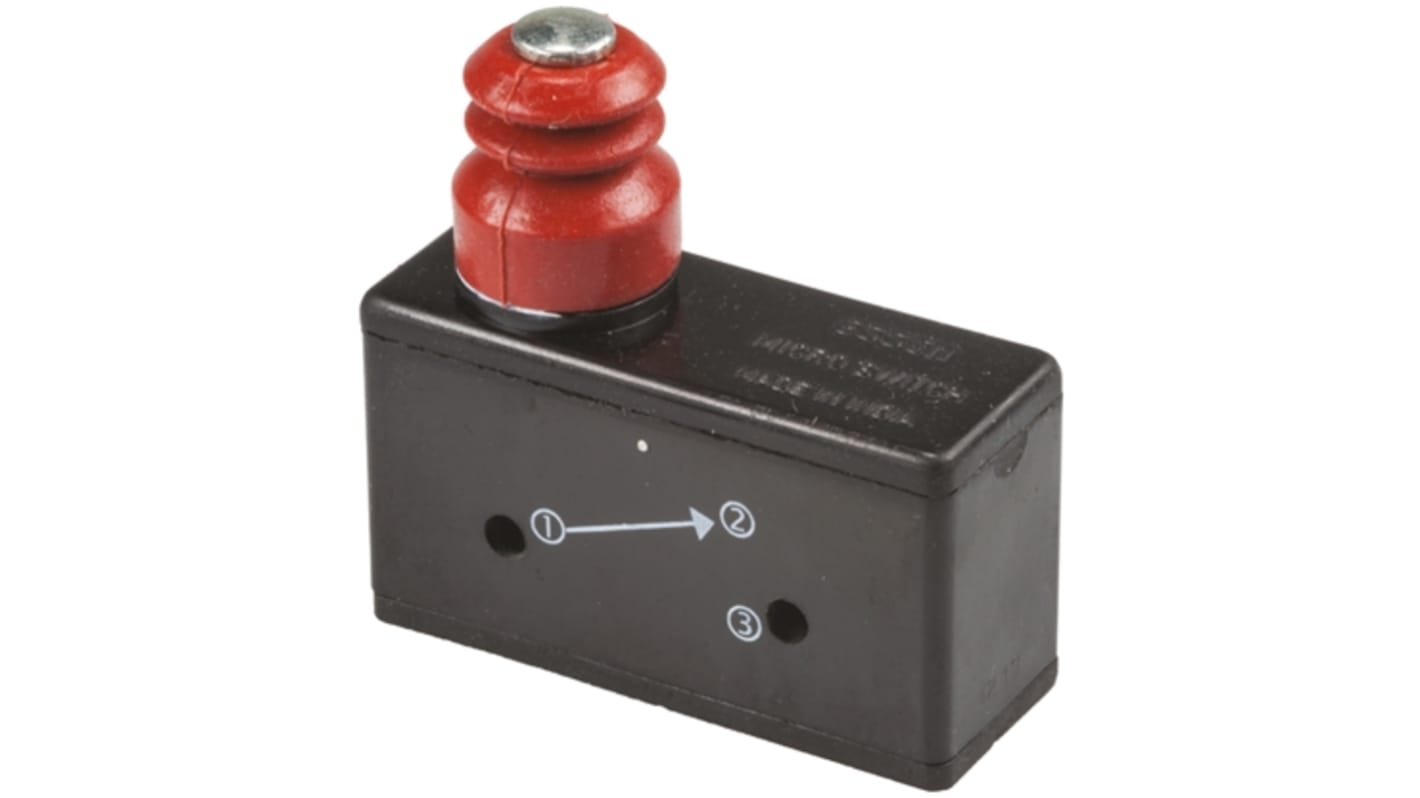

RS PRO Plunger Micro Switch, Screw Terminal, 15 A, 250 V ac, SPCO, IP54
- RS Stock No.:
- 797-2505
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
MYR124.76
FREE delivery for orders over RM 500.00
In Stock
- 56 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR124.76 |
| 10 - 24 | MYR122.16 |
| 25 - 49 | MYR118.42 |
| 50 - 249 | MYR115.54 |
| 250 + | MYR95.11 |
*price indicative
- RS Stock No.:
- 797-2505
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Micro Switch | |
| Actuator Type | Plunger | |
| Terminal Type | Screw | |
| Switch Contact Current | 15 A | |
| Housing Material | Metal | |
| Contact Configuration | SPCO | |
| IP Rating | IP54 | |
| Operating Force | 720g | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Contact AC Voltage | 250V ac | |
| Standards/Approvals | CE, IEC 1058-1, RoHS, CSA | |
| Hazardous Area Certification | No | |
| Mechanical Life | 1000000Operations | |
| Width | 20.5 mm | |
| Length | 52.8mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Micro Switch | ||
Actuator Type Plunger | ||
Terminal Type Screw | ||
Switch Contact Current 15 A | ||
Housing Material Metal | ||
Contact Configuration SPCO | ||
IP Rating IP54 | ||
Operating Force 720g | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Contact AC Voltage 250V ac | ||
Standards/Approvals CE, IEC 1058-1, RoHS, CSA | ||
Hazardous Area Certification No | ||
Mechanical Life 1000000Operations | ||
Width 20.5 mm | ||
Length 52.8mm | ||
- COO (Country of Origin):
- IN
RS PRO SP-CO Plunger Microswitch, 15 A at 250 V AC
Switch your electrical equipment on and off simply and reliably with this RS PRO plunger microswitch. The component has contacts made of silver, which is an excellent conductor of electricity as well as being highly resistant to oxidation. This will ensure reliable performance over a long lifespan. It also has a mechanical life of one million operations, so it's durable and requires minimal maintenance.
The switch's housing is made of sturdy metal that will resist impact, protecting your circuitry from damage. Use it for industrial manufacturing equipment or semi-automated machine tools. Engineers have rigorously tested this switch for quality and safety.
Features and Benefits
• Plunger actuator type
• Metal case
• Single Pole Changeover (SP-CO) contact configuration
• Contact current rating of 15 A at 250 V AC
• Fine silver contact material
• Mechanical life of 1,000,000 operations
• Operating force of 720 g
• Release force of 170 gf (gram-force)
• Meets IEC 1058-1 (International Electrotechnical Commission) standards
• Voltage rating of 250 V AC
• Screw terminal type
• Beryllium copper trident spring operating mechanism
