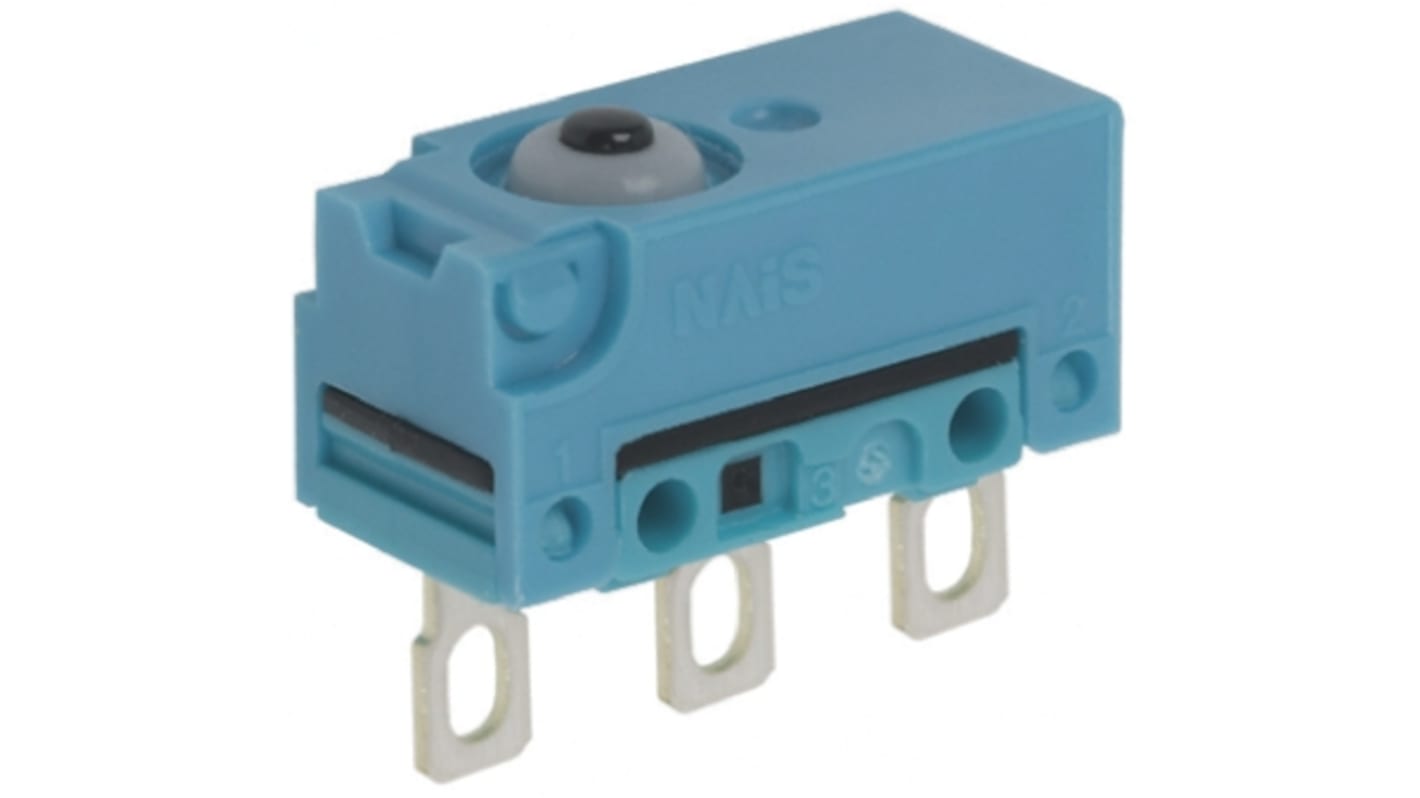

Panasonic Pin Plunger Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SP-CO, IP50
- RS Stock No.:
- 698-9690
- Mfr. Part No.:
- ABS141051
- Manufacturer:
- Panasonic
Temporarily out of stock - back order for despatch 30/09/2024, delivery within 4 working days from despatch date
Price Each
MYR21.68
Units | Per Unit |
|---|---|
| 1 - 24 | MYR21.68 |
| 25 - 49 | MYR21.04 |
| 50 + | MYR20.39 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 698-9690
- Mfr. Part No.:
- ABS141051
- Manufacturer:
- Panasonic
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
ABS Type Sub-miniature Turquoise Microswitch
These sealed subminiature micro switches are only 19.8 x 11.1 x 6.4 mm in size and have a high environmental resistance. Typical applications include home appliances and automotive electrical systems.
Subminiature size
Sealed construction
Elastomer double moulding technology and ultrasonic swaging technology contribute to uniform sealing
Expansion of low-level circuit type
Sealed construction
Elastomer double moulding technology and ultrasonic swaging technology contribute to uniform sealing
Expansion of low-level circuit type
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Pin Plunger |
| Terminal Type | Solder |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT |
| IP Rating | IP50 |
| Operating Force | 1.47 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Triple Clad Gold |
| Mechanical Life | 5 x 10^6Operations |
| Release Force | 0.2N |
| Operating Temperature Range | -40 → +85°C |
