Omron Pin Plunger Micro Switch, Pre-Wired Terminal, 2 A, SPDT, IP67
- RS Stock No.:
- 686-6749
- Mfr. Part No.:
- D2HW-C201M
- Manufacturer:
- Omron

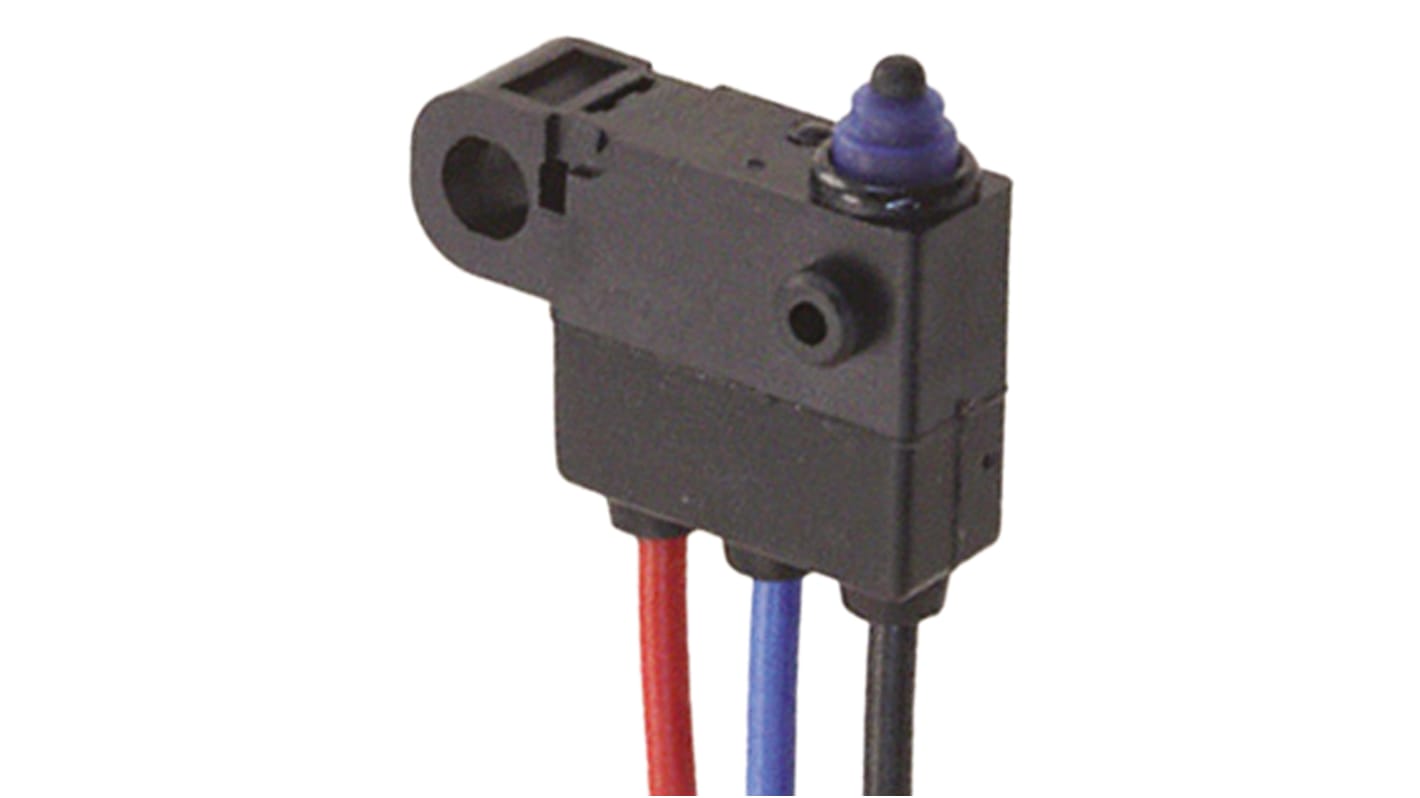

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR21.71
FREE delivery for orders over RM 500.00
Last RS stock
- 4 left, ready to ship from another location
- Plus 318 unit(s) shipping from 12 March 2026
- Plus 107 unit(s) shipping from 23 March 2026
Units | Per Unit |
|---|---|
| 1 - 49 | MYR21.71 |
| 50 - 149 | MYR21.25 |
| 150 - 249 | MYR20.60 |
| 250 - 499 | MYR20.08 |
| 500 + | MYR19.62 |
*price indicative
- RS Stock No.:
- 686-6749
- Mfr. Part No.:
- D2HW-C201M
- Manufacturer:
- Omron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Micro Switch | |
| Actuator Type | Pin Plunger | |
| Terminal Type | Pre-Wired | |
| Switch Contact Current | 2 A | |
| Contact Configuration | SPDT | |
| IP Rating | IP67 | |
| Operating Force | 0.75N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Microswitch Type | Sealed Ultra Subminiature | |
| Length | 18.5mm | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Mechanical Life | 1000000Operations | |
| Series | D2HW | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Micro Switch | ||
Actuator Type Pin Plunger | ||
Terminal Type Pre-Wired | ||
Switch Contact Current 2 A | ||
Contact Configuration SPDT | ||
IP Rating IP67 | ||
Operating Force 0.75N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Microswitch Type Sealed Ultra Subminiature | ||
Length 18.5mm | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Mechanical Life 1000000Operations | ||
Series D2HW | ||
Ultra Subminiature Sealed Microswitch ,(D2HW Screw Mount)
RoHS compliant
Extra long stroke
Dimensions are 78% of conventional models
PCB terminal versions have straight and right angled terminals
Contact rating: 2A @ 12Vdc, 0.1A @ 125Vac
Minimum Load: 1mA @ 5Vdc
Contact configuration: SPDT
