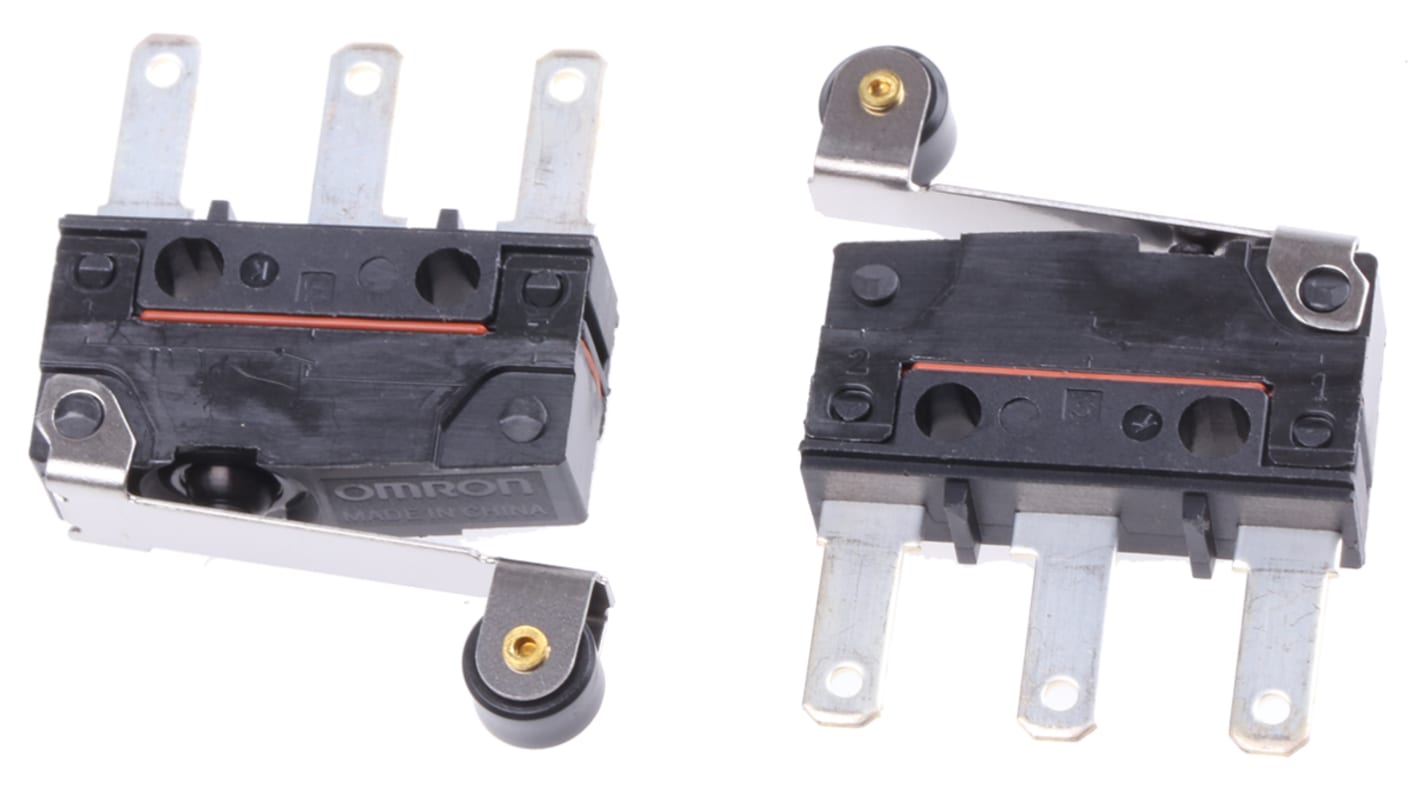

Aratas Roller Lever Micro Switch, Tab Terminal, 2A, 30 V dc, SPDT, IP67
- RS Stock No.:
- 682-2247
- Mfr. Part No.:
- D2SW-P2L2T
- Manufacturer:
- Aratas
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
MYR67.55
FREE delivery for orders over RM 150.00
In Stock
- 500 unit(s) ready to ship from another location
- Plus 675 unit(s) shipping from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 245 | MYR13.51 | MYR67.55 |
| 250 - 745 | MYR13.224 | MYR66.12 |
| 750 - 1245 | MYR12.824 | MYR64.12 |
| 1250 - 2495 | MYR12.51 | MYR62.55 |
| 2500 + | MYR12.24 | MYR61.20 |
*price indicative
- RS Stock No.:
- 682-2247
- Mfr. Part No.:
- D2SW-P2L2T
- Manufacturer:
- Aratas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Product Type | Micro Switch | |
| Actuator Type | Roller Lever | |
| Terminal Type | Tab | |
| Switch Contact Current | 2A | |
| Contact Configuration | SPDT | |
| IP Rating | IP67 | |
| Operating Force | 0.6N | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Microswitch Type | Sealed Subminiature | |
| Contact DC Voltage | 30V dc | |
| Series | D2SW-P | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Width | 6.4mm | |
| Mechanical Life | 1000000Operations | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Product Type Micro Switch | ||
Actuator Type Roller Lever | ||
Terminal Type Tab | ||
Switch Contact Current 2A | ||
Contact Configuration SPDT | ||
IP Rating IP67 | ||
Operating Force 0.6N | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Microswitch Type Sealed Subminiature | ||
Contact DC Voltage 30V dc | ||
Series D2SW-P | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Width 6.4mm | ||
Mechanical Life 1000000Operations | ||
- COO (Country of Origin):
- CN
Sealed Miniature Microswitches
High quality sealed miniature microswitch in industry standard V4 housing
Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
RoHS compliant
Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
Contact configuration: SPDT
Operating temperature range: -40 to +80°C
