Saia-Burgess Roller Lever Micro Switch, PCB Terminal Terminal, 6A, 250 V ac, SPDT, IP40
- RS Stock No.:
- 472-8140
- Mfr. Part No.:
- XCG8-S1-Z1
- Manufacturer:
- Saia-Burgess

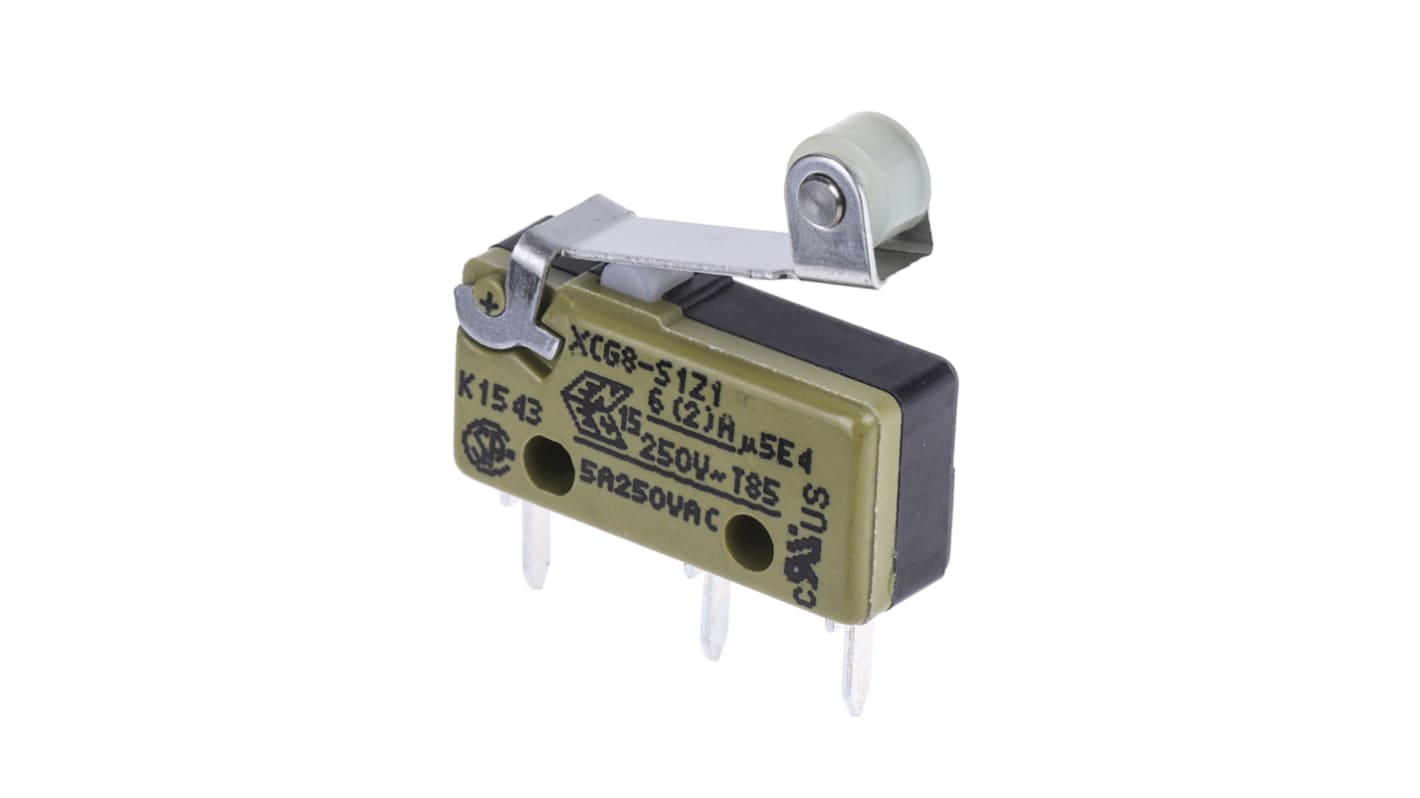

This image is representative of the product range
Subtotal (1 unit)*
MYR12.32
FREE delivery for orders over RM 500.00
In Stock
- 1,376 unit(s) ready to ship from another location
- Plus 210 unit(s) shipping from 16 June 2026
- Plus 1,429 unit(s) shipping from 07 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR12.32 |
*price indicative
- RS Stock No.:
- 472-8140
- Mfr. Part No.:
- XCG8-S1-Z1
- Manufacturer:
- Saia-Burgess
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Saia-Burgess | |
| Product Type | Micro Switch | |
| Actuator Type | Roller Lever | |
| Terminal Type | PCB Terminal | |
| Housing Material | Phenolic Melamine | |
| Contact Configuration | SPDT | |
| IP Rating | IP40 | |
| Operating Force | 0.7N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Microswitch Type | Subminiature | |
| Contact AC Voltage | 250V ac | |
| Series | XC | |
| Standards/Approvals | UL, ENEC, cUL, CSA | |
| Mechanical Life | 5Operations | |
| Select all | ||
|---|---|---|
Brand Saia-Burgess | ||
Product Type Micro Switch | ||
Actuator Type Roller Lever | ||
Terminal Type PCB Terminal | ||
Housing Material Phenolic Melamine | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Operating Force 0.7N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Microswitch Type Subminiature | ||
Contact AC Voltage 250V ac | ||
Series XC | ||
Standards/Approvals UL, ENEC, cUL, CSA | ||
Mechanical Life 5Operations | ||
- COO (Country of Origin):
- PL
XC Sub-miniature Micro-switches
Single pole changeover mechanism
High current versions
Solder, quick connect (2.8mm) and PCB mounting versions
UL94V-0 flame retardant housing
Contact Rating; XCG:6A / XCF:10A @ 250Vac
Operating temperature range: -40 to +85°C
Approvals
UL, CSA, ENEC
