Saia-Burgess Lever Micro Switch, Through Hole Terminal, 1 A @ 250 V ac, SPDT, IP54

RS Stock No.:: 301-2236
Mfr. Part No.:: F1NST8A1
Manufacturer:: Saia-Burgess

Saia-Burgess Lever Micro Switch, Through Hole Terminal, 1 A @ 250 V ac, SPDT, IP54

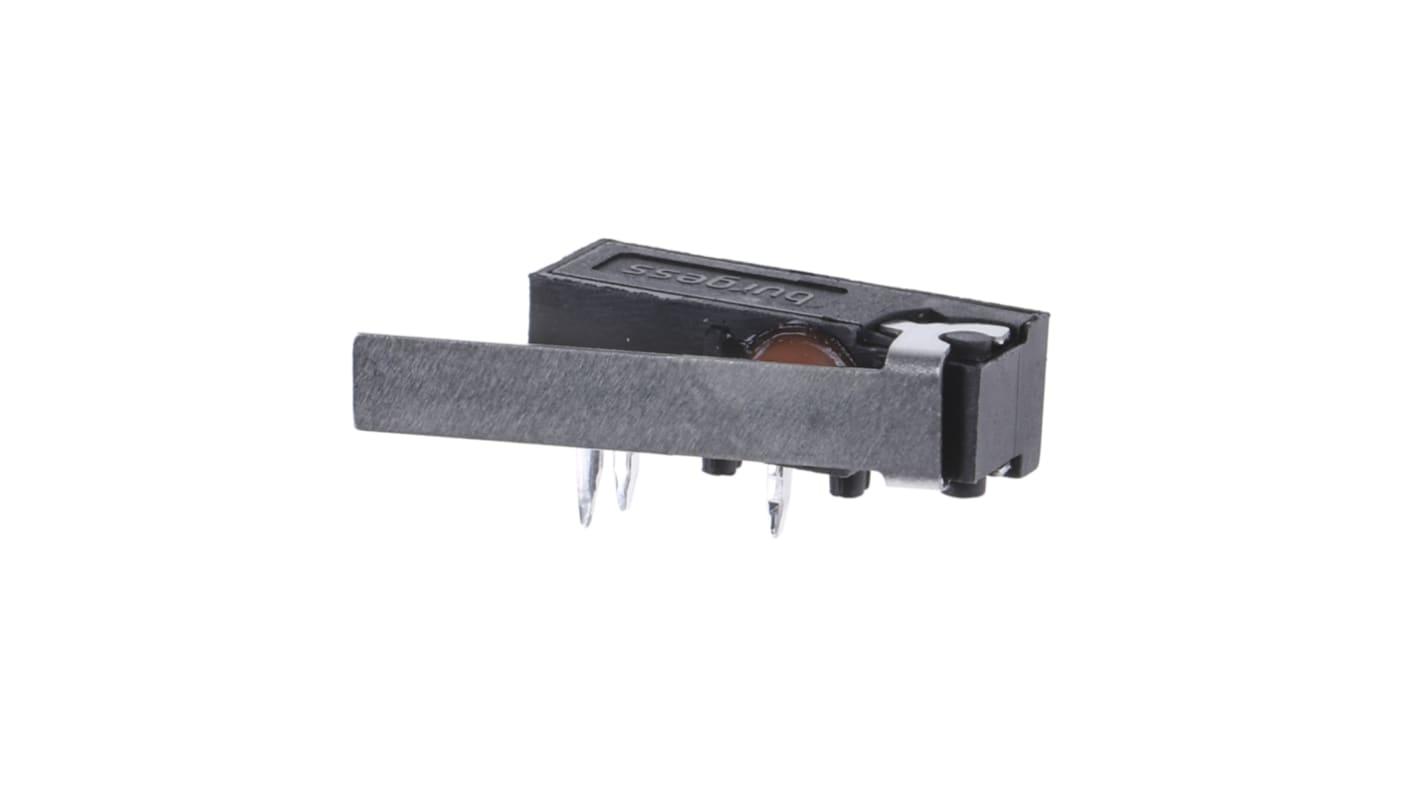

This image is representative of the product range

149 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Price Each

MYR22.14

Units	Per Unit
1 - 24	MYR22.14
25 - 49	MYR21.67
50 +	MYR21.00

RS Stock No.:: 301-2236
Mfr. Part No.:: F1NST8A1
Manufacturer:: Saia-Burgess

Datasheet

Attribute	Value
Actuator Type	Lever
Terminal Type	Through Hole
Contact Current Rating	1 A @ 250 V ac
Contact Configuration	SP-NO/NC
IP Rating	IP54
Operating Force	0.6 N
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Fine Silver
Case Material	Polyamide
Mechanical Life	10^7Operations
Release Force	0.09N
Operating Temperature Range	-40 → +85°C

Saia-Burgess Lever Micro Switch, Through Hole Terminal, 1 A @ 250 V ac, SPDT, IP54

Sub-Miniature Side Mounted PCB Switch

Features and Benefits:
