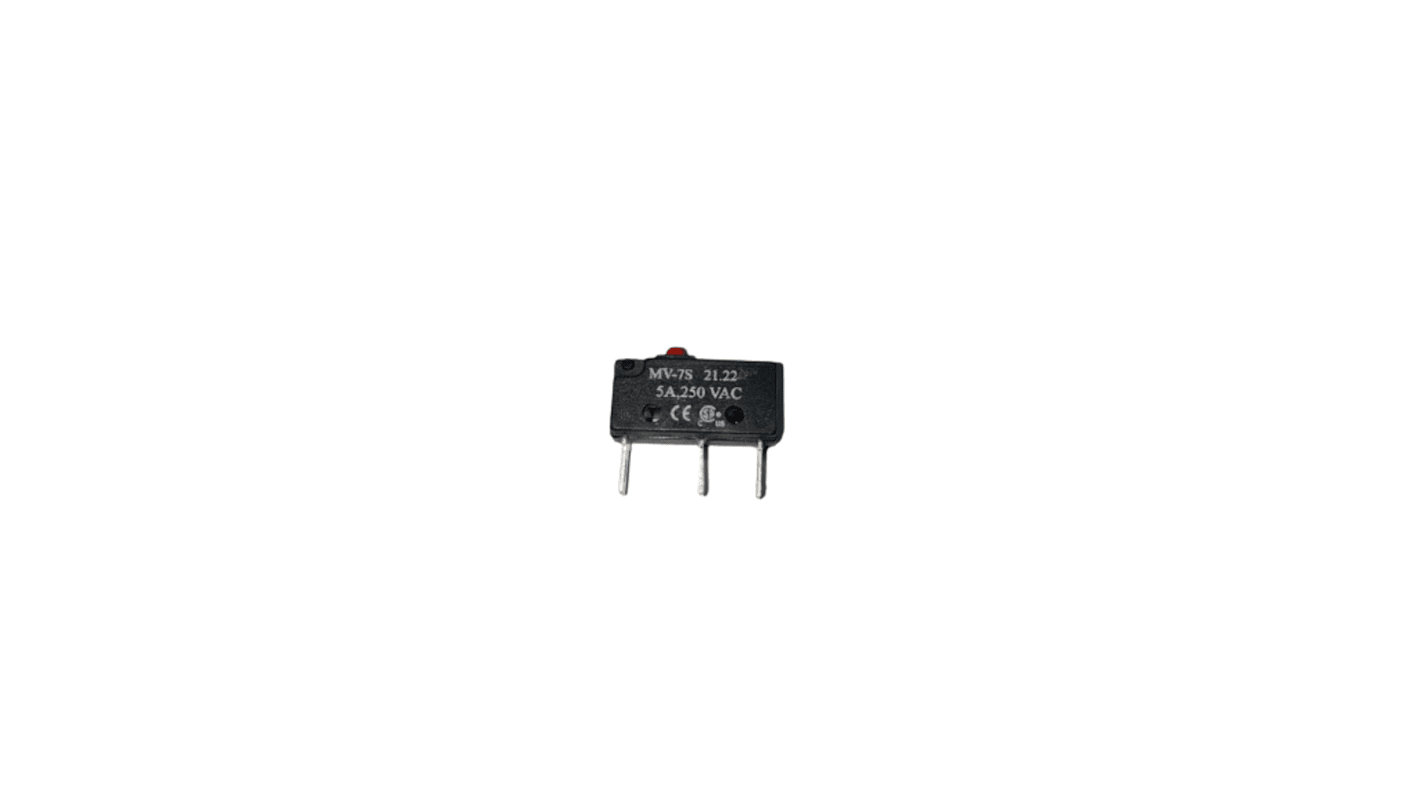

RS PRO Plunger Microswitch, Screw Terminal, 5A @ 250V ac, SPDT, IP40
- RS Stock No.:
- 249-6859
- Manufacturer:
- RS PRO
230 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Pack of 5)
MYR14.844
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | MYR14.844 | MYR74.22 |
| 50 - 495 | MYR14.354 | MYR71.77 |
| 500 + | MYR13.88 | MYR69.40 |
*price indicative
- RS Stock No.:
- 249-6859
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
RS PRO 1NO/1NC Miniature Plunger Micro Switch (5 A @ 250V
The RS PRO Plunger Micro Switch features a miniature, lightweight design with a total weight of only 1.8g and a Glass filled flame retardant Thermoplastic case for a robust and extremely compact miniature Micro Switch.
The RS PRO miniature Micro Switch is designed with a snap action 1NO/NC contact arrangement with Silver plated Copper Alloy terminals and can be easily mounted on a flat service using 2 x M2 screws.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Plunger switch ideal for a range of environments and applications.
Features and Benefits
- Plunger actuator with 2mm quick connect tabs
- Contact Configuration SPDT
- Contact Arrangement 1NO/1NC
- Glass filled flame retardant thermoplastic (UL94-V0) case
- Snap action
- Silver contacts
- Sliver plated terminals
- Total weight of 1.8g
Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Plunger |
| Terminal Type | Screw |
| Contact Current Rating | 5A @ 250V ac |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Operating Force | 142g |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver |
| Case Material | Glass Filled Thermoplastic |
| Mechanical Life | 500000Operations |
| Voltage Rating | 250V |
| Release Force | 28g |
