Honeywell Technologies Pin Plunger Micro Switch, PCB Terminal Terminal, 16A, 250 V ac, SPDT- NO, IP40
- RS Stock No.:
- 205-9809
- Mfr. Part No.:
- V19T16-P2P200A04
- Manufacturer:
- Honeywell Technologies

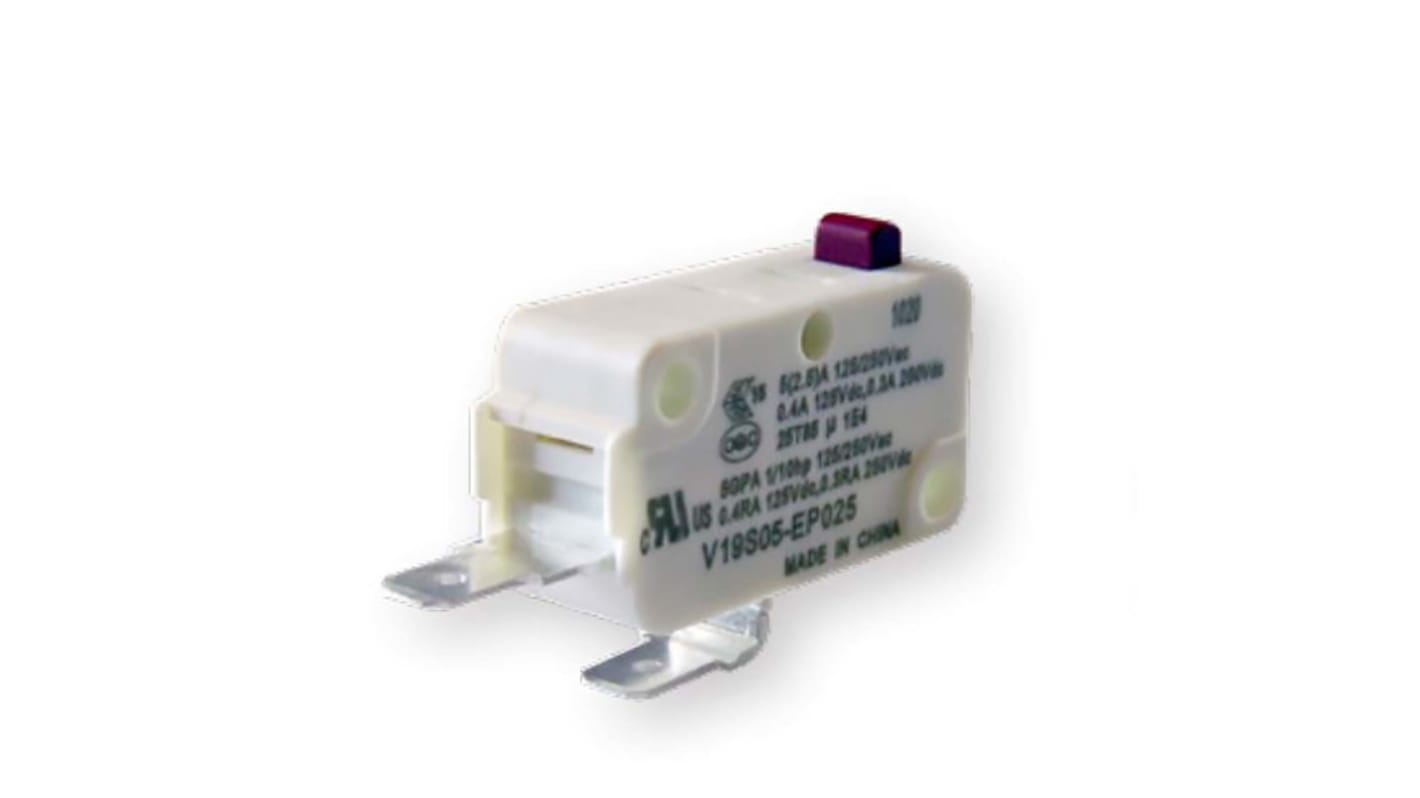

This image is representative of the product range
Get a bulk buy discount
Add 70 more to save MYR22.05
View bulk pricing optionsSubtotal (1 bag of 10 units)*
MYR112.42
FREE delivery for orders over RM 150.00
In Stock
- 210 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* | Saving |
|---|---|---|---|
| 10 - 60 | MYR11.242 | MYR112.42 | - |
| 70 - 120 | MYR10.927 | MYR109.27 | MYR22.05 |
| 130 + | MYR10.477 | MYR104.77 | MYR99.45 |
*price indicative
- RS Stock No.:
- 205-9809
- Mfr. Part No.:
- V19T16-P2P200A04
- Manufacturer:
- Honeywell Technologies
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell Technologies | |
| Product Type | Micro Switch | |
| Actuator Type | Pin Plunger | |
| Terminal Type | PCB Terminal | |
| Switch Contact Current | 16A | |
| Housing Material | Thermoplastic Polybutylene Terephthalate | |
| Contact Configuration | SPDT- NO | |
| IP Rating | IP40 | |
| Operating Force | 1.96N | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 125°C | |
| Microswitch Type | Unsealed | |
| Contact AC Voltage | 250V ac | |
| Series | V19 | |
| Width | 10.3mm | |
| Standards/Approvals | CQC, cUL, CSA, UL, RoHS, ENEC | |
| Hazardous Area Certification | No | |
| Mechanical Life | 1000000Cycles | |
| Length | 27.8mm | |
| Depth | 15.9mm | |
| Select all | ||
|---|---|---|
Brand Honeywell Technologies | ||
Product Type Micro Switch | ||
Actuator Type Pin Plunger | ||
Terminal Type PCB Terminal | ||
Switch Contact Current 16A | ||
Housing Material Thermoplastic Polybutylene Terephthalate | ||
Contact Configuration SPDT- NO | ||
IP Rating IP40 | ||
Operating Force 1.96N | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 125°C | ||
Microswitch Type Unsealed | ||
Contact AC Voltage 250V ac | ||
Series V19 | ||
Width 10.3mm | ||
Standards/Approvals CQC, cUL, CSA, UL, RoHS, ENEC | ||
Hazardous Area Certification No | ||
Mechanical Life 1000000Cycles | ||
Length 27.8mm | ||
Depth 15.9mm | ||
- COO (Country of Origin):
- CN
Honeywell V19 Series Micro Switch, 16A Switch Contact Current, 250V ac Contact AC Voltage - V19T16-P2P200A04
This micro switch is a Compact electromechanical switching device designed for insertion on PCB assemblies in controlled environments. It operates across a wide temperature span and is suited to applications where a small, pin-actuated switching element is required. The housing is formed from a thermoplastic material and the switch provides Basic ingress protection for indoor or protected locations.
Features and Benefits:
• 16A current rating delivers high load switching capacity
• 250V AC rating supports mains-voltage control circuits
• Pin plunger actuator enables precise mechanical triggering
• 1,000,000 cycle mechanical life ensures extended service longevity
• IP40 enclosure offers Basic protection against solid objects
• 250V AC rating supports mains-voltage control circuits
• Pin plunger actuator enables precise mechanical triggering
• 1,000,000 cycle mechanical life ensures extended service longevity
• IP40 enclosure offers Basic protection against solid objects
Applications
• Suitable for control panels in domestic appliances
• Ideal for PCB-mounted position sensing tasks
• Used with electrical relays for signal isolation
• Can be used for limit detection in light machinery
• Suitable for assembly in consumer electronic devices
• Ideal for PCB-mounted position sensing tasks
• Used with electrical relays for signal isolation
• Can be used for limit detection in light machinery
• Suitable for assembly in consumer electronic devices
What temperature range can it reliably operate within?
It functions between -25°C minimum and 125°C maximum.
What material is used for the external housing?
The enclosure is MADE from thermoplastic polybutylene terephthalate.
What type of terminals does it provide for connection?
It is furnished with PCB terminals for direct board mounting.
Is the switch sealed against hazardous atmospheres?
It is an unsealed microswitch and lacks hazardous area certification.
Which approval marks does it carry?
It holds approvals including CQC, cUL, CSA, UL, RoHS and ENEC.
