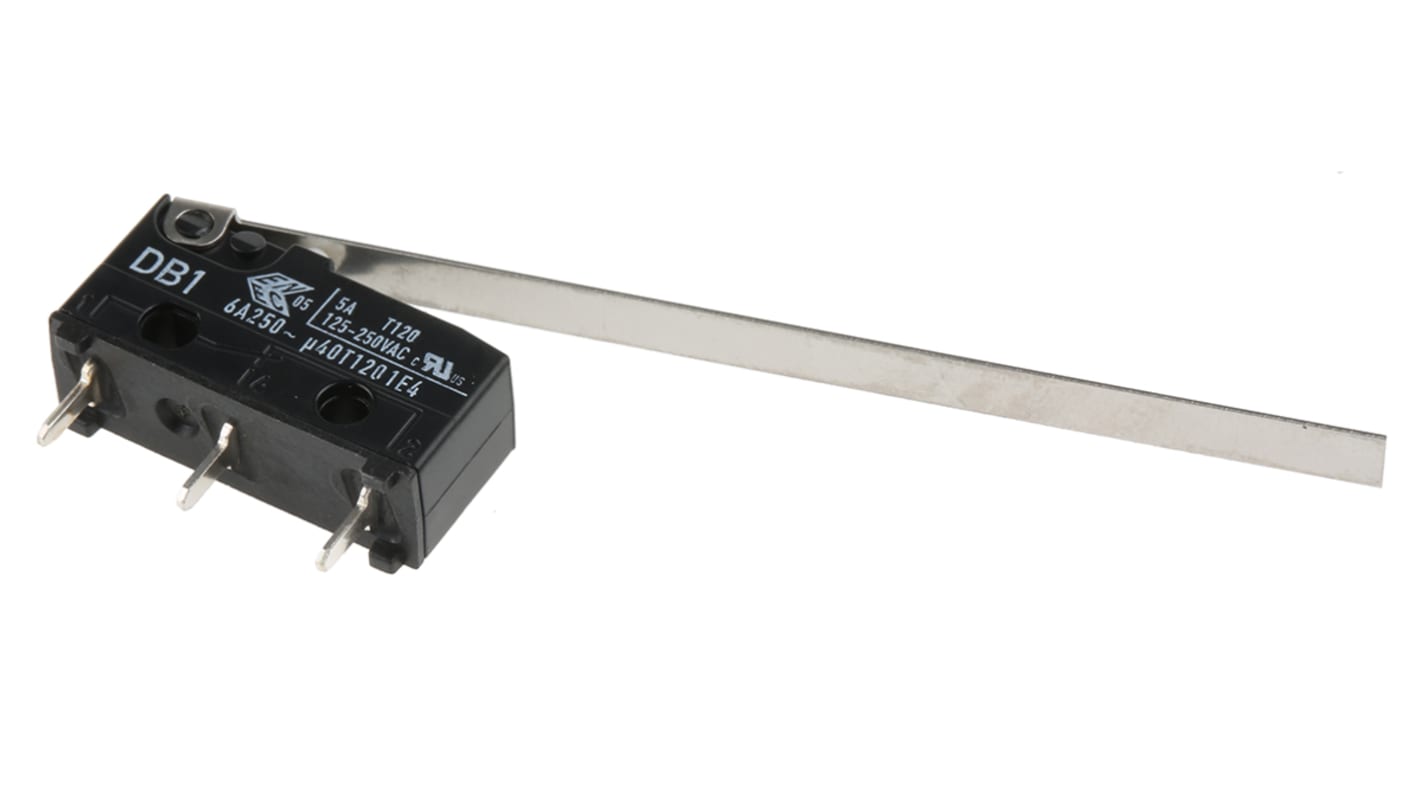

ZF Long Hinge Lever Micro Switch, Solder Terminal, 6A, 250 V ac, SPDT, IP50
- RS Stock No.:
- 159-4657
- Mfr. Part No.:
- DB1C-C1LD
- Manufacturer:
- ZF
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR27.48
FREE delivery for orders over RM 150.00
Limited stock
- 79 left, ready to ship from another location
- Plus 576 left, shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 49 | MYR27.48 |
| 50 - 149 | MYR26.90 |
| 150 - 249 | MYR26.06 |
| 250 - 499 | MYR25.42 |
| 500 + | MYR24.88 |
*price indicative
- RS Stock No.:
- 159-4657
- Mfr. Part No.:
- DB1C-C1LD
- Manufacturer:
- ZF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Product Type | Micro Switch | |
| Actuator Type | Long Hinge Lever | |
| Terminal Type | Solder | |
| Switch Contact Current | 6A | |
| Contact Configuration | SPDT | |
| Housing Material | Polyamide, Polyethylene Terephthalate | |
| IP Rating | IP50 | |
| Operating Force | 0.18N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 120°C | |
| Contact AC Voltage | 250V ac | |
| Microswitch Type | DB Subminiature | |
| Mechanical Life | 15000000Operations | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Series | DB1 | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Product Type Micro Switch | ||
Actuator Type Long Hinge Lever | ||
Terminal Type Solder | ||
Switch Contact Current 6A | ||
Contact Configuration SPDT | ||
Housing Material Polyamide, Polyethylene Terephthalate | ||
IP Rating IP50 | ||
Operating Force 0.18N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 120°C | ||
Contact AC Voltage 250V ac | ||
Microswitch Type DB Subminiature | ||
Mechanical Life 15000000Operations | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Series DB1 | ||
- COO (Country of Origin):
- DE
ZF Miniature Microswitch
The ZF DB series miniature Microswitch has a long hinge lever actuator and a contact rating of 6A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating force is 0.18N
PCB, straight type terminal
Operating temperature rating ranges between -40°C and +120°C
V4 case size
Mechanical life is more than 15x106
Certifications
IP50 rated
UL approved
CSA certified
VDE certified
SEV certified
SEMKO certified
KEMA certified
DEMKO certified
NEMKO certified
OVE certified
BEAB certified
SETI certified
Approvals
ENEC; UL
