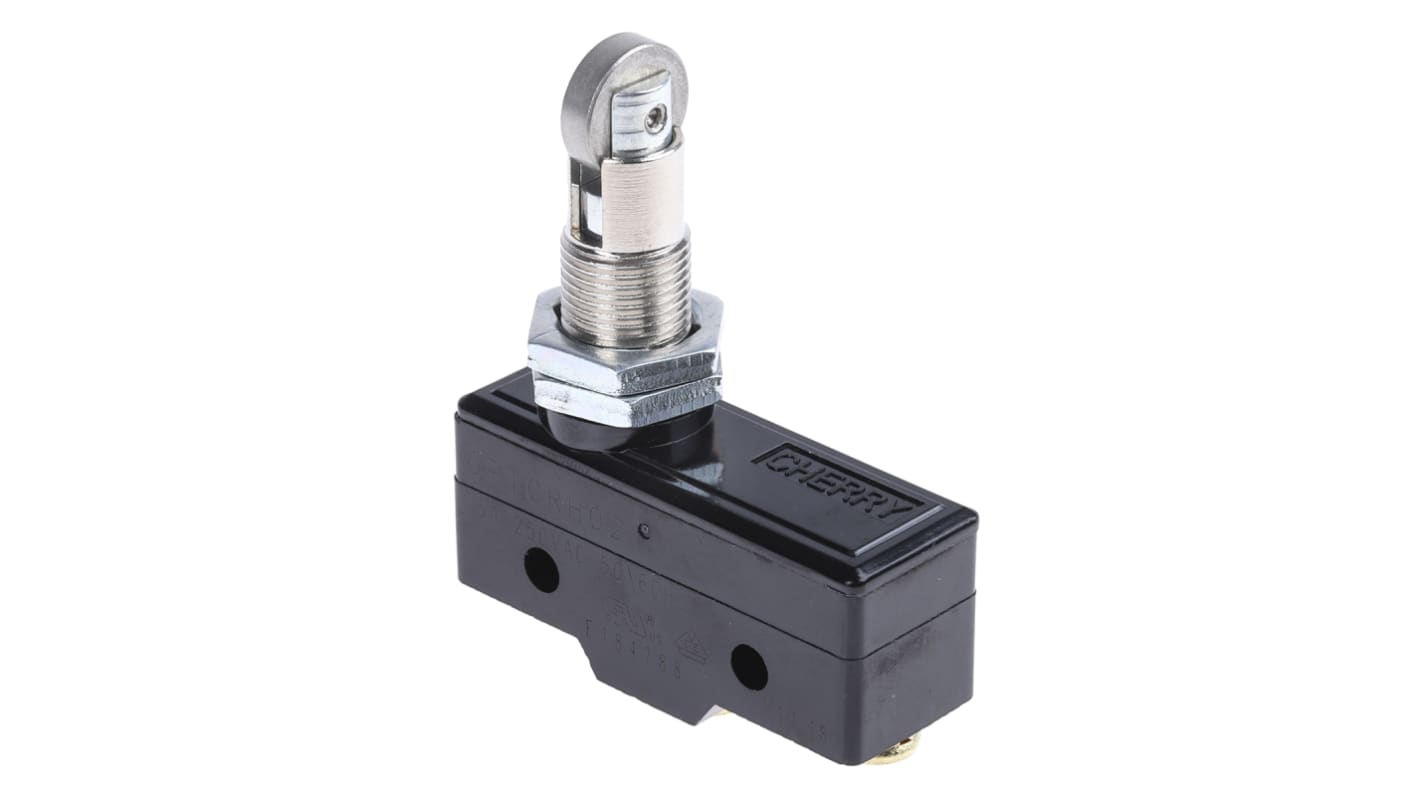

ZF Roller Micro Switch, Screw Terminal, 20A, 250 V ac, SPDT
- RS Stock No.:
- 517-915
- Distrelec Article No.:
- 300-17-548
- Mfr. Part No.:
- GPTCRH02
- Manufacturer:
- ZF
Subtotal (1 unit)*
MYR109.33
FREE delivery for orders over RM 150.00
In Stock
- 294 unit(s) ready to ship from another location
- Plus 1,065 unit(s) shipping from 02 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR109.33 |
*price indicative
- RS Stock No.:
- 517-915
- Distrelec Article No.:
- 300-17-548
- Mfr. Part No.:
- GPTCRH02
- Manufacturer:
- ZF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Actuator Type | Roller | |
| Product Type | Micro Switch | |
| Terminal Type | Screw | |
| Switch Contact Current | 20A | |
| Contact Configuration | SPDT | |
| Operating Force | 3.42N | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 85°C | |
| Microswitch Type | General Purpose Switch | |
| Contact AC Voltage | 250V ac | |
| Mechanical Life | 1000000Operations | |
| Hazardous Area Certification | No | |
| Series | GP | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Actuator Type Roller | ||
Product Type Micro Switch | ||
Terminal Type Screw | ||
Switch Contact Current 20A | ||
Contact Configuration SPDT | ||
Operating Force 3.42N | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
Microswitch Type General Purpose Switch | ||
Contact AC Voltage 250V ac | ||
Mechanical Life 1000000Operations | ||
Hazardous Area Certification No | ||
Series GP | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN
ZF Microswitch
The ZF GP series Microswitch has a roller actuator and a contact rating of 15A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating forces is 3.42N
Screw terminal type termination
Ultra small movement differential
Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic
Certifications
UL 1054
