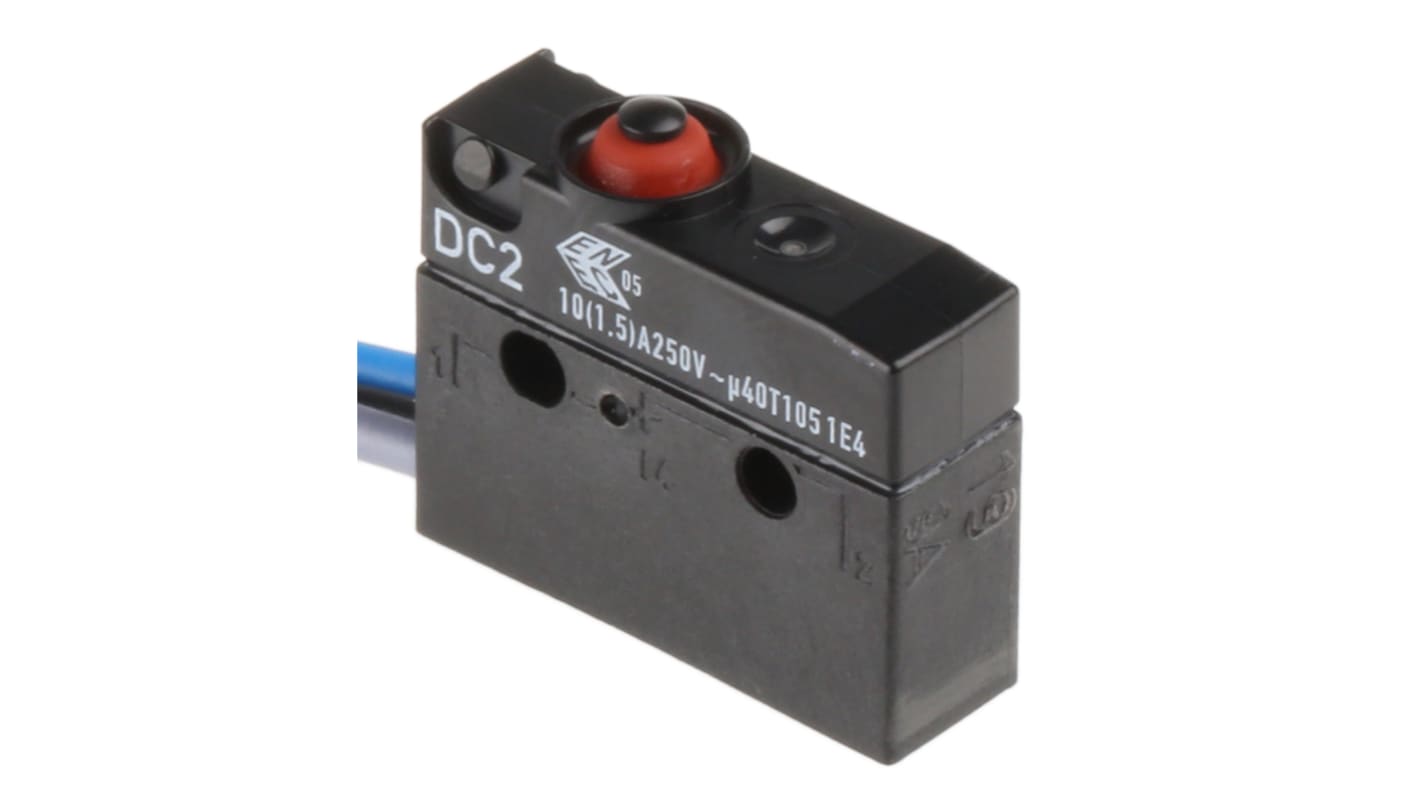

ZF Button Micro Switch, Pre-Wired Terminal, 10.1 A, 250 V ac, SPDT, IP6K7
- RS Stock No.:
- 517-545
- Mfr. Part No.:
- DC2C-C3AA
- Manufacturer:
- ZF
Subtotal (1 unit)*
MYR60.82
FREE delivery for orders over RM 500.00
In Stock
- 179 unit(s) ready to ship from another location
- Plus 824 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR60.82 |
*price indicative
- RS Stock No.:
- 517-545
- Mfr. Part No.:
- DC2C-C3AA
- Manufacturer:
- ZF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Actuator Type | Button | |
| Product Type | Micro Switch | |
| Terminal Type | Pre-Wired | |
| Switch Contact Current | 10.1 A | |
| Contact Configuration | SPDT | |
| Housing Material | Polyethylene Terephthalate, Polybutylene Terephthalate | |
| IP Rating | IP6K7 | |
| Operating Force | 3.33N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Microswitch Type | DC Subminiature | |
| Contact AC Voltage | 250V ac | |
| Hazardous Area Certification | No | |
| Mechanical Life | 1000000Operations | |
| Series | DC | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Actuator Type Button | ||
Product Type Micro Switch | ||
Terminal Type Pre-Wired | ||
Switch Contact Current 10.1 A | ||
Contact Configuration SPDT | ||
Housing Material Polyethylene Terephthalate, Polybutylene Terephthalate | ||
IP Rating IP6K7 | ||
Operating Force 3.33N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Microswitch Type DC Subminiature | ||
Contact AC Voltage 250V ac | ||
Hazardous Area Certification No | ||
Mechanical Life 1000000Operations | ||
Series DC | ||
Standards/Approvals RoHS | ||
ZF Subminiature Microswitch
The ZF DC series subminiature Microswitch has a spherical-head button actuator and a contact rating of 10A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating force is 3.33N
Operating temperature ranges between -40°C and 105°C
Housing material is PET/PBT
Wired leads type termination
Mechanical life is more than 1x106 operations
Certifications
IP67 rated
ENEC certified
UL approved
KEMA certified
