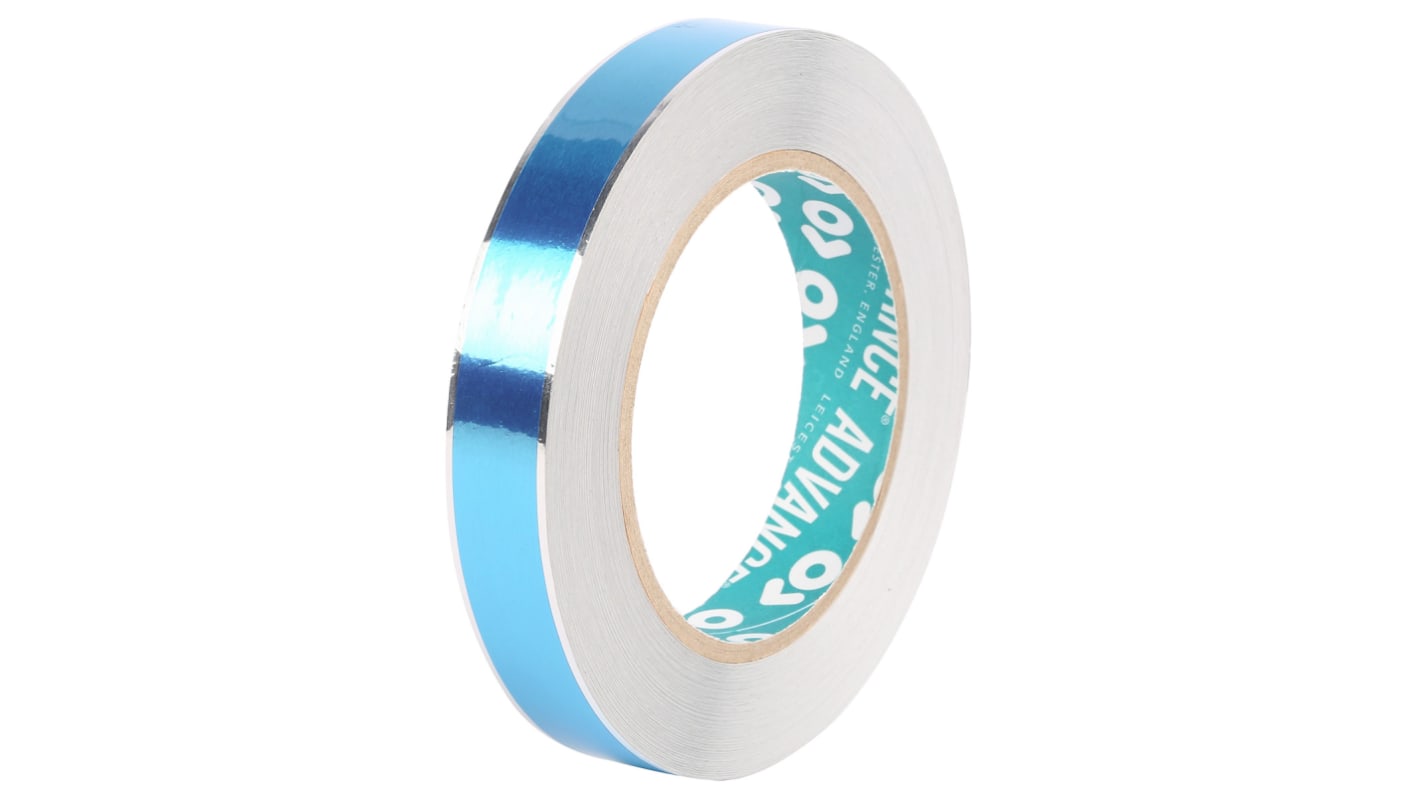

Advance Tapes AT541 Conductive Metallic Tape, 25mm x 33m
- RS Stock No.:
- 542-5555
- Manufacturer:
- Advance Tapes
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Reel of 1
MYR543.22
| Reel(s) | Per Reel |
| 1 - 5 | MYR543.22 |
| 6 - 14 | MYR535.63 |
| 15 + | MYR524.93 |
- RS Stock No.:
- 542-5555
- Manufacturer:
- Advance Tapes
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IE
Product Details
AT541 40μ Aluminium Foil Masking Tape
The Advance Tapes AT541 40 μ aluminium foil masking tapes are coated with a conductive acrylic adhesive, and laminated with a self adhesive removable polyester masking tape. When applied before coating, the masked area of the tape is exposed to reveal a clean and electrically conductive layer.
Features and Benefits
Polyester masking tape withstands oven temperatures up to 200°C
Masking tape easily removed leaving no residue
Provides a conductive pathway through the panel
Tested in accordance with ASTM D-1000 latest issue, BS EN 60454 - Part 2 test methods (Formerly VDE 0340, BS 3924).
Tested and meets military specification MIL – T – 47012
Foil construction is tested in-house and conforms to the Flame retardant requirement part only of UL510
Masking tape easily removed leaving no residue
Provides a conductive pathway through the panel
Tested in accordance with ASTM D-1000 latest issue, BS EN 60454 - Part 2 test methods (Formerly VDE 0340, BS 3924).
Tested and meets military specification MIL – T – 47012
Foil construction is tested in-house and conforms to the Flame retardant requirement part only of UL510
Note
Always think about the galvanic compatibility before using the AT521 tapes.
Refer to datasheet for more information on the tapes.
Refer to datasheet for more information on the tapes.
EMI/RFI Shielding Tapes
When using these tapes galvanic compatibility should be taken into account.
Specifications
Attribute | Value |
|---|---|
| Tape Type | Aluminium Tape |
| Total Thickness | 0.07mm |
| Foil Thickness | 0.04mm |
| Width | 25mm |
| Length | 33m |
| Conductivity | Conductive |
| Adhesion Strength | 4.5 N/cm |
| Adhesive Material | Acrylic |
| Tensile Strength | 25N/cm |
| Maximum Temperature Resistance | +155°C |
| Complies with EN Legislation | BS EN 60454 - Part 2 |
| Minimum Temperature Resistance | -20°C |
| Model Number | AT541 |
