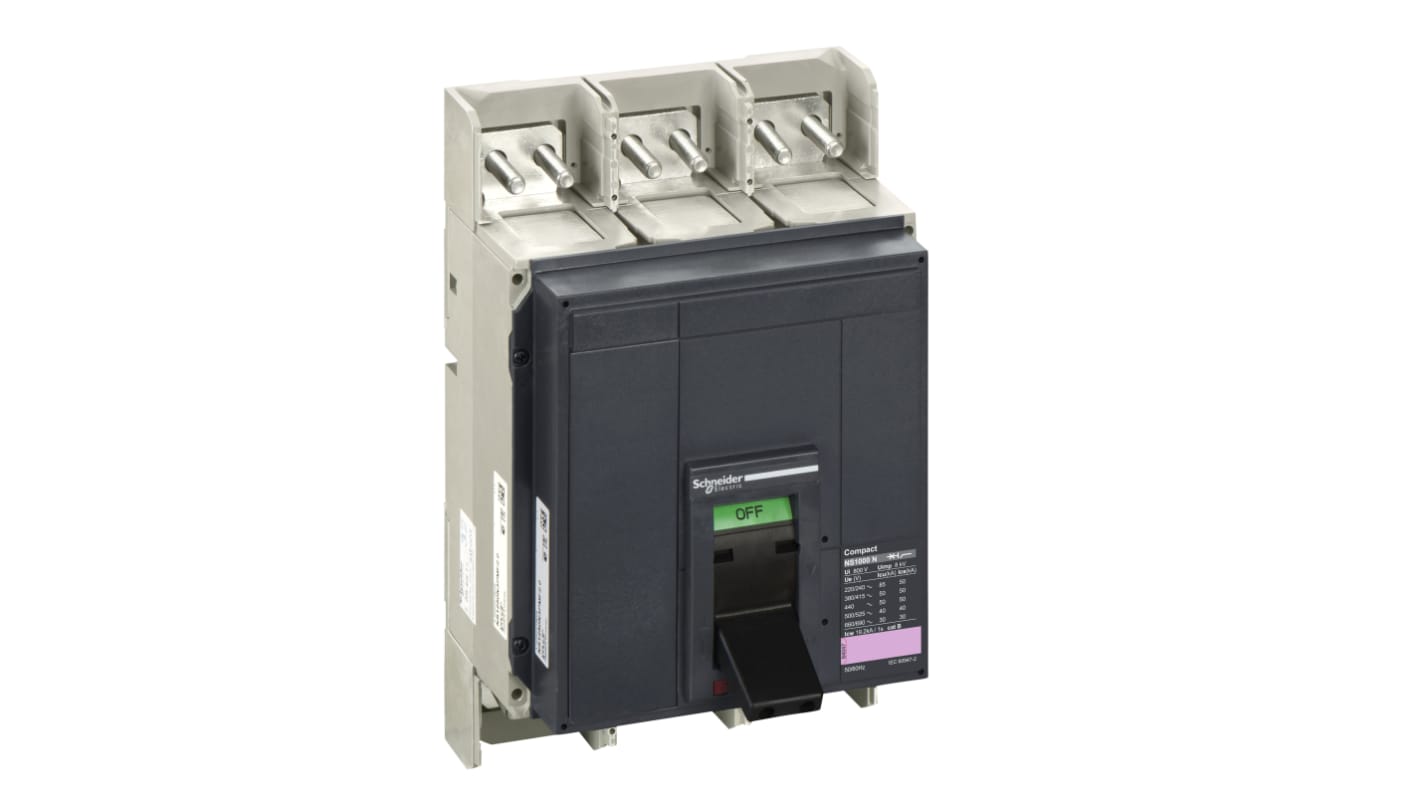

Schneider Electric, ComPact, Compact Molded Case Circuit Breaker 3-Pole 1 kA, Breaking Capacity 150 kA, Fixed

RS Stock No.:: 247-1778
Mfr. Part No.:: 33342
Manufacturer:: Schneider Electric

Schneider Electric, ComPact, Compact Molded Case Circuit Breaker 3-Pole 1 kA, Breaking Capacity 150 kA, Fixed

Subtotal (1 unit)*

MYR24,774.49

FREE delivery for orders over RM 500.00

Temporarily out of stock

Shipping from 19 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR24,774.49

*price indicative

RS Stock No.:: 247-1778
Mfr. Part No.:: 33342
Manufacturer:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Molded Case Circuit Breaker
	Range	ComPact
	Series	Compact
	Number of Poles	3
	Current Rating	1 kA
	Breaking Capacity	150kA
	Rated AC Voltage	690 V ac
	Mount Type	Fixed
	Height	327mm
	Width	210 mm
	Depth	147mm
	Standards/Approvals	IEC 60947-2

	Select all
	Brand Schneider Electric
	Product Type Molded Case Circuit Breaker
	Range ComPact
	Series Compact
	Number of Poles 3
	Current Rating 1 kA
	Breaking Capacity 150kA
	Rated AC Voltage 690 V ac
	Mount Type Fixed
	Height 327mm
	Width 210 mm
	Depth 147mm
	Standards/Approvals IEC 60947-2

Datasheet - 33342

COO (Country of Origin):: NL

The Schneider Electric Compact NS series circuit breaker basic frame has 3 poles. It is controlled via manually operated toggle switch. It has current rating of 1000 A.

IP degree of protection IP40 conforming to IEC 60529

Ambient air temperature for operation from -25 to 70 °C

Control type rotary handle toggle
