Units	Per Unit	Per Tube**
25 - 25	MYR3.805	MYR95.125
50 - 75	MYR3.73	MYR93.25
100 +	MYR3.656	MYR91.40

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Function	OR
	Mounting Type	Through Hole
	Number of Elements	4
	Number of Inputs per Gate	2
	Schmitt Trigger Input	No
	Package Type	PDIP
	Pin Count	14
	Logic Family	LS
	Maximum Operating Supply Voltage	5.25 V
	Maximum High Level Output Current	-0.4mA
	Maximum Propagation Delay Time @ Maximum CL	22 ns @ 5 V
	Minimum Operating Supply Voltage	4.75 V
	Maximum Low Level Output Current	8mA
	Minimum Operating Temperature	0 °C
	Dimensions	19.3 x 6.35 x 4.57mm
	Maximum Operating Temperature	+70 °C
	Height	4.57mm
	Propagation Delay Test Condition	15pF
	Length	19.3mm
	Width	6.35mm

	Select all
	Brand Texas Instruments
	Logic Function OR
	Mounting Type Through Hole
	Number of Elements 4
	Number of Inputs per Gate 2
	Schmitt Trigger Input No
	Package Type PDIP
	Pin Count 14
	Logic Family LS
	Maximum Operating Supply Voltage 5.25 V
	Maximum High Level Output Current -0.4mA
	Maximum Propagation Delay Time @ Maximum CL 22 ns @ 5 V
	Minimum Operating Supply Voltage 4.75 V
	Maximum Low Level Output Current 8mA
	Minimum Operating Temperature 0 °C
	Dimensions 19.3 x 6.35 x 4.57mm
	Maximum Operating Temperature +70 °C
	Height 4.57mm
	Propagation Delay Test Condition 15pF
	Length 19.3mm
	Width 6.35mm

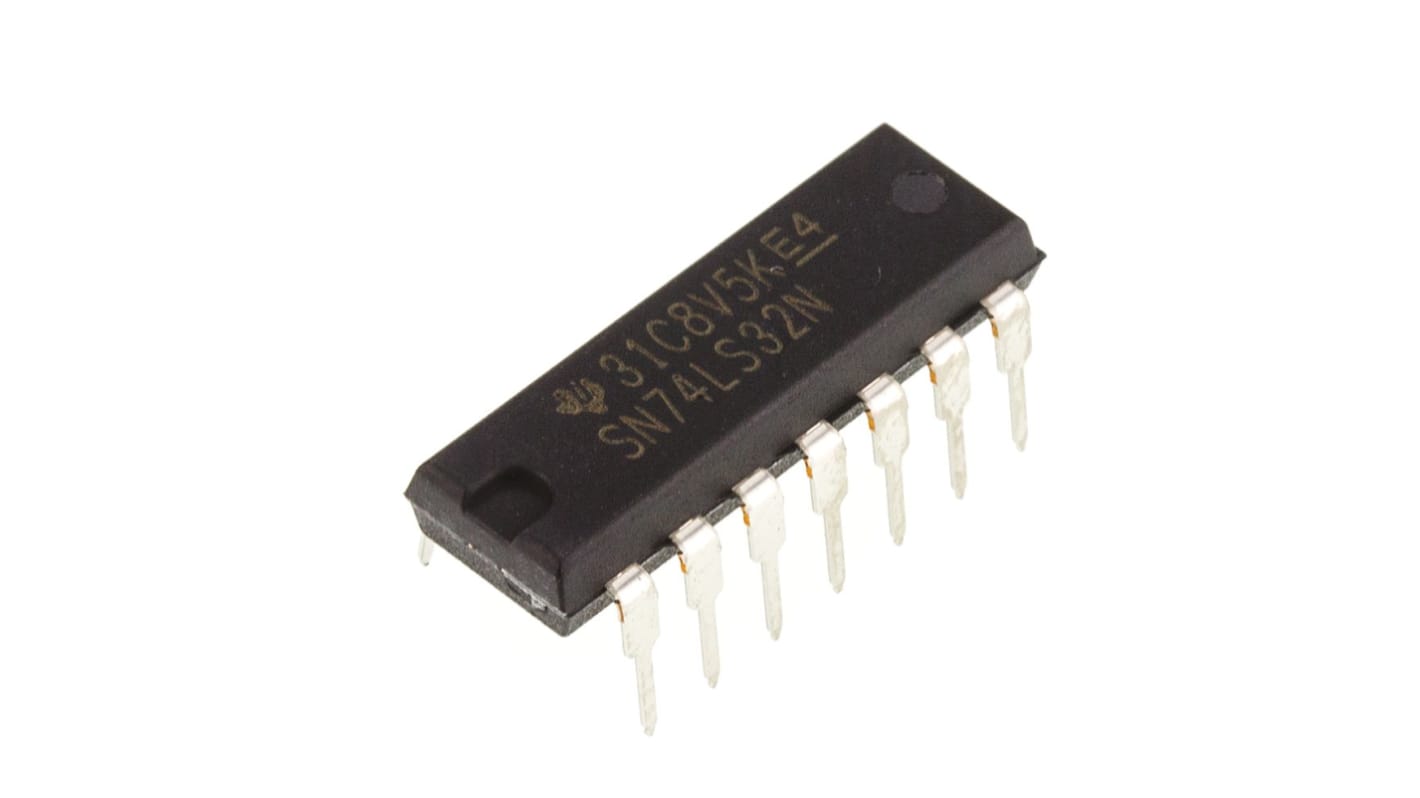

Texas Instruments SN74LS32N, Quad 2-Input OR Logic Gate, 14-Pin PDIP

FREE delivery for orders over MYR500.00

74LS Family Logic Gates, Texas Instruments
