Select all	Attribute	Value
	Brand	DiodesZetex
	Logic Function	Non-Inverting
	Mounting Type	Surface Mount
	Number of Elements	1
	Package Type	SOT-553
	Pin Count	5
	Logic Family	LVC
	Input Type	CMOS
	Maximum Operating Supply Voltage	5.5 V
	Maximum High Level Output Current	-32mA
	Maximum Propagation Delay Time @ Maximum CL	6 ns @ 2.7 V
	Minimum Operating Supply Voltage	1.65 V
	Maximum Low Level Output Current	32mA
	Height	0.62mm
	Output Type	Open Drain
	Maximum Operating Temperature	+85 °C
	Length	1.7mm
	Propagation Delay Test Condition	50pF
	Minimum Operating Temperature	-40 °C
	Dimensions	1.7 x 1.25 x 0.62mm
	Width	1.25mm

	Select all
	Brand DiodesZetex
	Logic Function Non-Inverting
	Mounting Type Surface Mount
	Number of Elements 1
	Package Type SOT-553
	Pin Count 5
	Logic Family LVC
	Input Type CMOS
	Maximum Operating Supply Voltage 5.5 V
	Maximum High Level Output Current -32mA
	Maximum Propagation Delay Time @ Maximum CL 6 ns @ 2.7 V
	Minimum Operating Supply Voltage 1.65 V
	Maximum Low Level Output Current 32mA
	Height 0.62mm
	Output Type Open Drain
	Maximum Operating Temperature +85 °C
	Length 1.7mm
	Propagation Delay Test Condition 50pF
	Minimum Operating Temperature -40 °C
	Dimensions 1.7 x 1.25 x 0.62mm
	Width 1.25mm

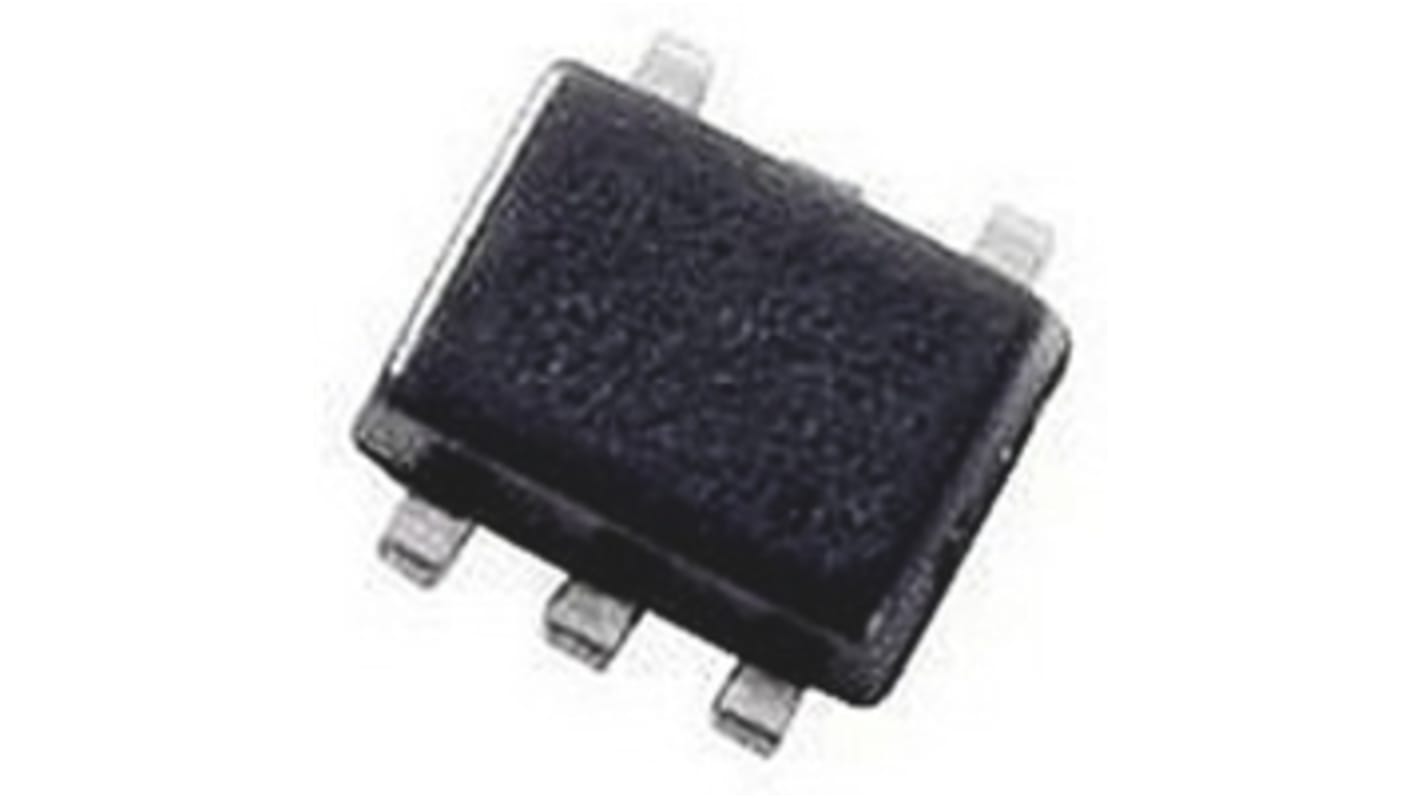

DiodesZetex 74LVC1G07Z-7 Non-Inverting Buffer, 5-Pin SOT-553

FREE delivery for orders over MYR500.00

74LVC1G Family, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
