Units	Per Unit	Per Tube**
25 - 25	MYR6.984	MYR174.60
50 - 75	MYR6.83	MYR170.75
100 +	MYR6.704	MYR167.60

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Function	NAND
	Mounting Type	Through Hole
	Number of Elements	4
	Number of Inputs per Gate	2
	Schmitt Trigger Input	No
	Package Type	PDIP
	Pin Count	14
	Logic Family	74
	Maximum Operating Supply Voltage	5.25 V
	Maximum High Level Output Current	-0.25mA
	Maximum Propagation Delay Time @ Maximum CL	22 ns @ 5 V
	Minimum Operating Supply Voltage	4.75 V
	Maximum Low Level Output Current	48mA
	Width	6.35mm
	Dimensions	19.3 x 6.35 x 4.57mm
	Propagation Delay Test Condition	45pF
	Output Type	Open Collector
	Maximum Operating Temperature	+70 °C
	Length	19.3mm
	Height	4.57mm
	Minimum Operating Temperature	0 °C

	Select all
	Brand Texas Instruments
	Logic Function NAND
	Mounting Type Through Hole
	Number of Elements 4
	Number of Inputs per Gate 2
	Schmitt Trigger Input No
	Package Type PDIP
	Pin Count 14
	Logic Family 74
	Maximum Operating Supply Voltage 5.25 V
	Maximum High Level Output Current -0.25mA
	Maximum Propagation Delay Time @ Maximum CL 22 ns @ 5 V
	Minimum Operating Supply Voltage 4.75 V
	Maximum Low Level Output Current 48mA
	Width 6.35mm
	Dimensions 19.3 x 6.35 x 4.57mm
	Propagation Delay Test Condition 45pF
	Output Type Open Collector
	Maximum Operating Temperature +70 °C
	Length 19.3mm
	Height 4.57mm
	Minimum Operating Temperature 0 °C

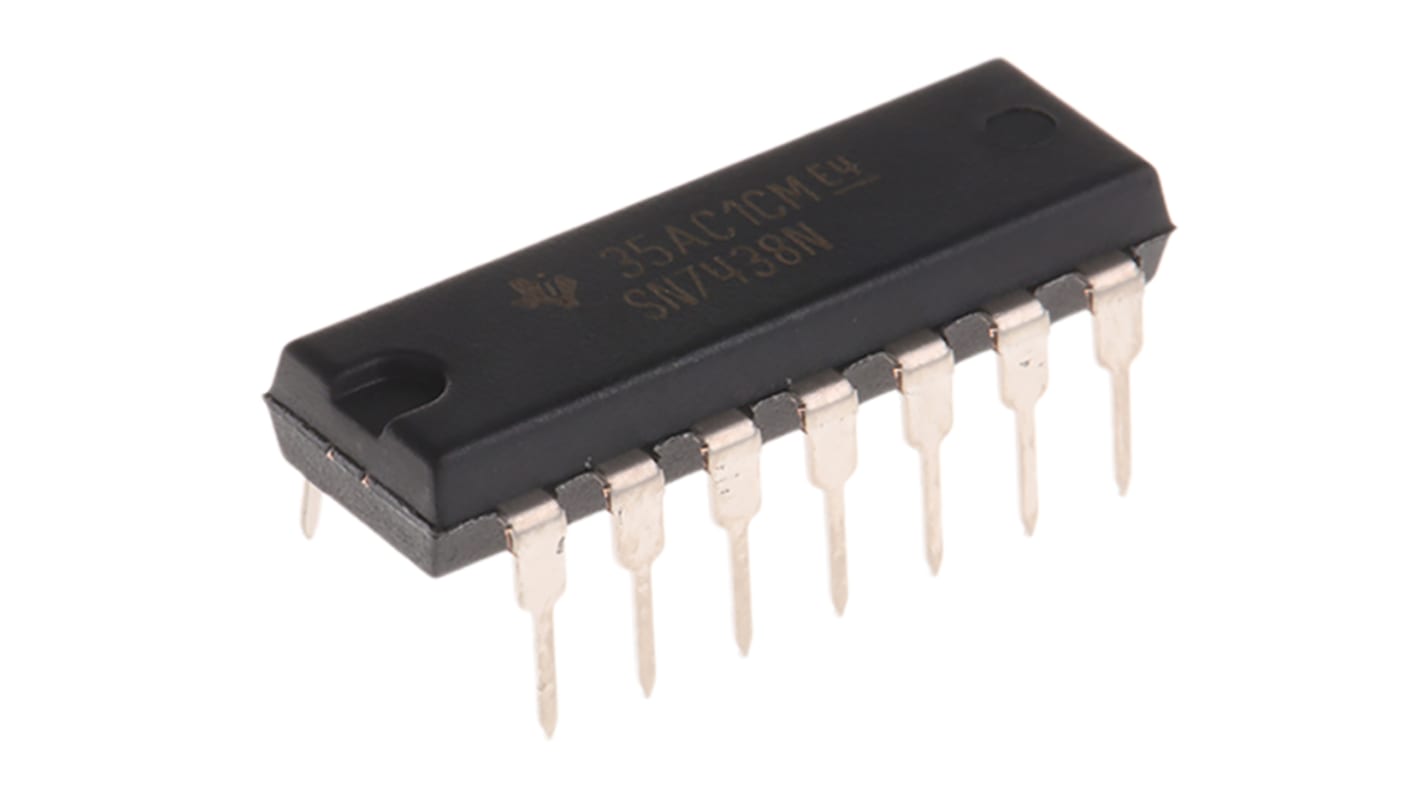

Texas Instruments SN7438N, Quad 2-Input NAND Logic Gate, 14-Pin PDIP
