    Johnson Electric Linear Solenoid, 12.8 V dc, 7.6N

    Johnson Electric
    RS Stock No.:
    173-6489
    Mfr. Part No.:
    174534-035
    Manufacturer:
    Johnson Electric
    View all Linear Solenoids
    14 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each

    MYR350.81

    unitsPer Unit
    1 +MYR350.81
    RS Stock No.:
    173-6489
    Mfr. Part No.:
    174534-035
    Manufacturer:
    Johnson Electric

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    US

    Product Details

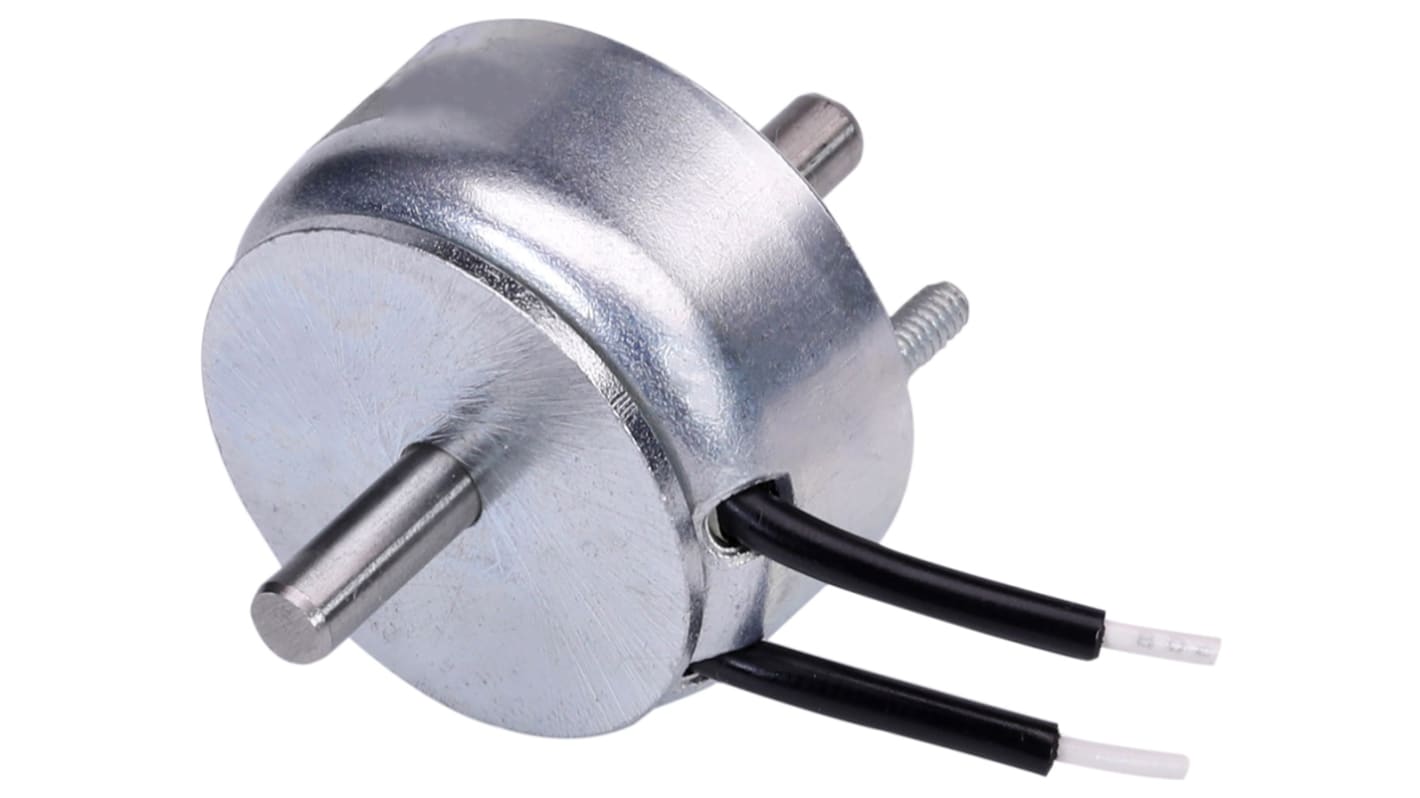

    Johnson Electric Linear Solenoid Actuator


    The Johnson electric linear solenoid actuator is a low profile linear DC solenoid. It offers an extremely compact design that optimizes the magnetic flux path for maximum force versus stroke characteristics. This product is an ideal choice for applications in which consistent and reliable operation is critical. The construction of the plunger assembly provides an auxiliary flux path which permits a significant increase in force.

    Features and Benefits


    • Coil resistance 14.95ohm
    • Dielectric strength is 1000 VRMS
    • Forces to 845N
    • Holding force is 7.6N
    • Long life operation
    • Power consumption is 4.5W
    • Reliable
    • Stroke length up to 18mm
    • Supply voltage is 12.8Vdc
    • Wire size is 35AWG

    Applications


    • Instrumentation
    • Packaging instruments
    • Pumps
    • Testing equipment

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Specifications

    AttributeValue
    Power Consumption4.5 W
    Supply Voltage12.8 V dc
    Holding Force7.6N
    Plunger Diameter3.17mm
    Product Height50.8mm
    Product Width25.4 Dia.mm
    Coil Resistance14.95Ω
    Wire Size35AWG
