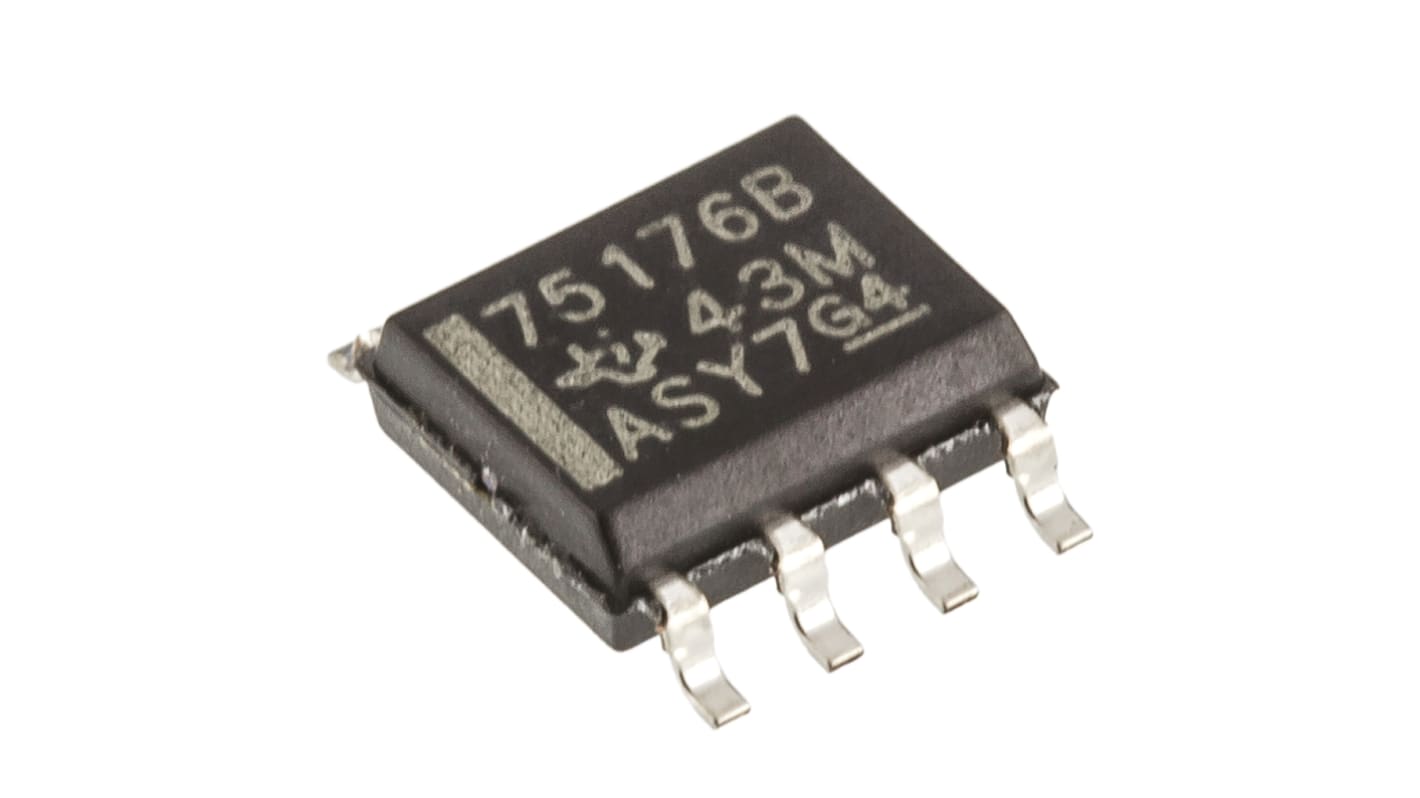

Texas Instruments SN75176BD 1-Channel Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC

This image is representative of the product range

View all Line Interface ICs
Bulk discount available

Subtotal (1 pack of 10 units)*

MYR48.03

Add to Basket
Select or type quantity
Last RS stock
  • 470 left, ready to ship from another location
  • Final 20,310 unit(s) shipping from 26 February 2026
Units
Per Unit
Per Pack*
10 - 10MYR4.803MYR48.03
20 - 90MYR4.659MYR46.59
100 +MYR4.518MYR45.18

*price indicative

Packaging Options:
RS Stock No.:
517-2346
Mfr. Part No.:
SN75176BD
Manufacturer:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Logic Family

SN75

Product Type

Line Transceiver

Logic Function

Bus Transceiver

Number of Channels

1

IC Type

Line Transceiver IC

Input Type

Differential

Output Type

Differential

Polarity

Non-Inverting

Mount Type

Surface

Package Type

SOIC

Pin Count

8

Minimum Supply Voltage

4.75V

Maximum High Level Output Current

-60mA

Maximum Supply Voltage

5.25V

Maximum Propagation Delay Time @ CL

35ns

Minimum Operating Temperature

0°C

Maximum Low Level Output Current

60mA

Maximum Operating Temperature

70°C

Series

SN75176B

Standards/Approvals

No

Length

5mm

Height

1.75mm

Width

3.98 mm

Supply Current

70mA

Automotive Standard

No

RS-485 Line Drivers and Receivers, High Speed, Texas Instruments


A range of High Speed RS-485 Line Drivers, Receivers and Transceivers from Texas Instruments with data rates of 10 Mbit/s or over.

RS-485 Line Drivers and Receivers
