Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	LS
	Logic Function	Buffer, Driver
	Number of Channels per Chip	6
	IC Type	Buffer & Line Driver IC
	Input Type	Single Ended
	Output Type	Open Collector
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SOIC
	Maximum Operating Temperature	+70 °C
	Pin Count	14
	Minimum Operating Temperature	0 °C
	Maximum High Level Output Current	-0.25mA
	Maximum Low Level Output Current	40mA
	Maximum Propagation Delay Time @ Maximum CL	30 ns @ 5 V
	Dimensions	8.65 x 3.91 x 1.58mm
	Minimum Operating Supply Voltage	4.75 V
	Maximum Operating Supply Voltage	5.25 V
	Propagation Delay Test Condition	15pF

	Select all
	Brand Texas Instruments
	Logic Family LS
	Logic Function Buffer, Driver
	Number of Channels per Chip 6
	IC Type Buffer & Line Driver IC
	Input Type Single Ended
	Output Type Open Collector
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SOIC
	Maximum Operating Temperature +70 °C
	Pin Count 14
	Minimum Operating Temperature 0 °C
	Maximum High Level Output Current -0.25mA
	Maximum Low Level Output Current 40mA
	Maximum Propagation Delay Time @ Maximum CL 30 ns @ 5 V
	Dimensions 8.65 x 3.91 x 1.58mm
	Minimum Operating Supply Voltage 4.75 V
	Maximum Operating Supply Voltage 5.25 V
	Propagation Delay Test Condition 15pF

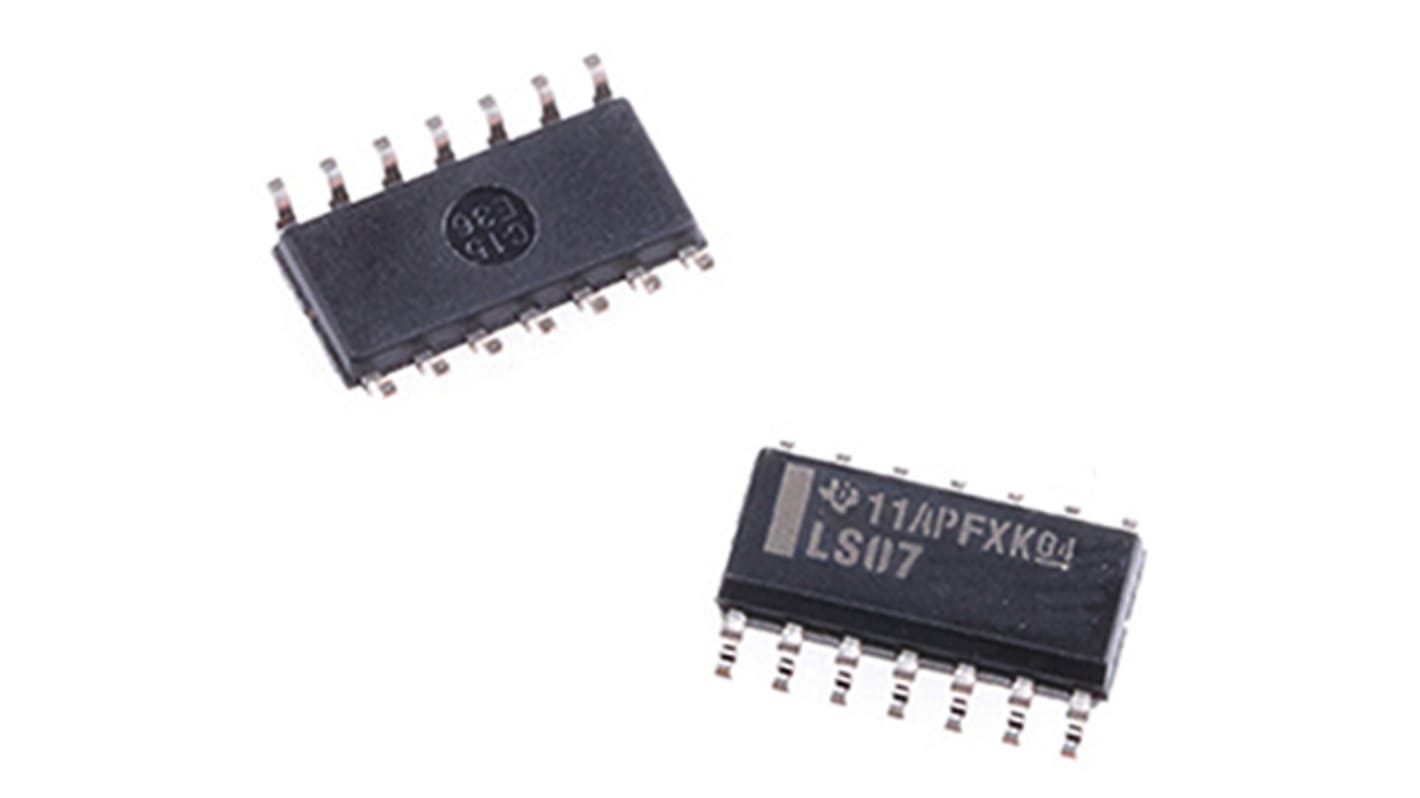

Texas Instruments SN74LS07D Hex-Channel Buffer & Line Driver, Open Collector, 14-Pin SOIC

74LS Family Inverters & Buffers, Texas Instruments

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
