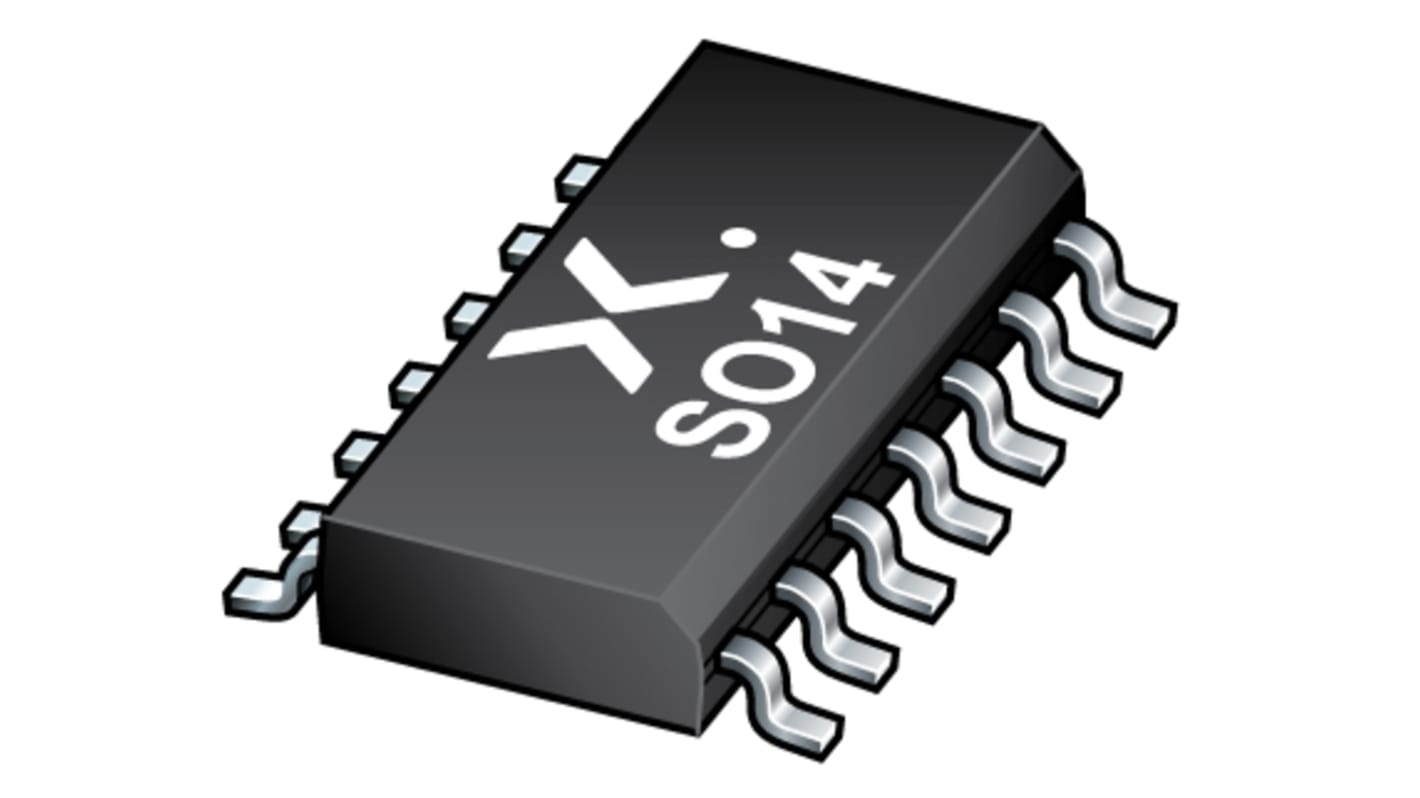

Nexperia HEF4081BT,653 4-Channel Buffer & Line Driver, Buffer, 14-Pin SO-16
- RS Stock No.:
- 170-8014
- Mfr. Part No.:
- HEF4081BT,653
- Manufacturer:
- Nexperia
Subtotal (1 reel of 2500 units)*
MYR2,162.50
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 2500 + | MYR0.865 | MYR2,162.50 |
*price indicative
- RS Stock No.:
- 170-8014
- Mfr. Part No.:
- HEF4081BT,653
- Manufacturer:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Family | HEF | |
| Product Type | Buffer & Line Driver | |
| Logic Function | AND | |
| IC Type | Logic Gate | |
| Number of Channels | 4 | |
| Input Type | CMOS | |
| Output Type | Buffer | |
| Mount Type | Surface | |
| Package Type | SO-16 | |
| Minimum Supply Voltage | 3V | |
| Pin Count | 14 | |
| Maximum High Level Output Current | -4.2mA | |
| Maximum Supply Voltage | 15V | |
| Maximum Propagation Delay Time @ CL | 20ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Low Level Output Current | 4.2mA | |
| Maximum Operating Temperature | 124°C | |
| Length | 8.75mm | |
| Standards/Approvals | No | |
| Series | HEF4081B | |
| Height | 1.75mm | |
| Width | 4 mm | |
| Supply Current | 30μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Family HEF | ||
Product Type Buffer & Line Driver | ||
Logic Function AND | ||
IC Type Logic Gate | ||
Number of Channels 4 | ||
Input Type CMOS | ||
Output Type Buffer | ||
Mount Type Surface | ||
Package Type SO-16 | ||
Minimum Supply Voltage 3V | ||
Pin Count 14 | ||
Maximum High Level Output Current -4.2mA | ||
Maximum Supply Voltage 15V | ||
Maximum Propagation Delay Time @ CL 20ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Low Level Output Current 4.2mA | ||
Maximum Operating Temperature 124°C | ||
Length 8.75mm | ||
Standards/Approvals No | ||
Series HEF4081B | ||
Height 1.75mm | ||
Width 4 mm | ||
Supply Current 30μA | ||
Automotive Standard No | ||
The HEF4081B is a quad 2-input AND gate. The outputs are fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features and benefits
Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Key applications
Cell phone
Computing
STB
LCD TV
Industrial controllers
