onsemi 8-Channel Buffer & Line Driver, 3 State, Inverting, 20-Pin SOIC
- RS Stock No.:
- 166-2767
- Mfr. Part No.:
- MM74HC541WMX
- Manufacturer:
- onsemi

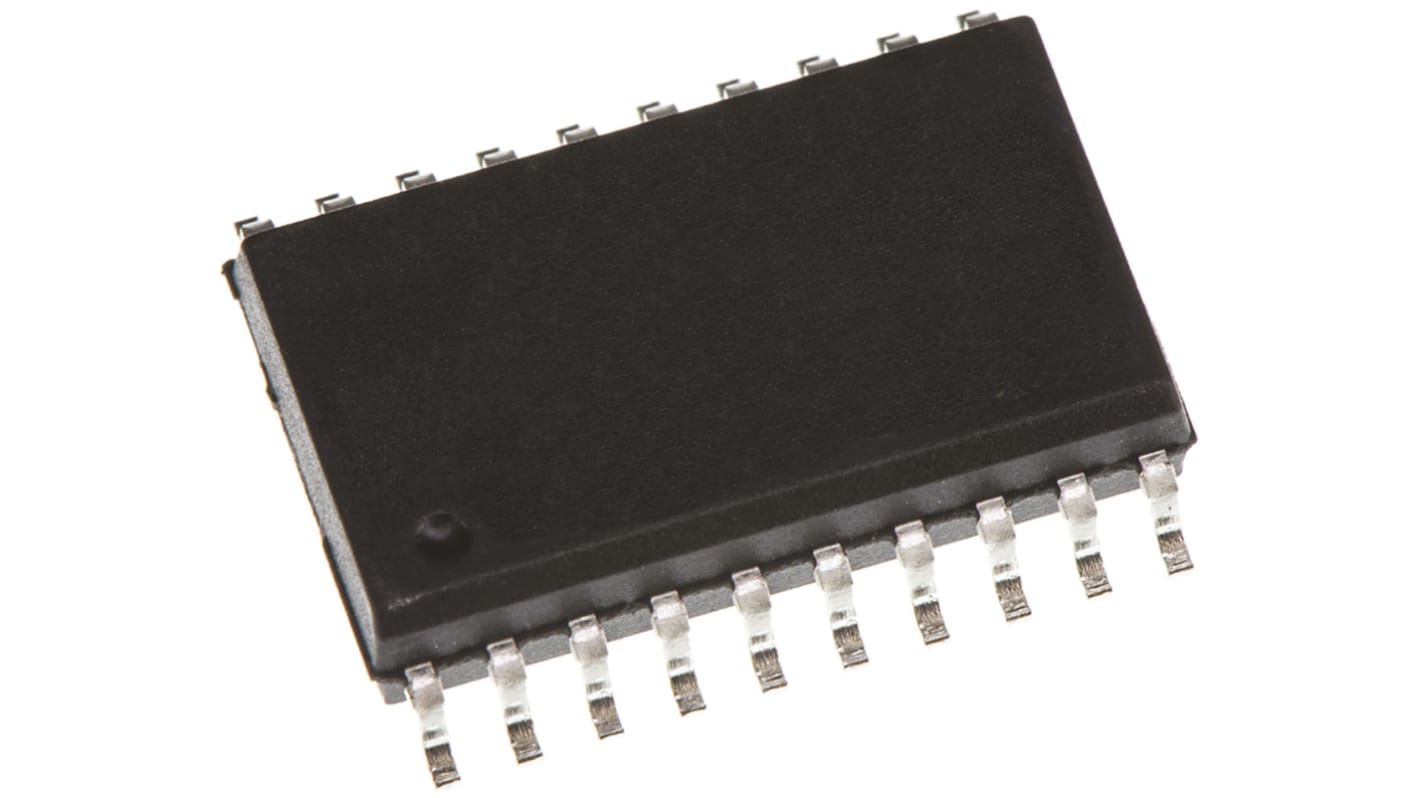

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 166-2767
- Mfr. Part No.:
- MM74HC541WMX
- Manufacturer:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Family | 74HC | |
| Product Type | Buffer & Line Driver | |
| Logic Function | Buffer | |
| IC Type | Buffer & Line Driver IC | |
| Number of Channels | 8 | |
| Input Type | LS-TTL | |
| Output Type | 3 State | |
| Polarity | Inverting | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Minimum Supply Voltage | 2V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 6V | |
| Maximum High Level Output Current | 7.8mA | |
| Maximum Low Level Output Current | 7.8mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 246ns | |
| Maximum Operating Temperature | 85°C | |
| Height | 2.6mm | |
| Length | 13mm | |
| Standards/Approvals | No | |
| Width | 7.5 mm | |
| Automotive Standard | No | |
| Supply Current | 70mA | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Logic Family 74HC | ||
Product Type Buffer & Line Driver | ||
Logic Function Buffer | ||
IC Type Buffer & Line Driver IC | ||
Number of Channels 8 | ||
Input Type LS-TTL | ||
Output Type 3 State | ||
Polarity Inverting | ||
Mount Type Surface | ||
Package Type SOIC | ||
Minimum Supply Voltage 2V | ||
Pin Count 20 | ||
Maximum Supply Voltage 6V | ||
Maximum High Level Output Current 7.8mA | ||
Maximum Low Level Output Current 7.8mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 246ns | ||
Maximum Operating Temperature 85°C | ||
Height 2.6mm | ||
Length 13mm | ||
Standards/Approvals No | ||
Width 7.5 mm | ||
Automotive Standard No | ||
Supply Current 70mA | ||
RoHS Status: Exempt
74HC Family, Fairchild Semiconductor
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
