Texas Instruments 1-Channel Line Transceiver, Differential, Non-Inverting, 8-Pin PDIP

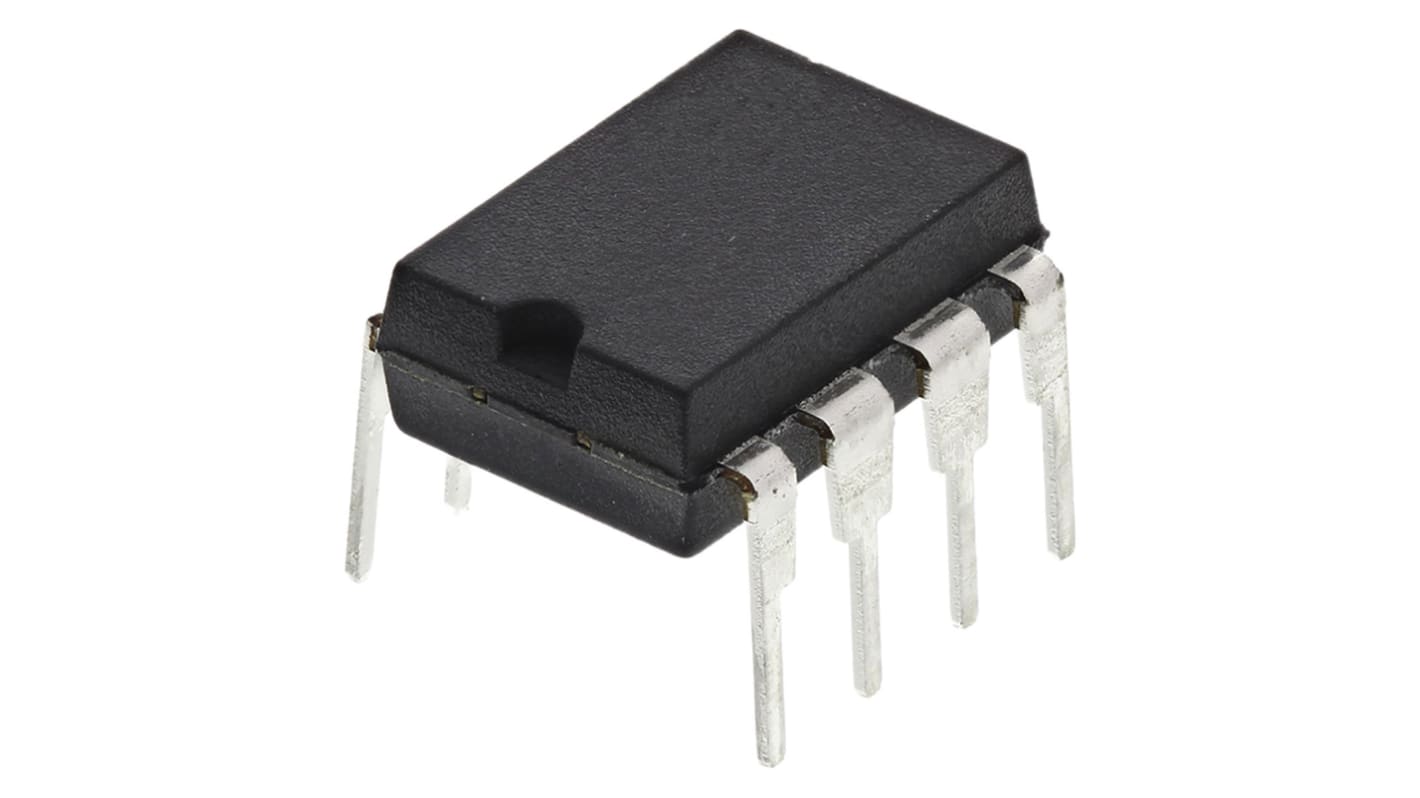

This image is representative of the product range

View all Line Interface ICs
Bulk discount available

Subtotal (1 tube of 50 units)*

MYR1,186.65

Add to Basket
Select or type quantity
In Stock
  • 150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Tube*
50 - 50MYR23.733MYR1,186.65
100 - 150MYR23.368MYR1,168.40
200 +MYR22.912MYR1,145.60

*price indicative

RS Stock No.:
121-8431
Mfr. Part No.:
SN75LBC184P
Manufacturer:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Product Type

Line Transceiver

Logic Family

SN75

Logic Function

Line Transceiver

Number of Channels

1

IC Type

Line Transceiver IC

Input Type

Differential

Output Type

Differential

Polarity

Non-Inverting

Mount Type

Through Hole

Package Type

PDIP

Minimum Supply Voltage

4.75V

Pin Count

8

Maximum Supply Voltage

5.25V

Maximum High Level Output Current

-60mA

Maximum Low Level Output Current

60mA

Minimum Operating Temperature

0°C

Maximum Propagation Delay Time @ CL

150ns

Maximum Operating Temperature

70°C

Standards/Approvals

No

Series

SN75LBC184

Length

10.16mm

Width

6.6 mm

Height

5.08mm

Automotive Standard

No

Supply Current

25mA

COO (Country of Origin):
MX

RS-485 Line Drivers and Receivers, Texas Instruments


RS-485 Line Drivers and Receivers
