Units	Per Unit
1 - 6	MYR4.73
7 - 12	MYR4.58
13 +	MYR4.40

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	ACT
	Logic Function	Buffer, Line Driver
	IC Type	Buffer & Line Driver IC
	Number of Channels per Chip	8
	Input Type	Single Ended
	Output Type	3 State
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SOIC
	Maximum Operating Temperature	+85 °C
	Pin Count	20
	Minimum Operating Temperature	-40 °C
	Maximum High Level Output Current	-24mA
	Maximum Low Level Output Current	24mA
	Maximum Propagation Delay Time @ Maximum CL	8.7 ns @ 5 V
	Dimensions	12.8 x 7.52 x 2.35mm
	Minimum Operating Supply Voltage	4.5 V
	Maximum Operating Supply Voltage	5.5 V
	Propagation Delay Test Condition	50pF

	Select all
	Brand Texas Instruments
	Logic Family ACT
	Logic Function Buffer, Line Driver
	IC Type Buffer & Line Driver IC
	Number of Channels per Chip 8
	Input Type Single Ended
	Output Type 3 State
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SOIC
	Maximum Operating Temperature +85 °C
	Pin Count 20
	Minimum Operating Temperature -40 °C
	Maximum High Level Output Current -24mA
	Maximum Low Level Output Current 24mA
	Maximum Propagation Delay Time @ Maximum CL 8.7 ns @ 5 V
	Dimensions 12.8 x 7.52 x 2.35mm
	Minimum Operating Supply Voltage 4.5 V
	Maximum Operating Supply Voltage 5.5 V
	Propagation Delay Test Condition 50pF

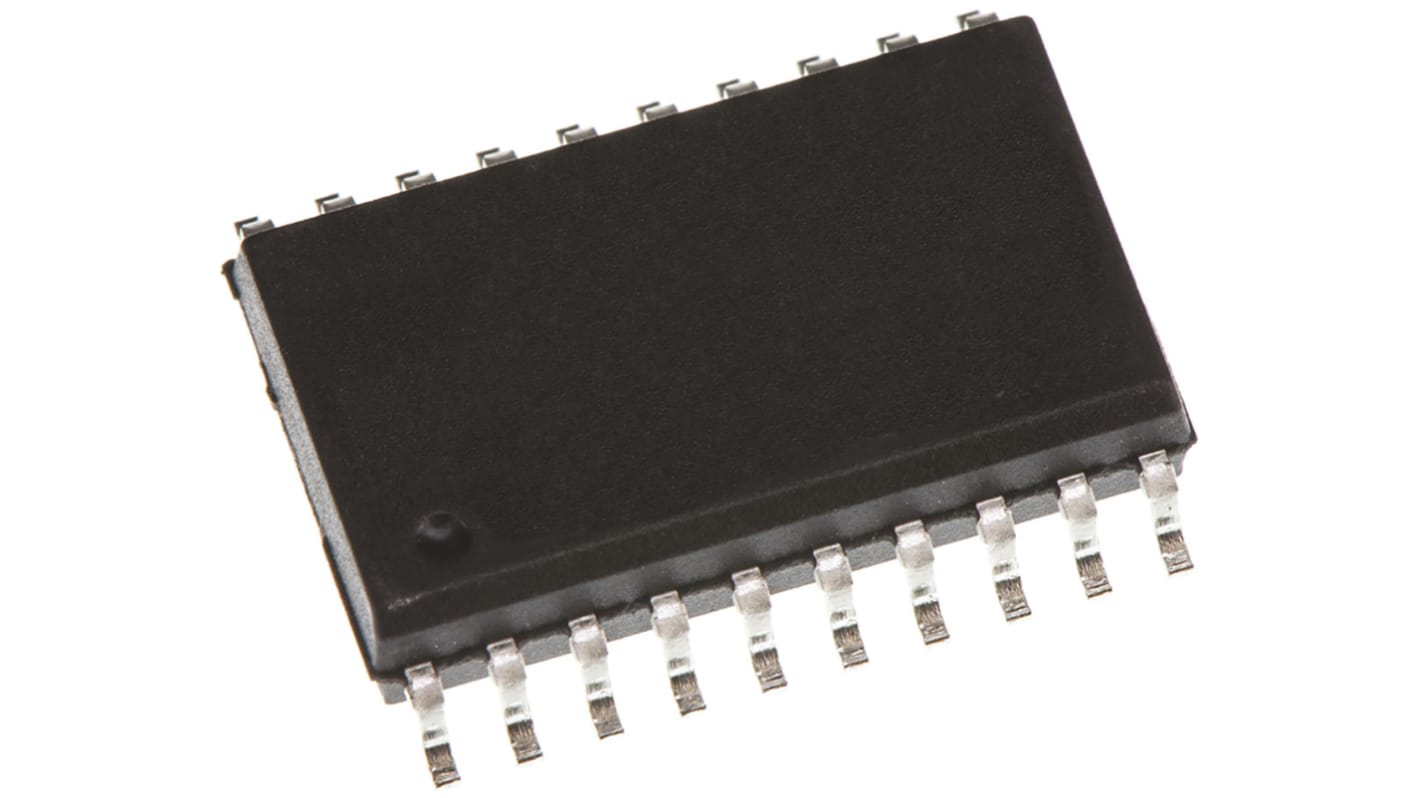

Texas Instruments CD74ACT244M Octal-Channel Buffer & Line Driver, 3-State, 20-Pin SOIC

FREE delivery for orders over MYR500.00

74ACT Family, Buffer/Driver, Texas Instruments
