Select all	Attribute	Value
	Brand	Omron
	Actuator Type	Hinge Lever
	Pole and Throw Configuration	SPDT
	Normal State Configuration	NO/NC
	IP Rating	IP00
	Maximum Current	15A
	Housing Material	Thermosetting Resin
	Maximum AC Voltage	500V
	Maximum DC Voltage	250V
	Series	Z-15G
	Action Type	Snap Action
	Length	49.2mm
	Minimum Operating Temperature	-25°C
	Depth	17.45mm
	Maximum Operating Temperature	+80°C
	Width	29.4mm
	Standards Met	CSA
	Mechanical Life	20000000Operations

	Select all
	Brand Omron
	Actuator Type Hinge Lever
	Pole and Throw Configuration SPDT
	Normal State Configuration NO/NC
	IP Rating IP00
	Maximum Current 15A
	Housing Material Thermosetting Resin
	Maximum AC Voltage 500V
	Maximum DC Voltage 250V
	Series Z-15G
	Action Type Snap Action
	Length 49.2mm
	Minimum Operating Temperature -25°C
	Depth 17.45mm
	Maximum Operating Temperature +80°C
	Width 29.4mm
	Standards Met CSA
	Mechanical Life 20000000Operations

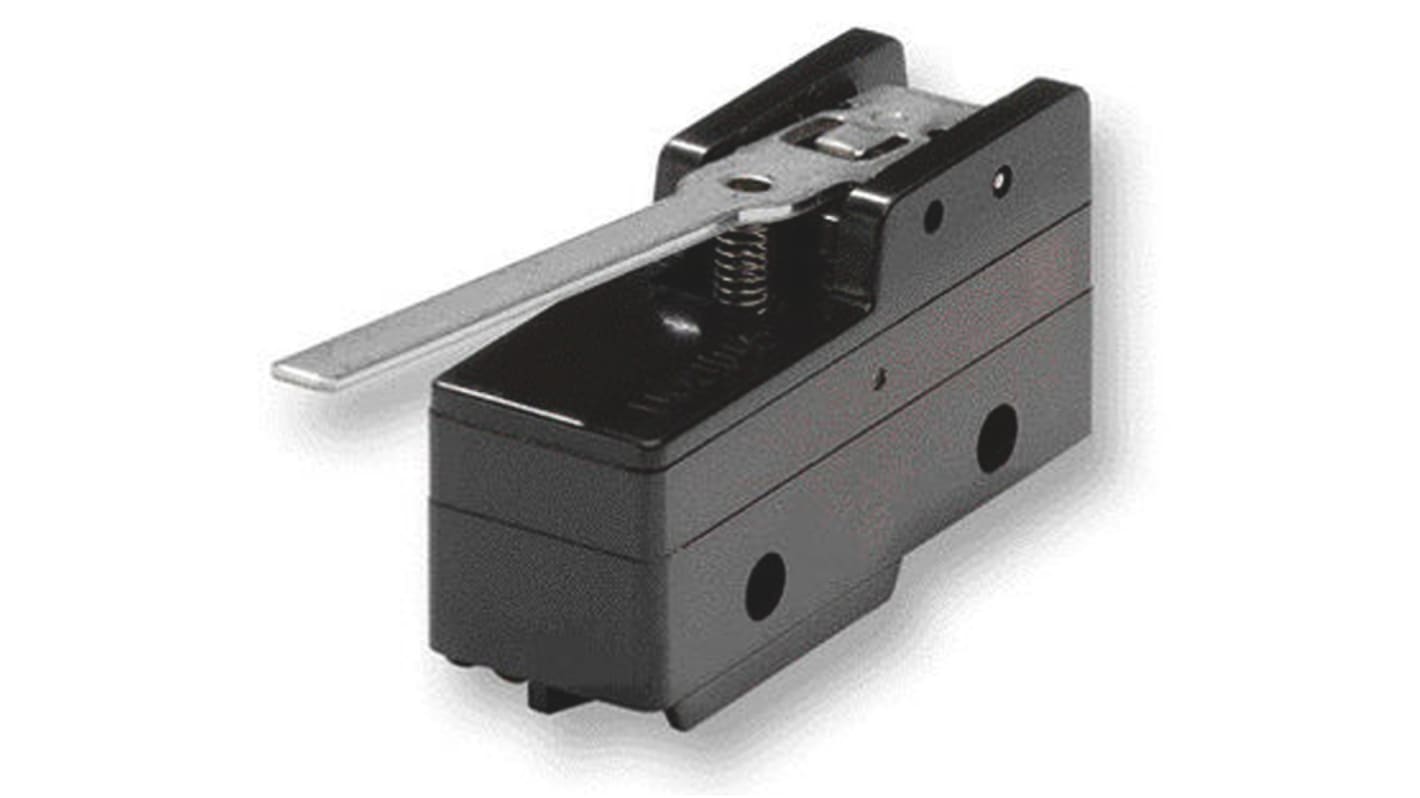

Omron Z-15G Series Hinge Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

FREE delivery for orders over MYR500.00

Z15 Series – Basic Switch

Approvals

Omron Z-15G Series Limit Switch, SPDT Pole and Throw Configuration, 15A Maximum Current - Z-15GW-B7-K

Features & Benefits

Applications

What current handling capabilities does this switch have in various applications?

How does the thermosetting resin housing benefit performance?

What is the significance of the snap action design in this device?
