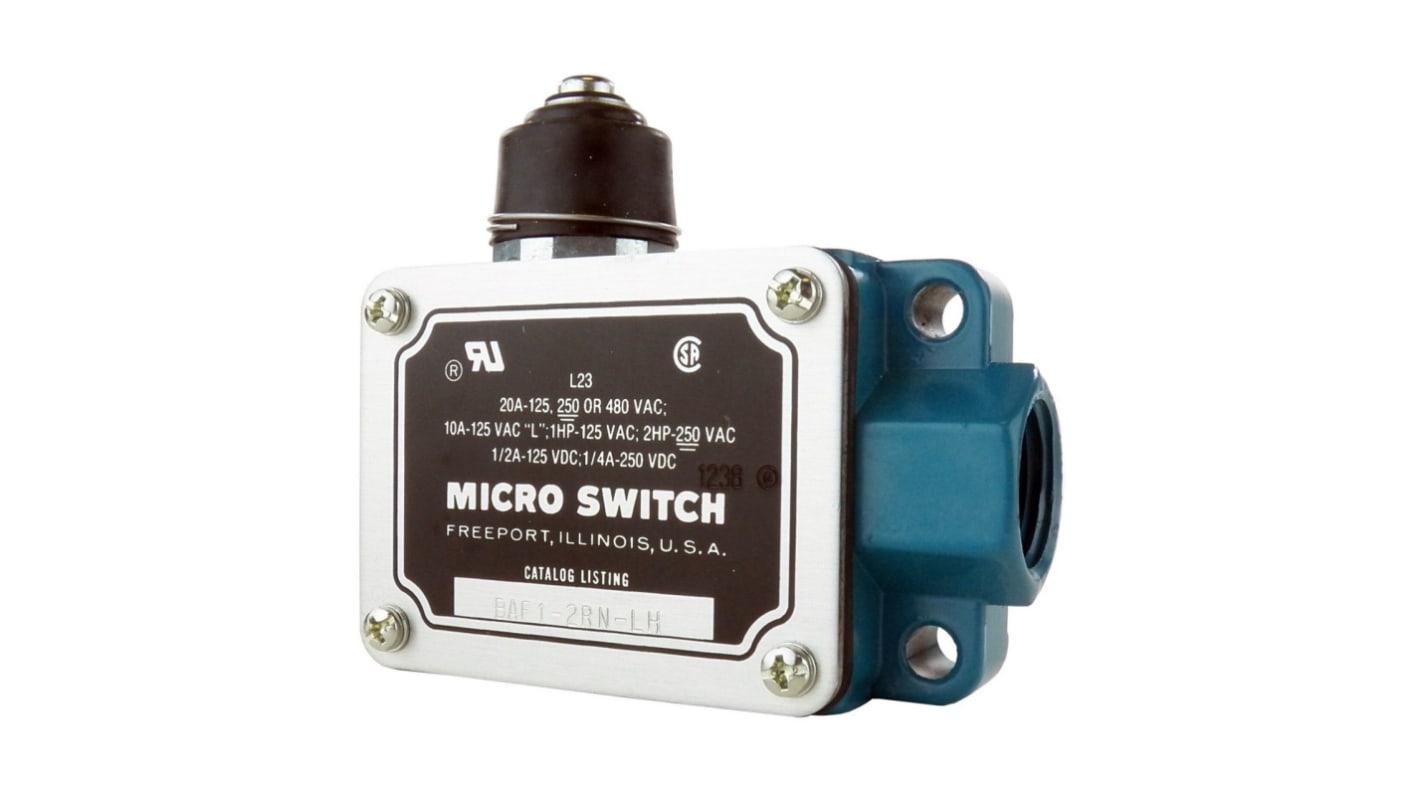

Honeywell Technologies BAF Series Top Plunger Limit Switch, SPDT, Die Cast Aluminium Housing, 480V ac, 20A
- RS Stock No.:
- 808-7443
- Mfr. Part No.:
- BAF1-2RN-LH
- Manufacturer:
- Honeywell Technologies
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR1,045.95
FREE delivery for orders over RM 150.00
In Stock
- Plus 19 unit(s) shipping from 12 October 2026
- Plus 24 unit(s) shipping from 29 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR1,045.95 |
| 5 + | MYR860.80 |
*price indicative
- RS Stock No.:
- 808-7443
- Mfr. Part No.:
- BAF1-2RN-LH
- Manufacturer:
- Honeywell Technologies
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell Technologies | |
| Product Type | Limit Switch | |
| Actuator Type | Top Plunger | |
| Contact Configuration | SPDT | |
| Housing Material | Die Cast Aluminium | |
| Contact Type | Snap Action | |
| Switching Current | 20A | |
| Series | BAF | |
| Switching AC Voltage | 480V ac | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -32°C | |
| Maximum Operating Temperature | 71°C | |
| Width | 54.8mm | |
| Standards/Approvals | UL, CSA | |
| Length | 101.6mm | |
| Depth | 33mm | |
| Hazardous Area Certification | No | |
| Operating Force | 11.2N | |
| Conduit Entry | 0.5 in to 14 NPT | |
| Mounting Orientation | Vertical | |
| Select all | ||
|---|---|---|
Brand Honeywell Technologies | ||
Product Type Limit Switch | ||
Actuator Type Top Plunger | ||
Contact Configuration SPDT | ||
Housing Material Die Cast Aluminium | ||
Contact Type Snap Action | ||
Switching Current 20A | ||
Series BAF | ||
Switching AC Voltage 480V ac | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -32°C | ||
Maximum Operating Temperature 71°C | ||
Width 54.8mm | ||
Standards/Approvals UL, CSA | ||
Length 101.6mm | ||
Depth 33mm | ||
Hazardous Area Certification No | ||
Operating Force 11.2N | ||
Conduit Entry 0.5 in to 14 NPT | ||
Mounting Orientation Vertical | ||
Honeywell Limit Switch, Top Plunger Actuator, 11.2N Maximum Operating Force - BAF Series - BAF1-2RN-LH
Looking to enhance the safety and efficiency of your industrial machinery? This limit switch from Honeywell will open or close your system's circuit when an object comes into contact with the plunger actuator, helping to prevent hazards in your work environment. The seal boot on the plunger keeps out debris to prevent contaminants from damaging your device. Its snap-action mechanism ensures quick switching for maximum safety.
Features & Benefits
• Removable cover plate lets you quickly rewire or make a switch replacement without needing to demount the unit
• Die-cast aluminium housing for resistance to corrosion and wear
• Wide operating temperature range between -32°C and +71°C for use in demanding conditions
Applications
• Packaging facilities
• Agriculture industry
• Construction equipment
What does an SPDT switch do?
An SPDT switch like this one controls up to two different circuits with the same input for enhanced efficiency.
BAF Medium Duty Limit Switches
The BAF limit switch series from Honeywell is designed for use within a medium duty environment. The elastomer boot on sealed actuator verions protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated "right" or "left," when looking at the nameplate.
Cast aluminium housing
Cover seal, captive cover screws
Momentary or maintained contact
Approvals
UL, CSA.
