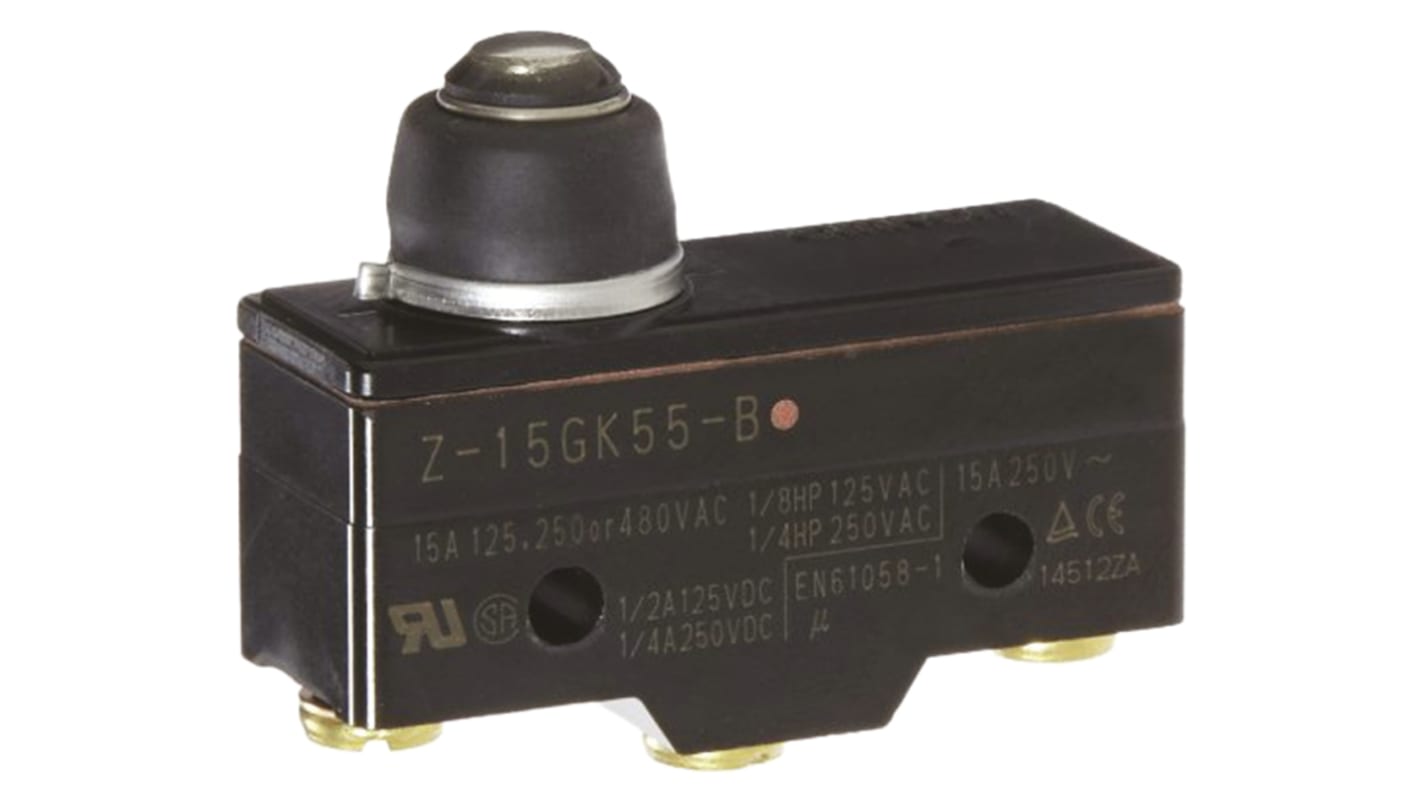

Omron Z Series Coil Spring Limit Switch, SPDT, IP62, Thermosetting Resin Housing, 500V ac, 15A

RS Stock No.:: 776-8514
Distrelec Article No.:: 301-62-951
Mfr. Part No.:: Z-15GK55
Manufacturer:: Omron

Omron Z Series Coil Spring Limit Switch, SPDT, IP62, Thermosetting Resin Housing, 500V ac, 15A

Subtotal (1 unit)*

MYR101.22

FREE delivery for orders over RM 500.00

In Stock

14 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR101.22

*price indicative

RS Stock No.:: 776-8514
Distrelec Article No.:: 301-62-951
Mfr. Part No.:: Z-15GK55
Manufacturer:: Omron

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Actuator Type	Coil Spring
	Product Type	Limit Switch
	Contact Configuration	SPDT
	IP Rating	IP62
	Housing Material	Thermosetting Resin
	Contact Type	Snap Action
	Switching Current	15A
	Terminal Type	Solder
	Series	Z
	Switching DC Voltage	250V dc
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	500V ac
	Maximum Operating Temperature	80°C
	Length	49.2mm
	Depth	17.45mm
	Standards/Approvals	CCC, CE, CSA, UL
	Width	37.4mm
	Hazardous Area Certification	NO
	Mechanical Life	20000000Operations
	Operating Force	5.3N
	Mounting Orientation	Multi Directional

	Select all
	Brand Omron
	Actuator Type Coil Spring
	Product Type Limit Switch
	Contact Configuration SPDT
	IP Rating IP62
	Housing Material Thermosetting Resin
	Contact Type Snap Action
	Switching Current 15A
	Terminal Type Solder
	Series Z
	Switching DC Voltage 250V dc
	Minimum Operating Temperature -25°C
	Switching AC Voltage 500V ac
	Maximum Operating Temperature 80°C
	Length 49.2mm
	Depth 17.45mm
	Standards/Approvals CCC, CE, CSA, UL
	Width 37.4mm
	Hazardous Area Certification NO
	Mechanical Life 20000000Operations
	Operating Force 5.3N
	Mounting Orientation Multi Directional

Z-Series Basic Switches Datasheet

Omron Series Z Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15GK55

This limit switch ensures dependable performance in automation tasks. Its sturdy design and versatility make it crucial for the control and safety of machinery. The snap action mechanism facilitates prompt response times, an essential feature in industrial applications where precision is important.

Features & Benefits

• SPDT configuration suitable for various Applications

• Snap action performance for quick actuation

• Made from thermosetting resin for durability

• IP62 rating to endure environmental conditions

• Handles high currents up to 15A for extensive use

• Mechanical lifespan of 20 million operations for durability

Applications

• Control of machinery in manufacturing settings

• Position sensing and control in robotics

• Safety interlock systems in automated processes

• Reliable operation in material handling equipment

How can I ensure proper installation?

Refer to the installation guidelines in the technical documentation to achieve optimal performance and safety.

What voltage ratings does it operate at?

It supports a maximum AC voltage of 500V and a maximum DC voltage of 250V.

Can it withstand extreme temperatures?

It operates effectively between -25°C and +80°C, accommodating a range of industrial environments.
