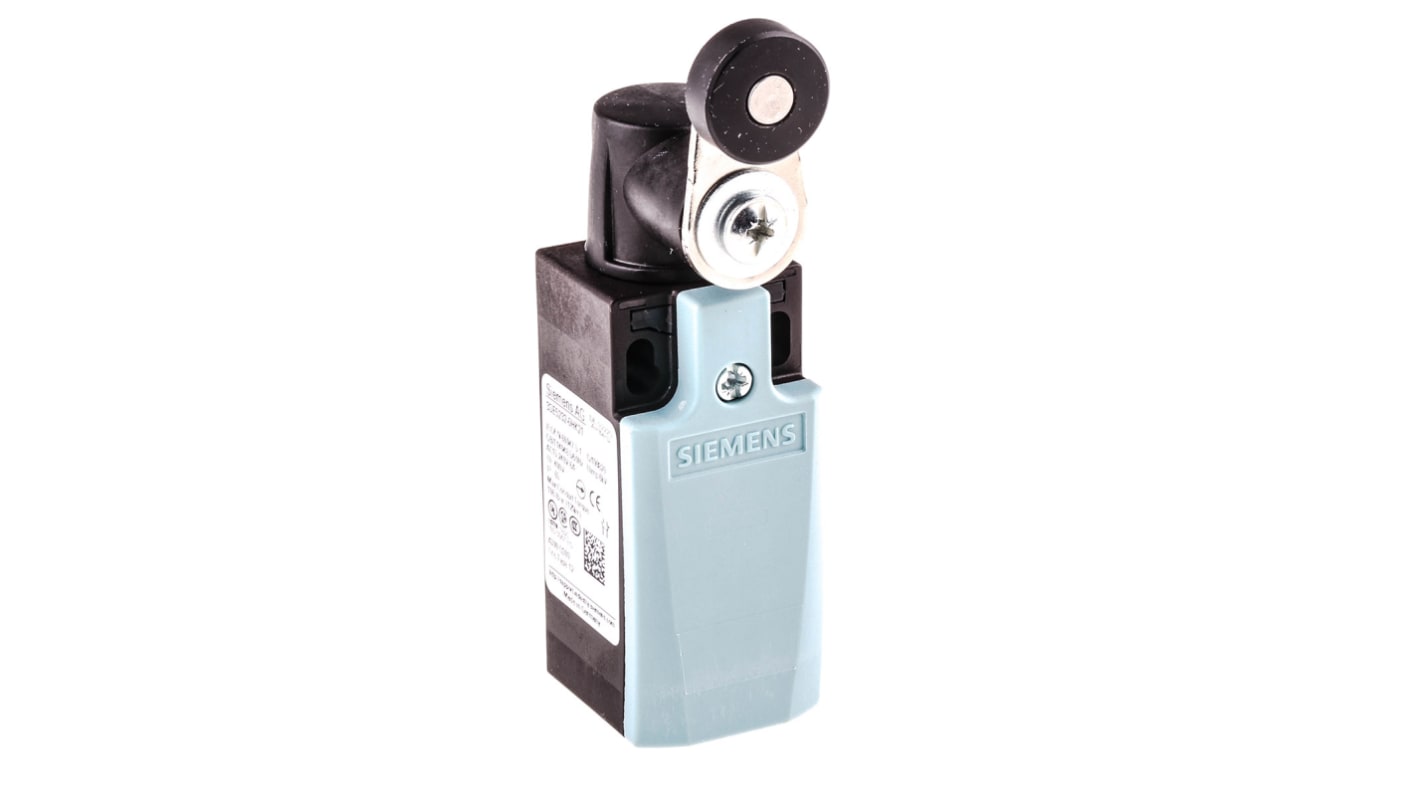

Siemens 3SE5 Series Roller Lever Interlock Switch, NO/NC, IP65, DPST, Plastic Housing
- RS Stock No.:
- 749-7666
- Mfr. Part No.:
- 3SE5232-0HK21
- Manufacturer:
- Siemens
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR218.36
| Units | Per Unit |
| 1 + | MYR218.36 |
- RS Stock No.:
- 749-7666
- Mfr. Part No.:
- 3SE5232-0HK21
- Manufacturer:
- Siemens
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Siemens Limit Switch
The Siemens 3SE5 series limit switch has a roller lever actuator and 2 contacts of a snap-action element. This switch has 1NO/1NC contact with screw connection and positive opening switching function. It has a voltage rating of 400V and a thermal current rating of 6A. Its standard design and function of the limit switch not only make it easy to select the right switch but also enable quick and easy installation, wiring and maintenance.
Features and Benefits
Easy replacement and mounting of actuator heads through plug mounting with a uniform interface
Integrated chlorinated rubber diaphragm (high functional safety in cold and aggressive environments)
Actuator heads can be rotated in 22.5° increments
Mounting time reduction up to 25% through rapid connection system for plastic enclosures
Built-in rounded plunger with 3mm over travel (total travel 9mm) for greater tolerance when switching
Minimum mechanical life of 15000000 cycles
Cable entry is 1x M20 x 1.5
Integrated chlorinated rubber diaphragm (high functional safety in cold and aggressive environments)
Actuator heads can be rotated in 22.5° increments
Mounting time reduction up to 25% through rapid connection system for plastic enclosures
Built-in rounded plunger with 3mm over travel (total travel 9mm) for greater tolerance when switching
Minimum mechanical life of 15000000 cycles
Cable entry is 1x M20 x 1.5
Certifications
IP65 rated
ISO13849-1(EN 954-1)
EN50041
EN50047
CSA certified
UL approved
CE certified
EAC certified
ISO13849-1(EN 954-1)
EN50041
EN50047
CSA certified
UL approved
CE certified
EAC certified
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Housing Material | Plastic |
| Connection Type | M20 |
| Series | 3SE5 |
| Length | 75.7mm |
| Depth | 33mm |
| Width | 31mm |
| Mounting Orientation | Universal |
| Mechanical Life | 15000000Cycles |
