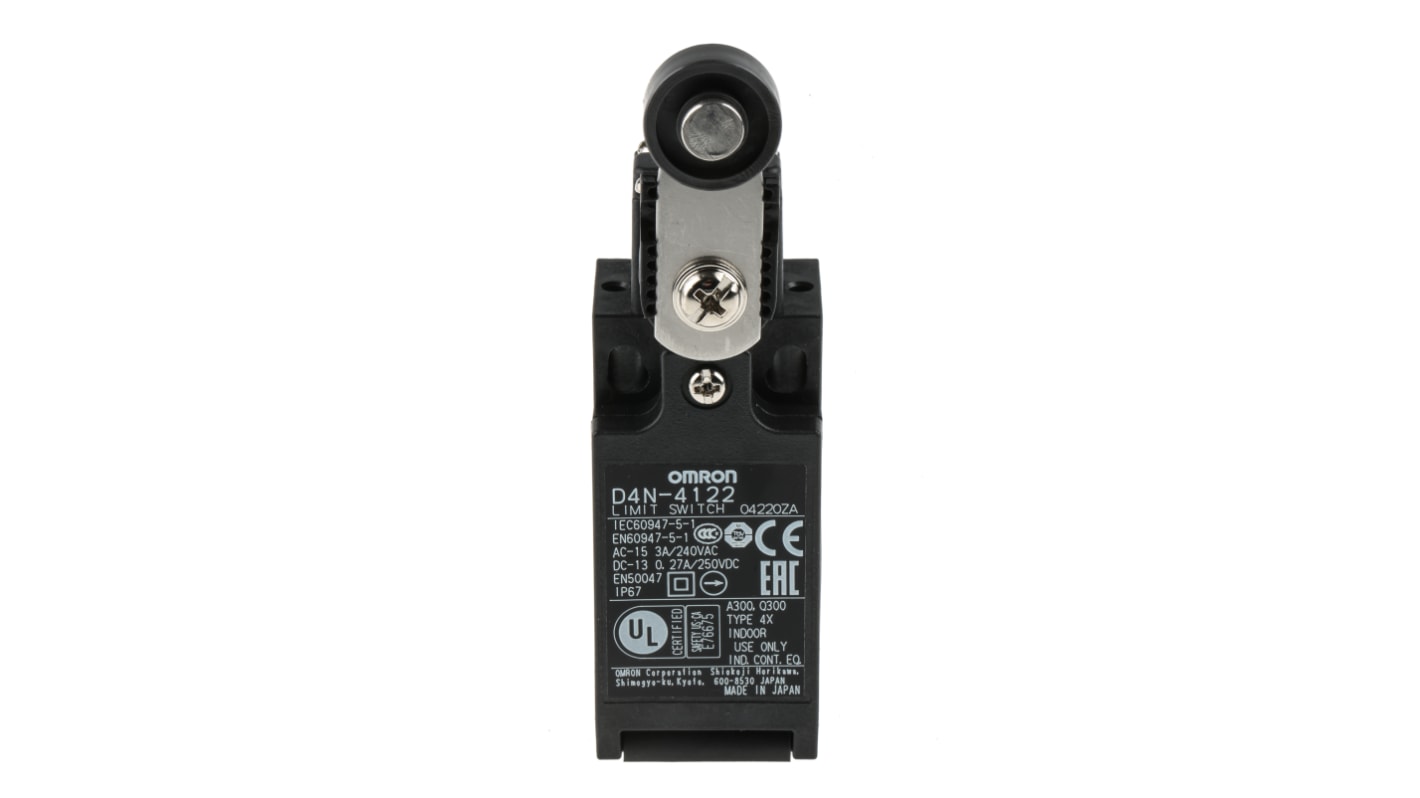

Omron D4N Series Roller Lever Interlock Switch, NO/NC, DPST
- RS Stock No.:
- 746-7245
- Mfr. Part No.:
- D4N-4122
- Manufacturer:
- Omron
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR142.04
| Units | Per Unit |
| 1 + | MYR142.04 |
- RS Stock No.:
- 746-7245
- Mfr. Part No.:
- D4N-4122
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Omron Limit Switch
The Omron D4N series snap action limit switch has 1NC/1NO contact configuration and a metal roller lever actuator. It has a screw connection and 1-conduit M20 connection. The standardized gold-clad contacts provide high contact reliability.
Features and Benefits
Contact rating is 10A continuous
Free of lead, cadmium and hexavalent chrome, reducing the burden on the environment
Built-in switch mechanism
Minimum mechanical life of 15000000 cycles
Head may be located in choice of 4 positions
Operating temperature ranges between -30°C and 70°C
Free of lead, cadmium and hexavalent chrome, reducing the burden on the environment
Built-in switch mechanism
Minimum mechanical life of 15000000 cycles
Head may be located in choice of 4 positions
Operating temperature ranges between -30°C and 70°C
Certifications
IP67 rated
TUV EN60947-5-1
UL508
CSA C22.2 No.14
CCC certified
GB14048.5
EN50047
EN1088
TUV EN60947-5-1
UL508
CSA C22.2 No.14
CCC certified
GB14048.5
EN50047
EN1088
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| Connection Type | M20 |
| Series | D4N |
| Length | 64mm |
| Width | 31mm |
| Depth | 45mm |
| Mechanical Life | 15000000Cycles |
