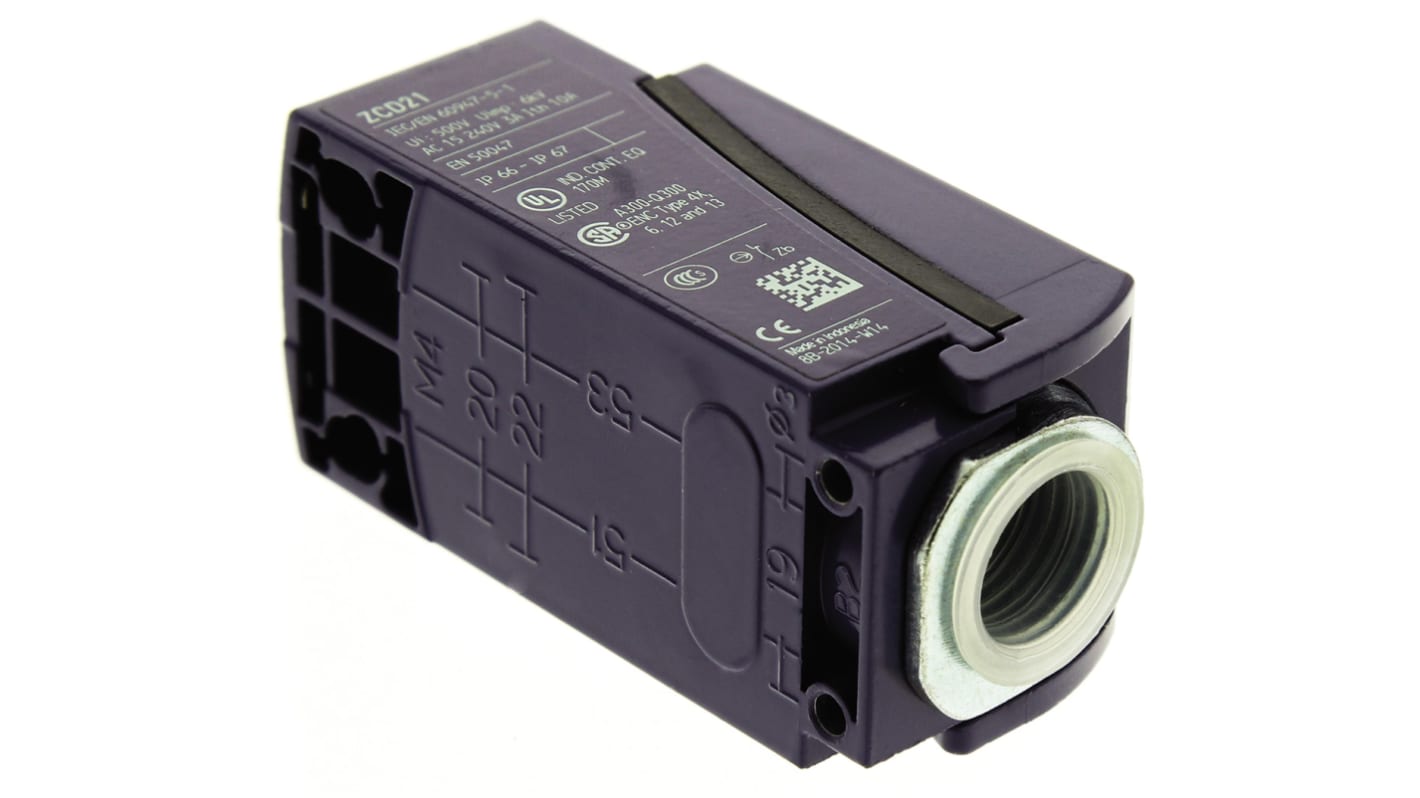

Telemecanique Sensors OsiSense XC Series Plunger Limit Switch, NO/NC, DP, Zinc Alloy Housing, 240V ac Max, 3A Max
- RS Stock No.:
- 447-3480
- Mfr. Part No.:
- XCKD2110P16
- Manufacturer:
- Telemecanique Sensors
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR263.70
Units | Per Unit |
|---|---|
| 1 + | MYR263.70 |
- RS Stock No.:
- 447-3480
- Mfr. Part No.:
- XCKD2110P16
- Manufacturer:
- Telemecanique Sensors
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- ID
Product Details
Compact Type
Schneider Electric Osiconcept Compact easy to use electromechanical limit switches. These limit switches are made from reinforced UL-VO thermoplastic offering double insulation and protection of IP66.
Features & Benefits
Visible operation
Precise operating points
Double insulation
1 NO and 1 NC contact
M16 ´ 1.5 cable entry
Rated at: 240 V ac, 3A
Precise operating points
Double insulation
1 NO and 1 NC contact
M16 ´ 1.5 cable entry
Rated at: 240 V ac, 3A
The products that sit within this range are compact and easy to use, they are made up from reinforced UL-VO thermoplastic which provides an extra layer of protection and has an IP rating of IP66.
How does a limit switch work?
The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | DP |
| Normal State Configuration | NO/NC |
| Maximum Current | 3A |
| Housing Material | Zinc Alloy |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Action Type | Snap Action |
| Length | 65mm |
| Depth | 30mm |
| Maximum Operating Temperature | +70°C |
| Width | 31mm |
| Minimum Operating Temperature | -25°C |
| Mechanical Life | 15000000Cycles |
