Honeywell Technologies BX Series Roller Lever Limit Switch, 1 NO/1 NC, IP67, Aluminium Housing, 600V ac, 6A
- RS Stock No.:
- 362-3252
- Mfr. Part No.:
- BX4D3K
- Manufacturer:
- Honeywell Technologies

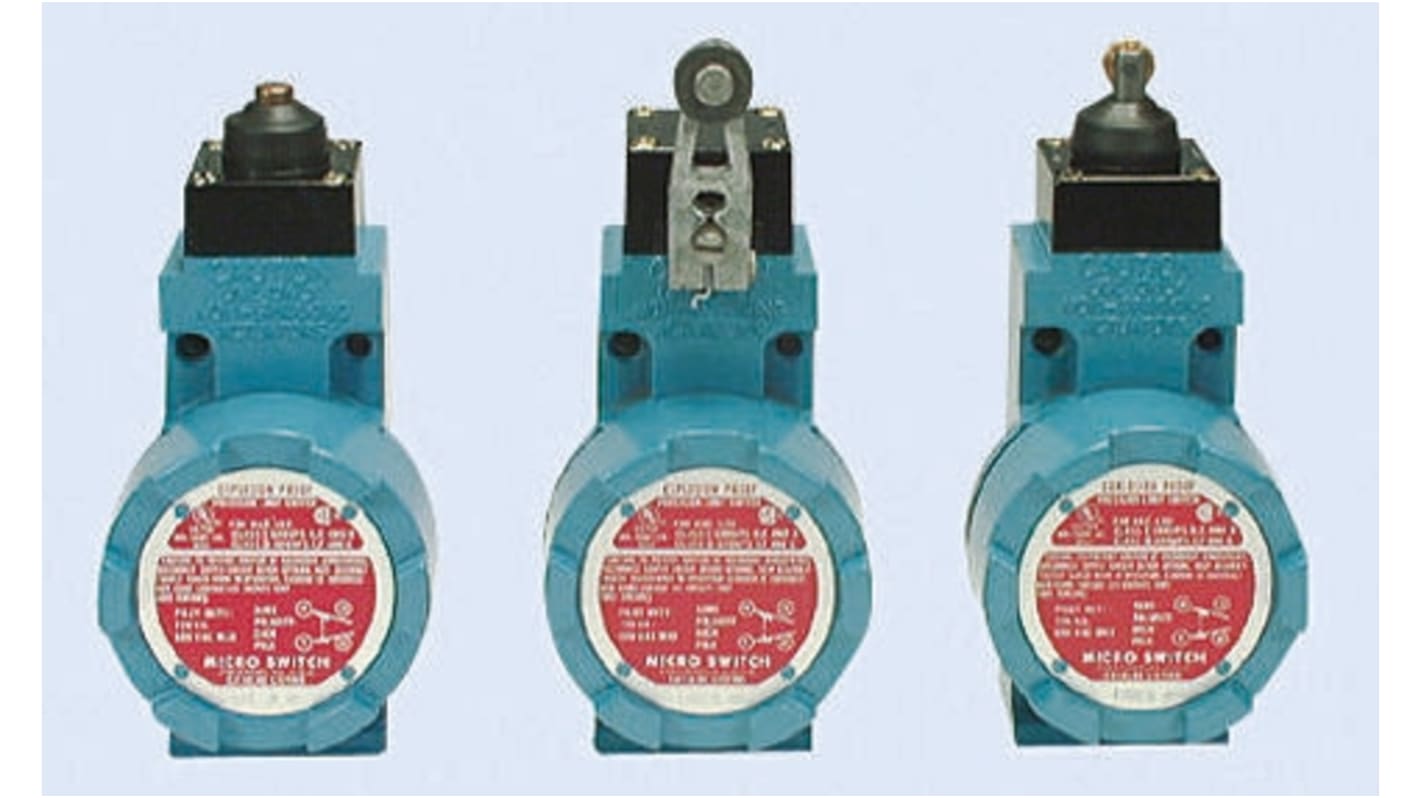

This image is representative of the product range
Subtotal (1 unit)*
MYR4,955.83
FREE delivery for orders over RM 150.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR4,955.83 |
*price indicative
- RS Stock No.:
- 362-3252
- Mfr. Part No.:
- BX4D3K
- Manufacturer:
- Honeywell Technologies
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell Technologies | |
| Actuator Type | Roller Lever | |
| Product Type | Limit Switch | |
| IP Rating | IP67 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Aluminium | |
| Contact Type | Snap Action | |
| Terminal Type | M20 | |
| Switching Current | 6A | |
| Series | BX | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 600V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 50.8mm | |
| Standards/Approvals | UL, EAC, INMETRO, KOSHA, NEPSI, CE, CSA | |
| Length | 146.05mm | |
| Depth | 72.9mm | |
| Hazardous Area Certification | ATEX | |
| Operating Force | 17.8N | |
| Conduit Entry | 20 mm | |
| Mounting Orientation | Front | |
| Select all | ||
|---|---|---|
Brand Honeywell Technologies | ||
Actuator Type Roller Lever | ||
Product Type Limit Switch | ||
IP Rating IP67 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Aluminium | ||
Contact Type Snap Action | ||
Terminal Type M20 | ||
Switching Current 6A | ||
Series BX | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 600V ac | ||
Maximum Operating Temperature 70°C | ||
Width 50.8mm | ||
Standards/Approvals UL, EAC, INMETRO, KOSHA, NEPSI, CE, CSA | ||
Length 146.05mm | ||
Depth 72.9mm | ||
Hazardous Area Certification ATEX | ||
Operating Force 17.8N | ||
Conduit Entry 20 mm | ||
Mounting Orientation Front | ||
- COO (Country of Origin):
- US
Honeywell Series BX Limit Switch, 146.05mm Length, Aluminium Housing - BX4D3K
This limit switch is a Compact electromechanical device designed to detect position changes and provide Rapid electrical switching in industrial control systems. Housed in a robust aluminium enclosure with ingress protection suitable for harsh environments, it operates across a wide temperature span and offers a roller lever actuator for mechanical interfacing. It is intended for front-panel mounting and integrates a threaded Terminal entry for secure cable routing.
Features and Benefits:
• Snap-action contacts deliver fast, decisive switching at 6A capacity
• Rated for operation up to 600V AC for high-voltage control circuits
• IP67 enclosure protects internals from dust and temporary immersion
• Roller-lever actuator reduces wear when engaging moving parts
• Operating range from −40 to 70 °C supports temperature-variable sites
• Front-mount design with M20 Terminal enables tidy panel installation
• Rated for operation up to 600V AC for high-voltage control circuits
• IP67 enclosure protects internals from dust and temporary immersion
• Roller-lever actuator reduces wear when engaging moving parts
• Operating range from −40 to 70 °C supports temperature-variable sites
• Front-mount design with M20 Terminal enables tidy panel installation
Applications
• Suitable for conveyor end-of-travel detection in manufacturing lines
• Ideal for actuator position sensing in pneumatic systems
• Used for safety interlock monitoring on access panels
• Can be used for limit detection in packaging machinery
• Used with motor control circuits requiring snap-action switching
• Ideal for actuator position sensing in pneumatic systems
• Used for safety interlock monitoring on access panels
• Can be used for limit detection in packaging machinery
• Used with motor control circuits requiring snap-action switching
What contact arrangement does it provide for control logic?
It features a single changeover arrangement with both a normally open and a normally closed contact to support Basic on/off and safety signalling.
How does the housing material influence installation choices?
The aluminium body offers a balance of mechanical strength and reduced weight, aiding installations where corrosion resistance and a sturdy enclosure are required.
What mounting orientation and entry method are supported?
The unit is intended for front mounting and uses an M20 threaded Terminal for cable entry and secure gland fitting.
Which certifications indicate suitability for hazardous environments?
It carries ATEX recognition Plus several international approvals that indicate compatibility with regulated industrial installations.
Group and Category
II 2 GD EEx d IIC T6
Certificate No.
SIRA 00 ATEX 1037
Approvals
UL, CSA, NEPSI
