Eaton Spring Lever Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 400V

RS Stock No.:: 276-6593
Mfr. Part No.:: 266104 LS-11S/S
Manufacturer:: Eaton

Eaton Spring Lever Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 400V

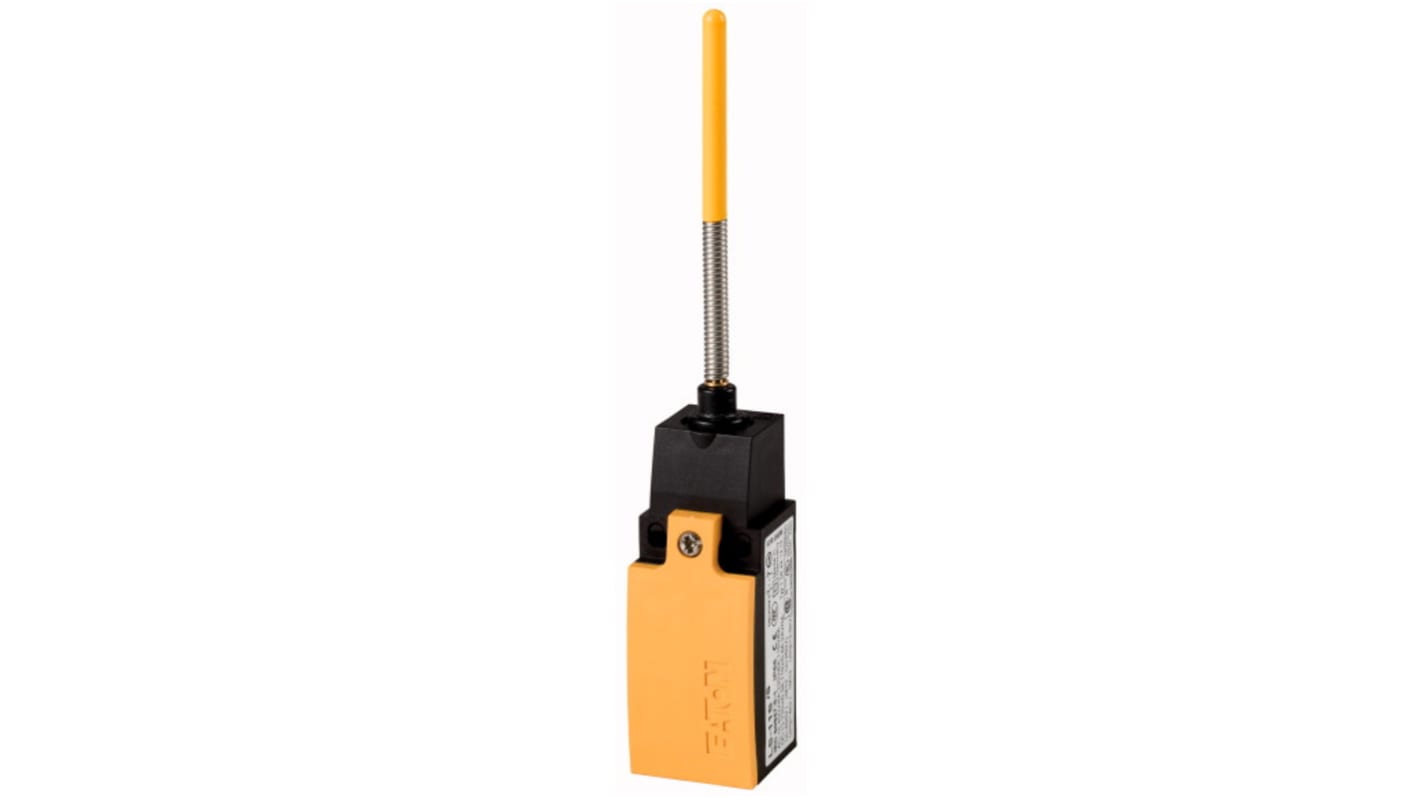

This image is representative of the product range

Subtotal (1 pack of 2 units)*

MYR473.51

Stock information currently inaccessible - Please check back later

Units	Per Unit	Per Pack*
2 +	MYR236.755	MYR473.51

*price indicative

RS Stock No.:: 276-6593
Mfr. Part No.:: 266104 LS-11S/S
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Actuator Type	Spring Lever
	Product Type	Limit Switch
	Contact Configuration	1 NO/1 NC
	IP Rating	IP67, IP66
	Housing Material	Plastic
	Contact Type	Snap Action
	Terminal Type	Cage Clamp
	Series	Eaton Moeller
	Switching AC Voltage	400V
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Width	31mm
	Length	33.5mm
	Depth	180mm
	Standards/Approvals	CSA, IEC/EN 60947, IEC/EN 60947-5, RoHS, UL 508, CE
	Hazardous Area Certification	NO
	Mounting Orientation	Any Position
	Mechanical Life	8000000Cycles

	Select all
	Brand Eaton
	Actuator Type Spring Lever
	Product Type Limit Switch
	Contact Configuration 1 NO/1 NC
	IP Rating IP67, IP66
	Housing Material Plastic
	Contact Type Snap Action
	Terminal Type Cage Clamp
	Series Eaton Moeller
	Switching AC Voltage 400V
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Width 31mm
	Length 33.5mm
	Depth 180mm
	Standards/Approvals CSA, IEC/EN 60947, IEC/EN 60947-5, RoHS, UL 508, CE
	Hazardous Area Certification NO
	Mounting Orientation Any Position
	Mechanical Life 8000000Cycles

Datasheet - 266104

RoHS Status: Exempt

The Eaton Position switch has spring rod type control element. The switch enclosure has yellow colour cover. This switch perform quick break switch function and it has one normally closed with one normally open contacts. This position switch offers damp heat, constant to IEC 60068-2-78 and damp heat, cyclic to IEC 60068-2-30 climatic proofing. It supports maximum 70 degree Celsius ambient operating temperature.

Snap action contact

Class III overvoltage category

0.2 Nm actuating torque of rotary drives

8000000 mechanical operations lifespan

6000 operations per Hz operating frequency

Note

Eaton formerly known as Moeller
