Units	Per Unit
1 - 4	MYR406.85
5 +	MYR334.84

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Plunger
	Pole and Throw Configuration	DPST
	Normal State Configuration	1NC/1NO
	IP Rating	IP66, IP67, IP68
	Maximum Current	3A
	Housing Material	Zamak Zinc Alloy
	Maximum AC Voltage	50V
	Maximum DC Voltage	50V
	Connection Type	M12
	Series	XCMD
	Action Type	Snap Action
	Length	30mm
	Depth	82mm
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+70°C
	Width	16mm
	Operating Force	42.5 N
	Mounting Orientation	Cable
	Mechanical Life	10000000Cycles

	Select all
	Brand Telemecanique Sensors
	Actuator Type Plunger
	Pole and Throw Configuration DPST
	Normal State Configuration 1NC/1NO
	IP Rating IP66, IP67, IP68
	Maximum Current 3A
	Housing Material Zamak Zinc Alloy
	Maximum AC Voltage 50V
	Maximum DC Voltage 50V
	Connection Type M12
	Series XCMD
	Action Type Snap Action
	Length 30mm
	Depth 82mm
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +70°C
	Width 16mm
	Operating Force 42.5 N
	Mounting Orientation Cable
	Mechanical Life 10000000Cycles

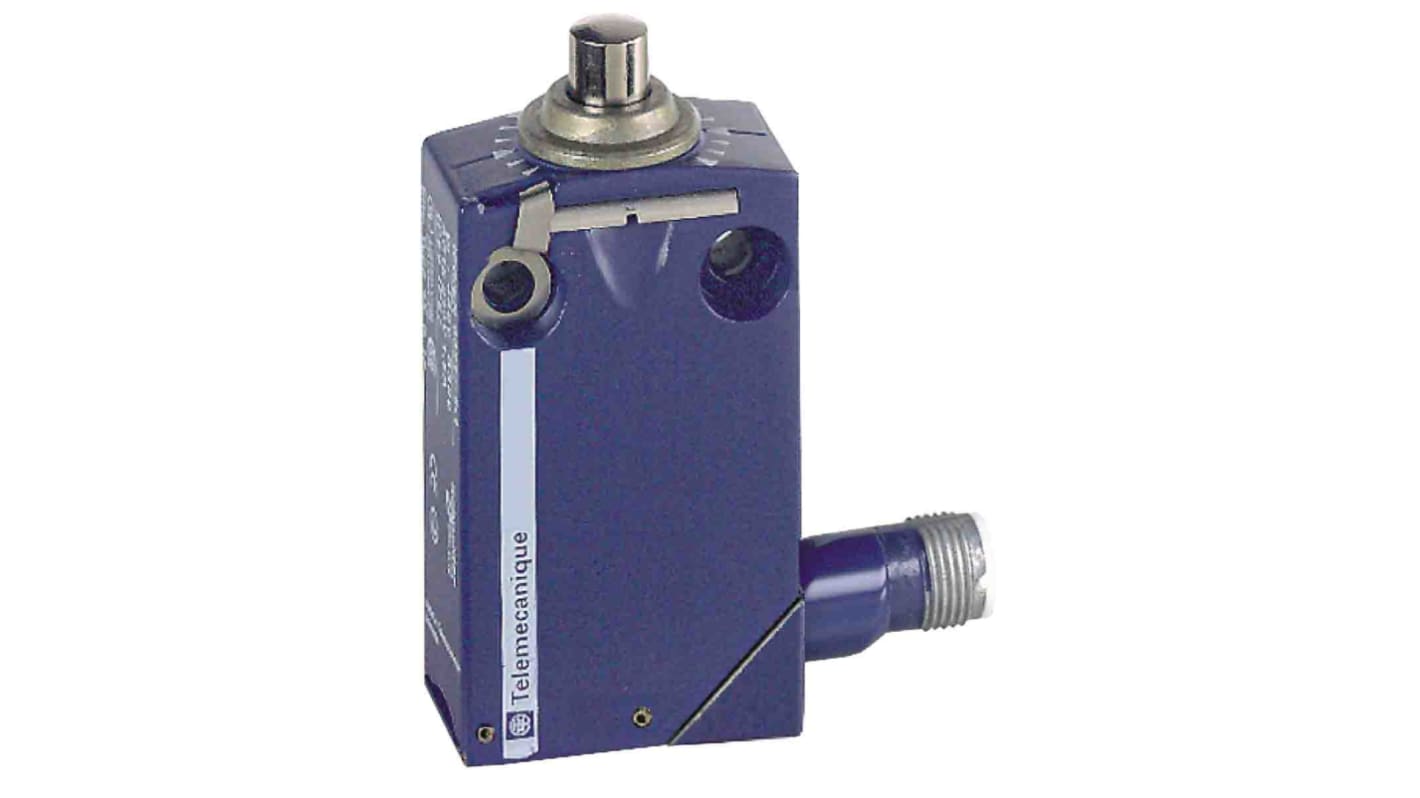

Telemecanique Sensors XCMD Series Plunger Limit Switch, 1NC/1NO, IP66, IP67, IP68, DPST, Zamak Zinc Alloy Housing, 50V
