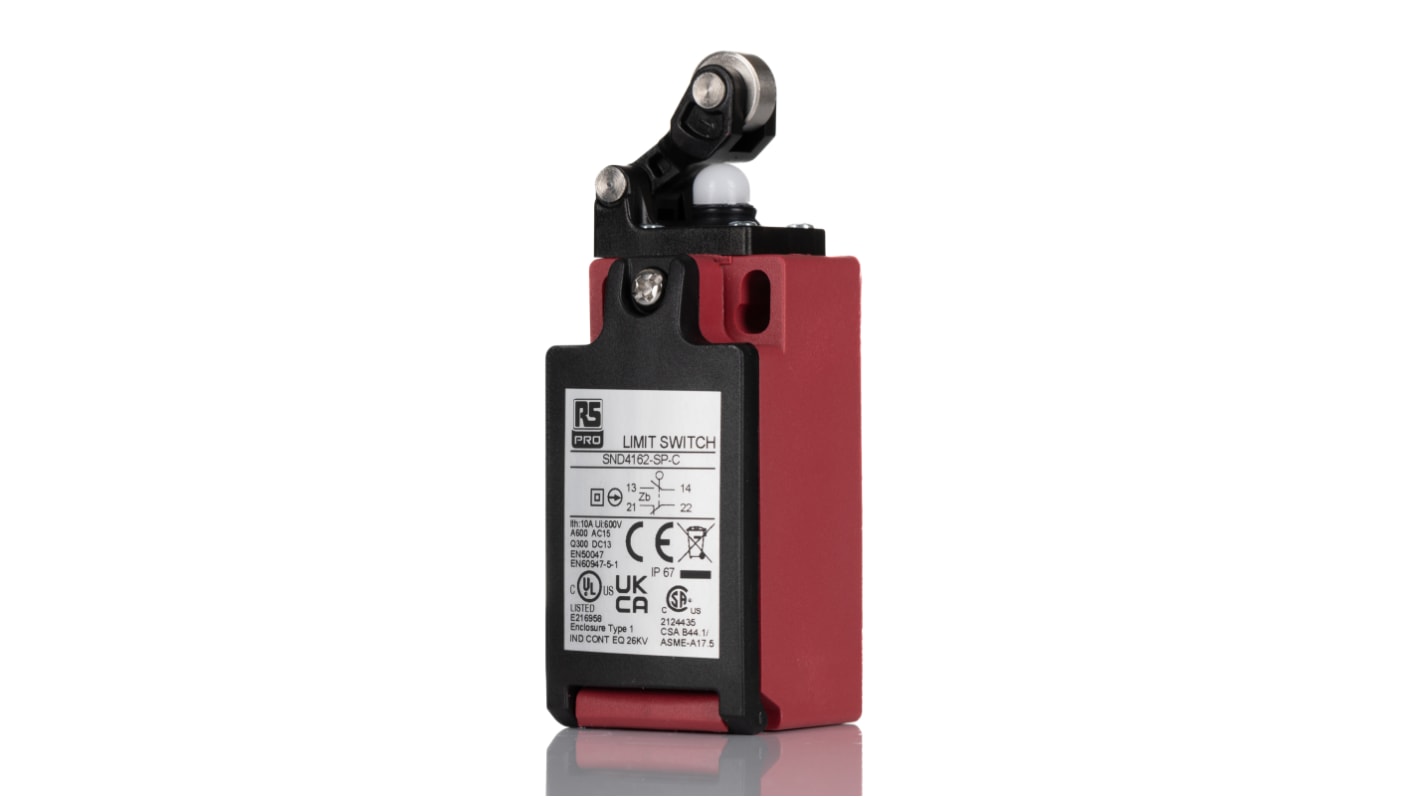

RS PRO Roller Lever Interlock Switch, NO/NC, IP67, Glass Reinforced Plastic (GRP) Housing, 600V ac Max, 10A Max

RS Stock No.:: 179-7566
Manufacturer:: RS PRO

RS PRO Roller Lever Interlock Switch, NO/NC, IP67, Glass Reinforced Plastic (GRP) Housing, 600V ac Max, 10A Max

Bulk discount available

Subtotal (1 unit)**

MYR127.20

Temporarily out of stock - back order for despatch 31/07/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 4	MYR127.20
5 +	MYR104.68

**price indicative

Benefits of choosing RS PRO

Quality

Performance tested products with a 3 year warranty.

Value

Quality, choice and sustainable product at competitive prices.

Choice

+90,000 products available with a return rate under 0.04%.

RS Stock No.:: 179-7566
Manufacturer:: RS PRO

RS PRO Datasheet

RS PRO Plastic, Lever Limit Switch, SPDT, 1NO/1NC, Snap Action, PG13.5 Conduit, Rated 10 A, 600 V ac

From RS PRO this is the global styed safety glass fibre reinforced plastic limit switch range designed and engineered to provide excellent protection as a safe and reliable limit switch within many mechanical devices. As the limit switch is made from reinforced plastic it is hard wearing, has IP67 rated protection making the limit switch suitable for indoor and outdoor use.

Adding to the RS PRO compact precision limit switch features the contact block is interchangeable, is easily wired with screw terminals with self-lifting clamps. The limit switch has 4 x 90° actuator positions plus a single PG13.5 conduit entry. The limit switch provides a service life of 10,000,000 mechanical operations and 500,000 electrical all conforming to international standards.

Features & Benefits

Lever limit switch

Snap Action

Made from glass fibre reinforced plastic

Screw terminals with self-lifting clamps

Easily interchangeable contact block

Galvanically separated contacts

Positive opening of NC contacts

4 x 90° Actuator positions

PG13.5 Single Cable entry

1NO/1NC

Operating temperature range -25°C to +80°C

Operating speed 0.05 mm, 2 m per sec

Mechanical service life 10 million operations

Electrical service life of 500,000 operations

Insulation resistance 100MΩ at 500 V dc

Dielectric strength 1000 V ac, 1 minute between current carrying parts

Dielectric strength 2500 V ac, 1 minute between non-current carrying parts

Electrical rating AC15 – A600, DC13 – Q300

IP67 Rated, UL, CSA, IEC 60947-5-1, EN 60947-5-1, UL508, CE, UKCA

What is a Limit Switch?

A Limit Switch is especially important within industrial automation and control systems providing essential information and safety measures. Designed to detect the presence or absence of an object or to monitor the position of a moving part within an industrial process, machine, or equipment. A Limit Switch ensures that a component will stop, start, or change direction when required.

Benefits and Types of Limit Switches

There are many benefits in using limit switches within mechanical and industrial environments as they provide precise control, safety, and feedback.

Position sensing limit switches accurately sense the position of a mechanical component

Safety limit switches, important within industrial processes, preventing accidents and damage when something unsafe it detected by signalling a system to stop

Automation limit switches are vital within automation and control as the control machinery, equipment and processes providing important feedback to a control system

Mechanical actuation limit switches operate by physical contact with a moving part or object triggering the switch to change its state

The switches have electrical contacts that change their position when actuated, normally open (NO), normally closed (NC) or both NO+NC

Limit switches are a hard-wearing reliable component specially designed to stand up to mechanical wear, the environment, and extreme industrial conditions

Limit switches are available in various actuator types suitable for different applications, no matter the job there is a limit switch available for your requirements

Flexible and easy to install and integrate into existing systems, easily mounted reducing any equipment downtime

Limit switches provide you with feedback allowing you to identify and deal with any problems within a system

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Attribute	Value
Actuator Type	Roller Lever
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Housing Material	Glass Reinforced Plastic (GRP)
Maximum AC Voltage	600V
Connection Type	M20
Action Type	Snap Action
Length	31mm
Width	31mm
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Depth	89mm
Mechanical Life	10000000Operations
