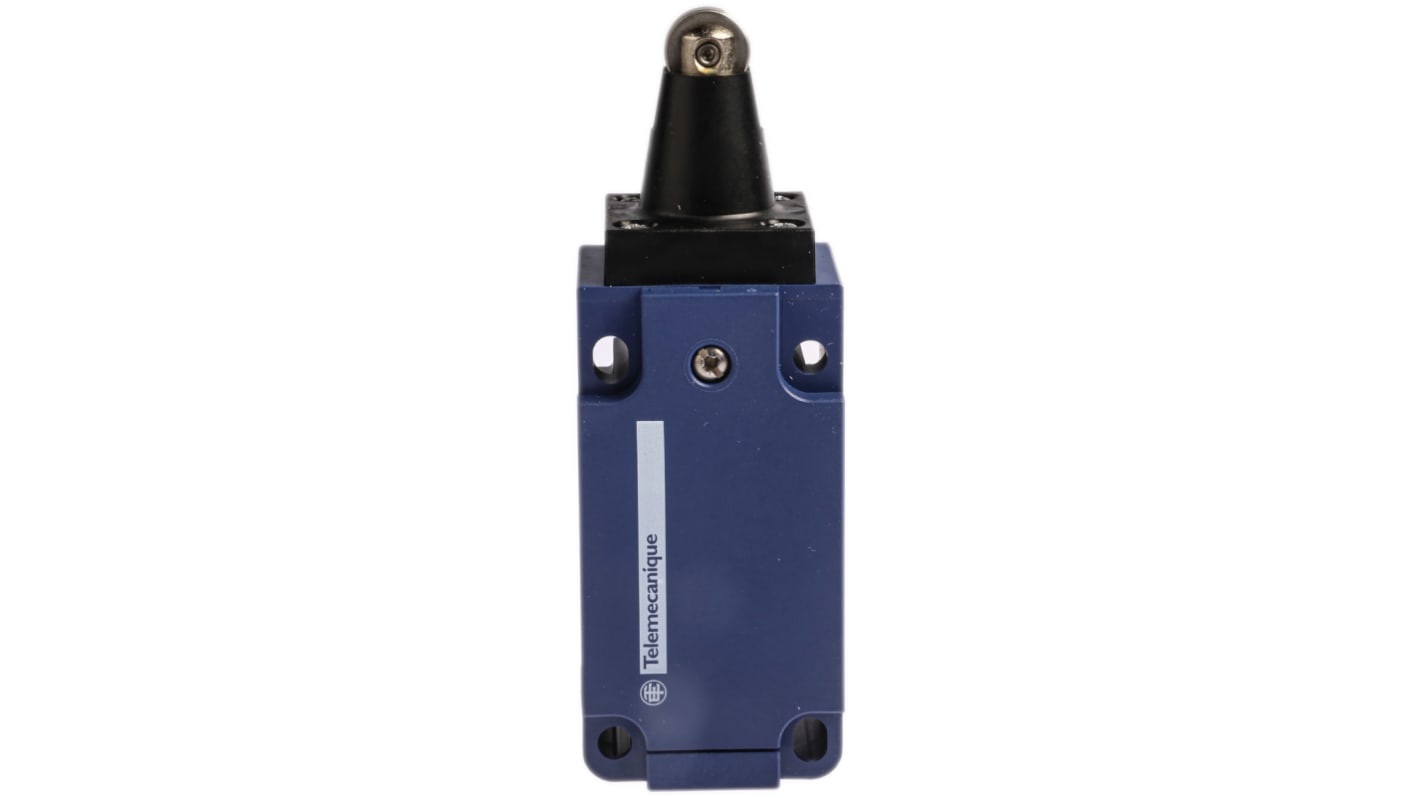

Telemecanique Sensors XCKS Series Roller Plunger Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac Max, 3A Max

RS Stock No.:: 243-780
Mfr. Part No.:: XCKS102H29
Manufacturer:: Telemecanique Sensors

Telemecanique Sensors XCKS Series Roller Plunger Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac Max, 3A Max

Subtotal (1 unit)*

MYR195.88

FREE delivery for orders over RM 500.00

Limited stock

15 left, ready to ship from another location
Plus 1 left, shipping from 11 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR195.88

*price indicative

RS Stock No.:: 243-780
Mfr. Part No.:: XCKS102H29
Manufacturer:: Telemecanique Sensors

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Roller Plunger
	Pole and Throw Configuration	DP
	Normal State Configuration	NO/NC
	IP Rating	IP65
	Maximum Current	3A
	Housing Material	Plastic
	Maximum AC Voltage	240V
	Maximum DC Voltage	250V
	Connection Type	M20
	Series	XCKS
	Action Type	Snap Action
	Length	72.5mm
	Minimum Operating Temperature	-25°C
	Width	40mm
	Maximum Operating Temperature	+70°C
	Depth	36mm
	Mechanical Life	15000000Cycles

	Select all
	Brand Telemecanique Sensors
	Actuator Type Roller Plunger
	Pole and Throw Configuration DP
	Normal State Configuration NO/NC
	IP Rating IP65
	Maximum Current 3A
	Housing Material Plastic
	Maximum AC Voltage 240V
	Maximum DC Voltage 250V
	Connection Type M20
	Series XCKS
	Action Type Snap Action
	Length 72.5mm
	Minimum Operating Temperature -25°C
	Width 40mm
	Maximum Operating Temperature +70°C
	Depth 36mm
	Mechanical Life 15000000Cycles

RoHS Status: Exempt

COO (Country of Origin):: ID

Telemecanique Limit Switches

Introducing Telemecanique XCKS range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.

How does a limit switch work?

The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.

Approvals

UL, CSA

Standards

VDE0660, IEC947-5-1
