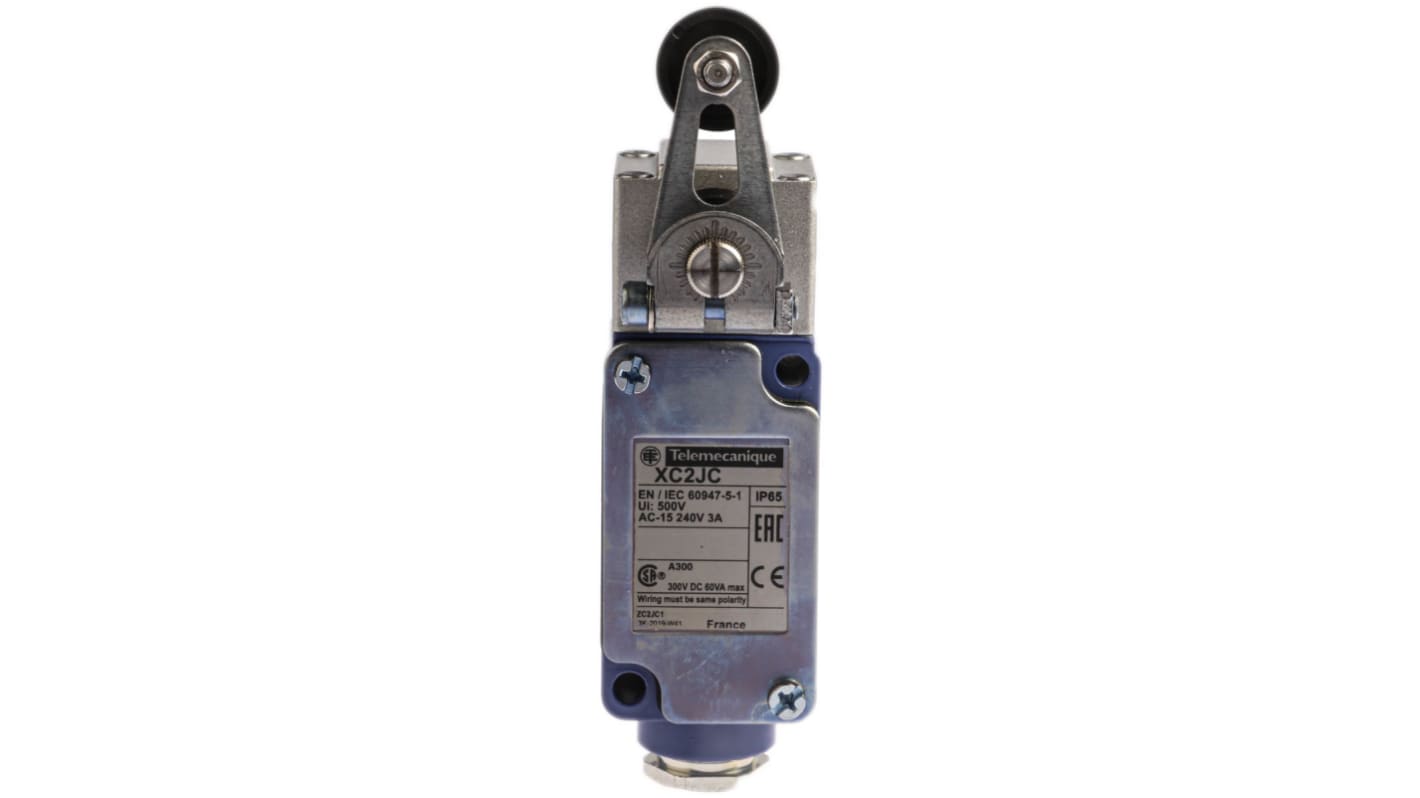

Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, 1 CO, IP65, Metal Housing, 240V ac, 3A

RS Stock No.:: 199-282
Mfr. Part No.:: XC2JC10111
Manufacturer:: Telemecanique Sensors

Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, 1 CO, IP65, Metal Housing, 240V ac, 3A

Subtotal (1 unit)*

MYR1,016.28

FREE delivery for orders over RM 150.00

Temporarily out of stock

Shipping from 21 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR1,016.28

*price indicative

RS Stock No.:: 199-282
Mfr. Part No.:: XC2JC10111
Manufacturer:: Telemecanique Sensors

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Product Type	Limit Switch
	Actuator Type	Roller Lever
	Contact Configuration	1 CO
	IP Rating	IP65
	Housing Material	Metal
	Contact Type	Snap Action
	Terminal Type	Screw Clamp
	Switching Current	3A
	Series	OsiSense XC
	Switching AC Voltage	240V ac
	Switching DC Voltage	250V dc
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Width	40mm
	Standards/Approvals	CSA, RoHS, UL, VDE, IEC, REACH
	Length	183mm
	Depth	65mm
	Hazardous Area Certification	No
	Mechanical Life	30000000Operations
	Operating Force	0.3Nm
	Conduit Entry	1 Cable Gland

	Select all
	Brand Telemecanique Sensors
	Product Type Limit Switch
	Actuator Type Roller Lever
	Contact Configuration 1 CO
	IP Rating IP65
	Housing Material Metal
	Contact Type Snap Action
	Terminal Type Screw Clamp
	Switching Current 3A
	Series OsiSense XC
	Switching AC Voltage 240V ac
	Switching DC Voltage 250V dc
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Width 40mm
	Standards/Approvals CSA, RoHS, UL, VDE, IEC, REACH
	Length 183mm
	Depth 65mm
	Hazardous Area Certification No
	Mechanical Life 30000000Operations
	Operating Force 0.3Nm
	Conduit Entry 1 Cable Gland

RoHS Status: Exempt

COO (Country of Origin):: FR

Telemecanique Sensors Osizense XC Series Limit Switch, IP65, 0.3Nm Operating Force - XC2JC10111

This limit switch is a roller‑lever actuator device designed for position sensing in industrial automation. It provides snap‑action switching for control circuits and is built to withstand typical plantroom environments while delivering repeatable contact operation for machinery and equipment monitoring.

Features and Benefits:

• Snap‑action contact ensures Rapid and reliable switching behaviour
• Metal enclosure provides robust protection against mechanical hazards
• IP65 ingress rating permits wash‑down and dusty environments
• 3 A switching capacity supports moderate control loads up to 250V DC
• 30 million operation mechanical life reduces maintenance frequency
• Operating range from -25 °C to 70 °C suits varied temperature conditions

Applications

• Suitable for conveyor end‑of‑travel detection in manufacturing lines
• Ideal for actuator position sensing in pneumatic systems
• Used for safety interlocks on access panels and guards
• Can be used for limit detection on packaging machinery

What type of contacts does it use and how do they behave?

It employs a single changeover contact with instantaneous snap‑action to provide clear state transitions for control logic.

How is wiring terminated for field installation?

Electrical connection is via screw‑clamp terminals and a single cable‑gland conduit entry for secure cable retention.

What actuator torque is required to operate the device?

The roller lever requires an operating torque of 0.3 N·m to initiate switching, allowing precise actuation from moving parts.

Which approval standards are applicable for deployment in industrial settings?

It meets multiple international standards and approvals including CSA, UL, VDE, IEC, RoHS and REACH.
