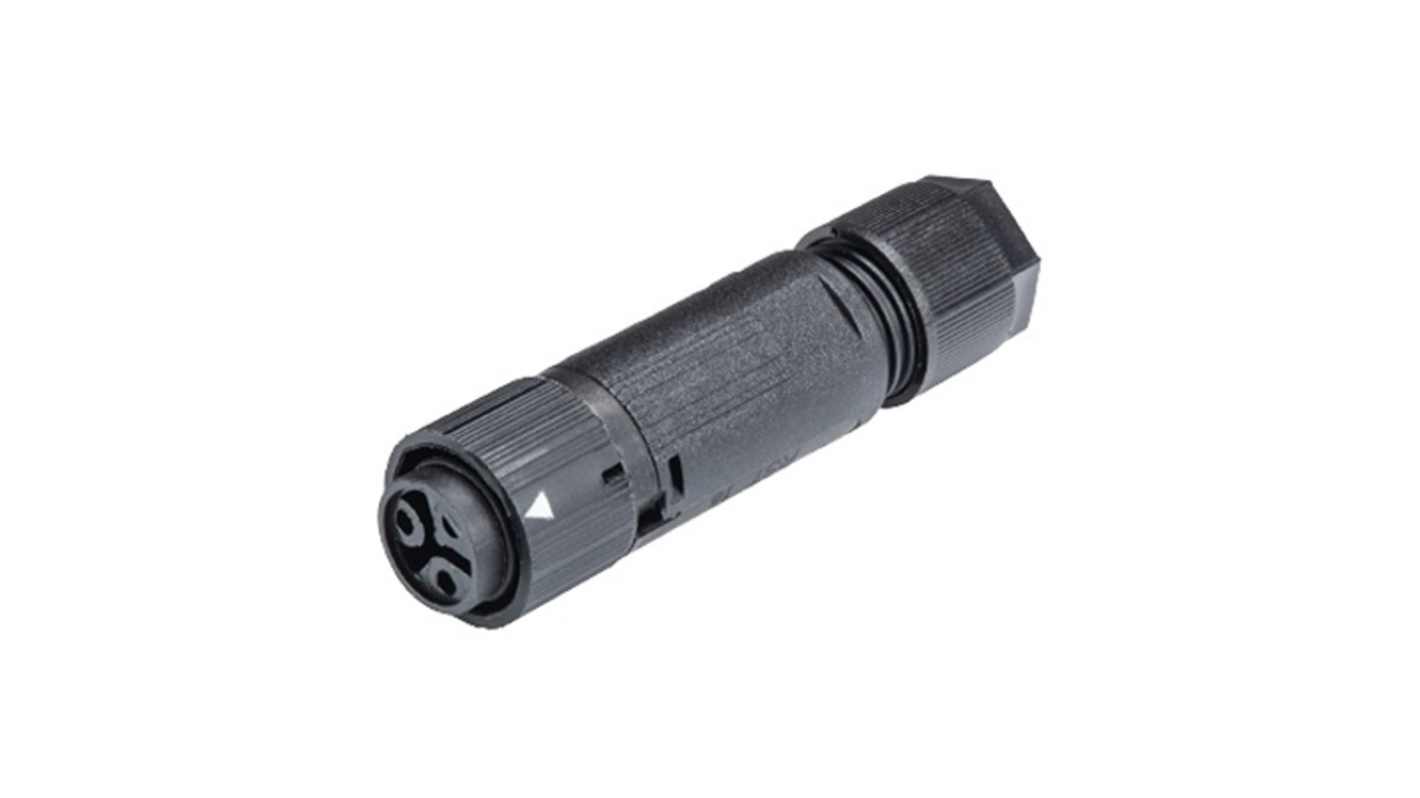

Wieland RST MINI Series Push-in Connector Female Screw, 2-Pole, 16A, 2-Way, IP66, IP68, IP69

This image is representative of the product range

View all Lighting Connectors

Subtotal (1 box of 100 units)*

MYR4,934.19

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per Unit*
1 +MYR4,934.19MYR49.342

*price indicative

RS Stock No.:
212-754
Mfr. Part No.:
46.031.4554.1
Manufacturer:
Wieland
Find similar products by selecting one or more attributes.
Select all

Brand

Wieland

Pole Format

2

Product Type

Lighting Connector

Series

RST MINI

Number of Ways

2

Connector Gender

Female

Colour

Black

Sub Type

Connector

Termination Type

Screw

Mount Type

Push-in

Voltage

600V

IP Rating

IP66, IP68, IP69

Lighting Connector Current

16A

Contact Gender

Female

Wire Size

0.25, 2.5mm²

Number of Rows

1

Standards/Approvals

Contains Lead (CAS No. 7439-92-1), EN 50041, RoHS Compliant, UL Recognised, CE

Strain Relief

Yes

Contact Material

Brass

Contact Plating

Silver

The Wieland RST Mini connector straight number of poles 2 female connection type screw connection rated voltage 250 V rated current 16 A cable diameter 5 to 10.6 mm color of coding contact carrier black.

Rated current 16 A

Rated voltage 250 V

Rated impulse voltage 4 kV
