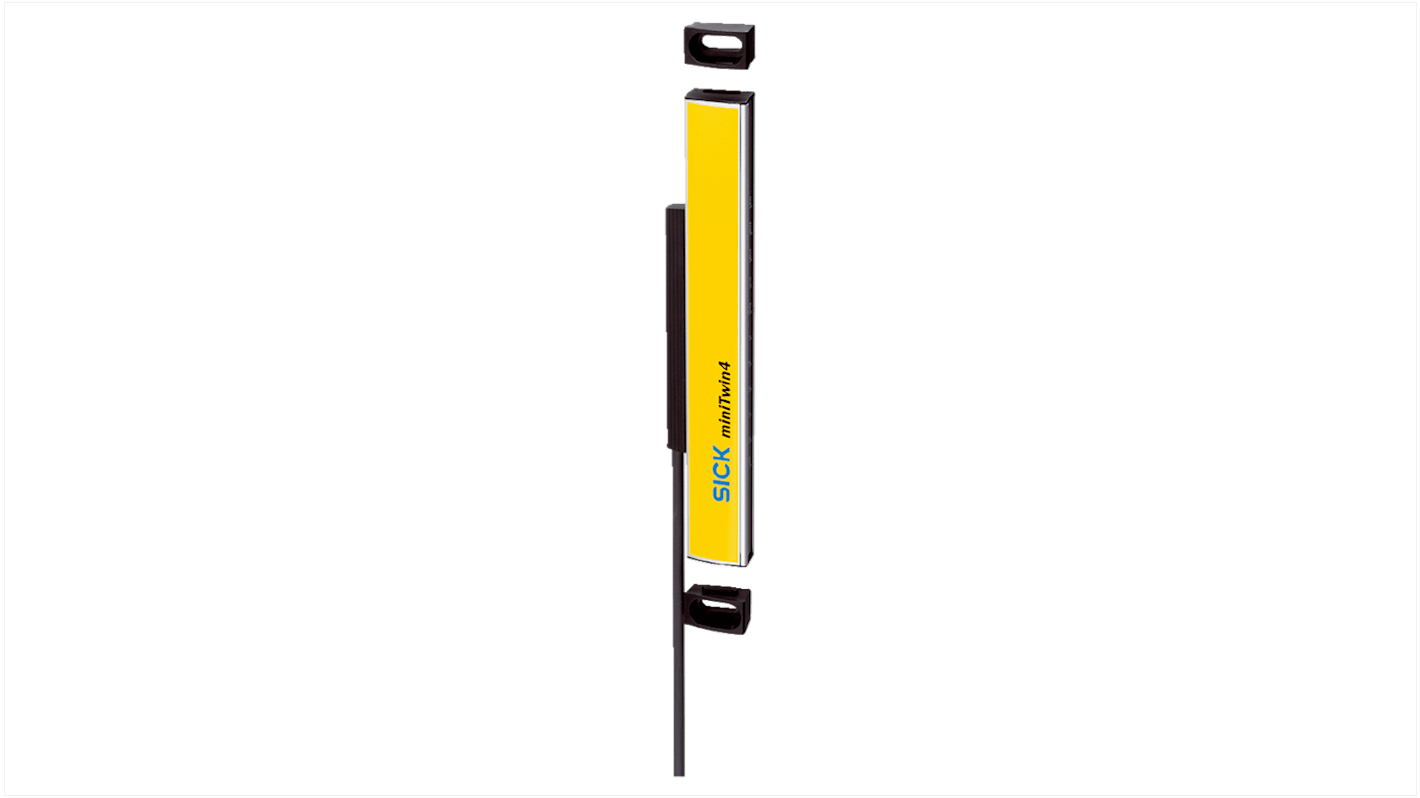

SICK C4MT Series Light Curtain, 34 mm Resolution

RS Stock No.:: 285-0996
Mfr. Part No.:: C4MT-01834ABB03BB0
Manufacturer:: SICK

Subtotal (1 unit)*

MYR4,207.33

FREE delivery for orders over RM 150.00

Stocked by manufacturer

Ready to ship from 09 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR4,207.33

*price indicative

RS Stock No.:: 285-0996
Mfr. Part No.:: C4MT-01834ABB03BB0
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Light Curtain
	Series	C4MT
	Beam Resolution	34mm
	Safety Type	Type 4
	Standards/Approvals	ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus
	Protective Height	300mm
	Maximum Supply Voltage	24V
	Minimum Scanning Distance	4m
	Maximum Scanning Distance	5m
	Height	300mm
	Maximum Response Time	13ms
	Width	15mm
	Length	32mm
	Terminal Type	M12 Male Connector

	Select all
	Brand SICK
	Product Type Light Curtain
	Series C4MT
	Beam Resolution 34mm
	Safety Type Type 4
	Standards/Approvals ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus
	Protective Height 300mm
	Maximum Supply Voltage 24V
	Minimum Scanning Distance 4m
	Maximum Scanning Distance 5m
	Height 300mm
	Maximum Response Time 13ms
	Width 15mm
	Length 32mm
	Terminal Type M12 Male Connector

Datasheet - C4MT-01834ABB03BB0

COO (Country of Origin):: HU

SICK C4MT Series Light Curtain, 300mm Protective Height, 24V Supply Voltage - C4MT-01834ABB03BB0

This light curtain is a Compact safety sensor intended to protect personnel and machinery by detecting intrusions into a guarded zone. It operates as a standalone miniTwin device with optical synchronisation and delivers safety outputs for industrial control systems. The unit is designed for installation where a small housing and straightforward hard-wired configuration are required, and it is supplied with system plug, mounting brackets and a test rod for commissioning.

Features and Benefits:

• 13 MS maximum response time for Rapid hazard detection
• 34mm beam resolution for defined detection granularity
• 4 to 5m scanning distance to cover medium-range zones
• Type 4 safety level providing high-integrity protection
• M12 male connector enabling standardised system connection

Applications

• Suitable for safeguarding access openings on machinery
• Used with safety relays for dual-channel stop circuits
• Ideal for automated production cell perimeter protection
• Can be used for palletising and pick-and-place stations

What supply voltage range does it accept?

It accepts 24V DC and operates within a 19.2V DC to 28.8V DC window.

How are the outputs configured for safety integration?

It provides two PNP OSSD outputs that are cross-circuit monitored and short-circuit protected.

What environmental conditions can it tolerate?

It is rated IP65 and functions between -20°C and +55°C with non‑condensing humidity.
