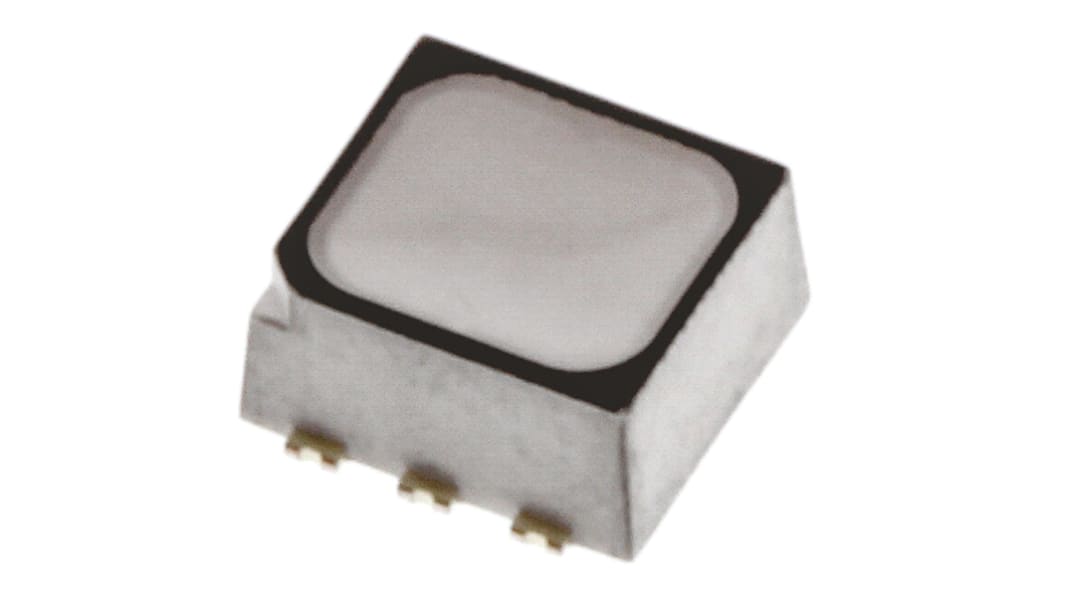

    3.7 V RGB LED PLCC 6 SMD,Osram Opto DISPLIX LRTBGRTG-U5V5-1+A5B7-29+S9U-49-20-L-ZB

    RS Stock No.:
    772-4813
    Mfr. Part No.:
    LRTBGRTG-U5V5-1+A5B7-29+S9U-49-20-L-ZB
    Manufacturer:
    OSRAM Opto Semiconductors
    OSRAM Opto Semiconductors
    View all LEDs
    Available for back order.
    Add to Basket
    units

    Added

    Price Each (In a Pack of 25)

    MYR2.47

    unitsPer UnitPer Pack*
    25 - 25MYR2.47MYR61.75
    50 - 100MYR2.04MYR51.00
    125 - 225MYR1.825MYR45.625
    250 - 475MYR1.666MYR41.65
    500 +MYR1.46MYR36.50
    *price indicative
    Packaging Options:
    RS Stock No.:
    772-4813
    Mfr. Part No.:
    LRTBGRTG-U5V5-1+A5B7-29+S9U-49-20-L-ZB
    Manufacturer:
    OSRAM Opto Semiconductors
    COO (Country of Origin):
    MY

    Legislation and Compliance

    COO (Country of Origin):
    MY

    Product Details

    OSRAM DISPLIX RGB Series LEDs


    Robust and high contrast, the Displix family of high power LEDs from Osram Opto Semiconductors, is designed for the environmental extremes of outdoor lighting and displays, withstanding high humidity, temperature fluctuations and pouring rain.
    Two versions are available; the Displix Black LED which features a black package with a black reflector and the Displix Blackprint LED which features a white package with black overprinting and a white reflector. Both Displix LED versions can be densely packed to enable the production of displays with long lives, high resolution, high intensity and excellent contrast.
    Displix LEDs are ideal for use in full colour large-format outdoor displays in arenas, stadiums and billboards. For example; the main screens, perimeter displays and LED TVs that provide arena and stadium information and imaging.


    Individually addressable colours: red (625nm), true green (528nm), blue (470 nm)
    Package: PLCC6 package with diffused silicone resin
    Dimensions: 4.5 x 4.5 x 2.1mm
    Wide viewing angle: 120°
    Technology: InGaAlP Thinfilm


    Note

    Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.


    Specifications

    AttributeValue
    LED ColoursBlue, Green, Red
    Package TypePLCC 6
    Mounting TypeSurface Mount
    Number of LEDs3
    Forward Voltage3.7 V
    Luminous Intensity180 mcd, 350 mcd, 900 mcd
    Number of Pins6
    Viewing Angle120 °
    Lens ShapeRectangle
    Dominant Wavelength470 / 528 / 625 nm
    Lens ColourClear
    SeriesDISPLIX
    Dimensions4.5 x 4.5 x 2.1mm
