MEAN WELL LED Driver, 115V, 65 V Output, 40.25 W Output, 350mA
- RS Stock No.:
- 777-2711
- Distrelec Article No.:
- 301-57-285
- Mfr. Part No.:
- PCD-40-350B
- Manufacturer:
- MEAN WELL

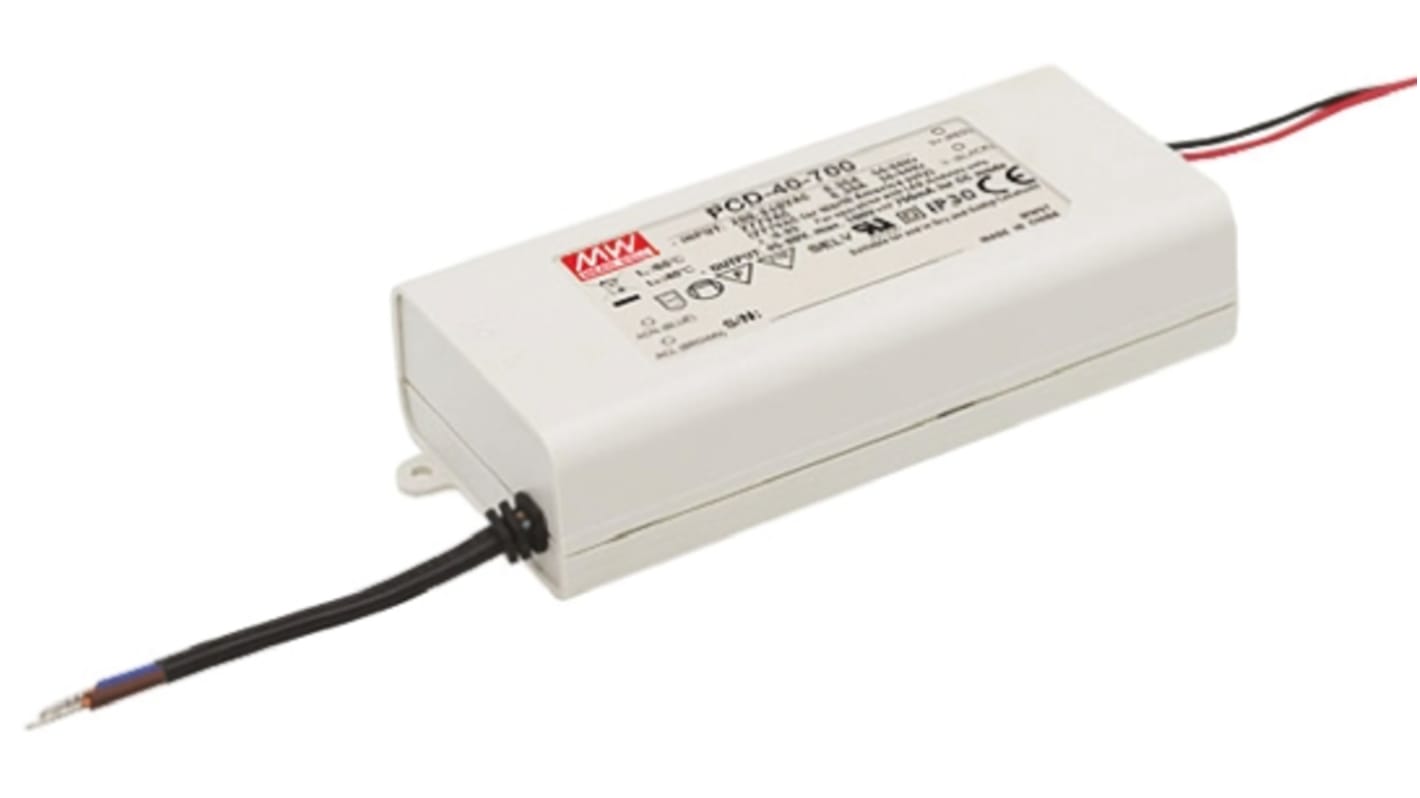

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR95.22
FREE delivery for orders over RM 500.00
In Stock
- Plus 20 unit(s) shipping from 27 April 2026
- Plus 30 unit(s) shipping from 18 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR95.22 |
| 5 - 9 | MYR93.21 |
| 10 - 24 | MYR90.42 |
| 25 + | MYR87.71 |
*price indicative
- RS Stock No.:
- 777-2711
- Distrelec Article No.:
- 301-57-285
- Mfr. Part No.:
- PCD-40-350B
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | LED Driver | |
| Output Voltage | 115, 65V | |
| Maximum Output Power | 40.25W | |
| Input Voltage | 180, 295V ac | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Terminal Type | Wire | |
| Input Voltage Type | AC | |
| IP Rating | IP30 | |
| LED Voltage | 180, 295V ac | |
| Operating Modes | Constant Current | |
| Driver Current | 350mA | |
| Series | PCD-40 | |
| Number of Outputs | 5 | |
| Standards/Approvals | CE, SELV, UL, ENEC | |
| Configuration | Enclosed | |
| Primary Type | AC-AC | |
| Power Dissipation | 40.25W | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type LED Driver | ||
Output Voltage 115, 65V | ||
Maximum Output Power 40.25W | ||
Input Voltage 180, 295V ac | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Terminal Type Wire | ||
Input Voltage Type AC | ||
IP Rating IP30 | ||
LED Voltage 180, 295V ac | ||
Operating Modes Constant Current | ||
Driver Current 350mA | ||
Series PCD-40 | ||
Number of Outputs 5 | ||
Standards/Approvals CE, SELV, UL, ENEC | ||
Configuration Enclosed | ||
Primary Type AC-AC | ||
Power Dissipation 40.25W | ||
40W Constant Current Dimmable LED Driver PCD-40 Series
The Mean Well PCD-40 Series of LED drivers is a 40W Single Output Constant Current LED power supply with AC phase cut dimming which works with leading edge and trailing edge TRIAC Dimmers. The PCD-40 series have built-in active PFC function, protections including short circuit and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP30 rated and is suitable for indoor LED lighting applications.
AC phase-cut dimming
Works with leading edge and trailing edge TRIAC Dimmers
Built in active PFC function
Protections for Short Circuit and Over Temperature
Cooling by free air convection
Fully isolated plastic case
Class 2 Power Unit
IP30 Design
Suitable for indoor LED lighting applications
100% full load burn in test
Low cost
High reliability
3 years warranty
Mean Well LED Drivers, Constant Current
