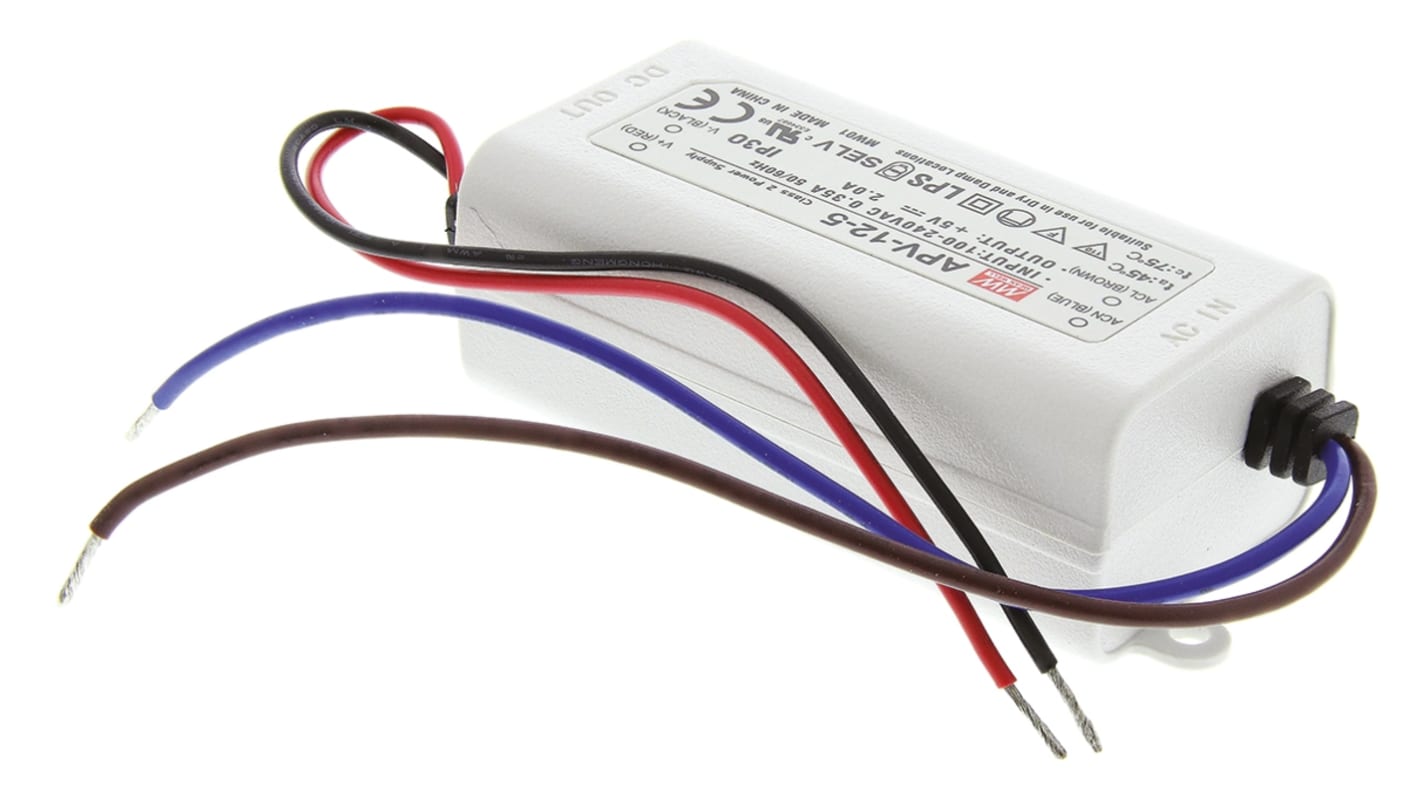

MEAN WELL LED Driver, 5V Output, 10W Output, 2A Output, Constant Voltage

RS Stock No.:: 738-1573
Mfr. Part No.:: APV-12-5
Manufacturer:: MEAN WELL

MEAN WELL LED Driver, 5V Output, 10W Output, 2A Output, Constant Voltage

24 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR38.44

Units	Per Unit
1 - 4	MYR38.44
5 - 9	MYR37.63
10 - 24	MYR36.51
25 - 49	MYR35.61
50 +	MYR34.82

RS Stock No.:: 738-1573
Mfr. Part No.:: APV-12-5
Manufacturer:: MEAN WELL

Technical data sheets

Legislation and Compliance

Product Details

Mean Well 12W and 16W Constant Voltage LED Driver / Power Supply - APV Series

APV series 12W and 16W constant voltage LED driver / power supply with universal AC input. These low cost, highly reliable LED drivers / power supplies have a fully isolated plastic case and suitable uses include LED lighting and moving sign applications.

Full range universal AC input
Small, compact, fully isolated plastic case
Free air convection cooling
100% full load burn-in test
Short circuit, overload and over voltage protection
Pass LPS
EMC compliance to EN55022 (CISPR22) Class B, EN55015, EN61547
Harmonic current compliance to EN61000-3-2 Class A, EN61000-3-3

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
12W versions: Derate output above 40°C - stock number 738-1573 , above 45°C all others
16W versions: Derate output above 40°C

Standards

Design refer to TUV EN60950-1, EN61347-2-13, UL8750

Mean Well LED Drivers / Power Supplies

Specifications

Attribute	Value
Output Voltage	5V
Maximum Output Power	10W
Output Current	2A
Dimmable	No
Input Voltage	127 → 370 V dc, 90 → 264 V ac
Operation	Constant Voltage
LED Driver Type	LED Driver
AC or DC Input Voltage	ac, dc
IP Rating	IP30
Voltage Rating	127 → 370 V dc, 90 → 264 V ac
Number of Outputs	1
