Osram LED Driver, 10/38 V Output, 22 W Output, 120 mA 1DIM
- RS Stock No.:
- 182-8732
- Mfr. Part No.:
- 4052899517400
- Manufacturer:
- Osram
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 182-8732
- Mfr. Part No.:
- 4052899517400
- Manufacturer:
- Osram
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Osram | |
| Product Type | LED Driver | |
| Maximum Output Power | 22W | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | 1DIM | |
| Input Voltage Type | AC | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| Operating Modes | Constant Current | |
| Standards/Approvals | CCC, EN, CQC, CE, VDE, UL, IEC, ENEC | |
| Series | OPTOTRONIC NFC | |
| Configuration | Enclosed | |
| Primary Type | AC-DC | |
| Power Dissipation | 3.5W | |
| Select all | ||
|---|---|---|
Brand Osram | ||
Product Type LED Driver | ||
Maximum Output Power 22W | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation 1DIM | ||
Input Voltage Type AC | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
Operating Modes Constant Current | ||
Standards/Approvals CCC, EN, CQC, CE, VDE, UL, IEC, ENEC | ||
Series OPTOTRONIC NFC | ||
Configuration Enclosed | ||
Primary Type AC-DC | ||
Power Dissipation 3.5W | ||

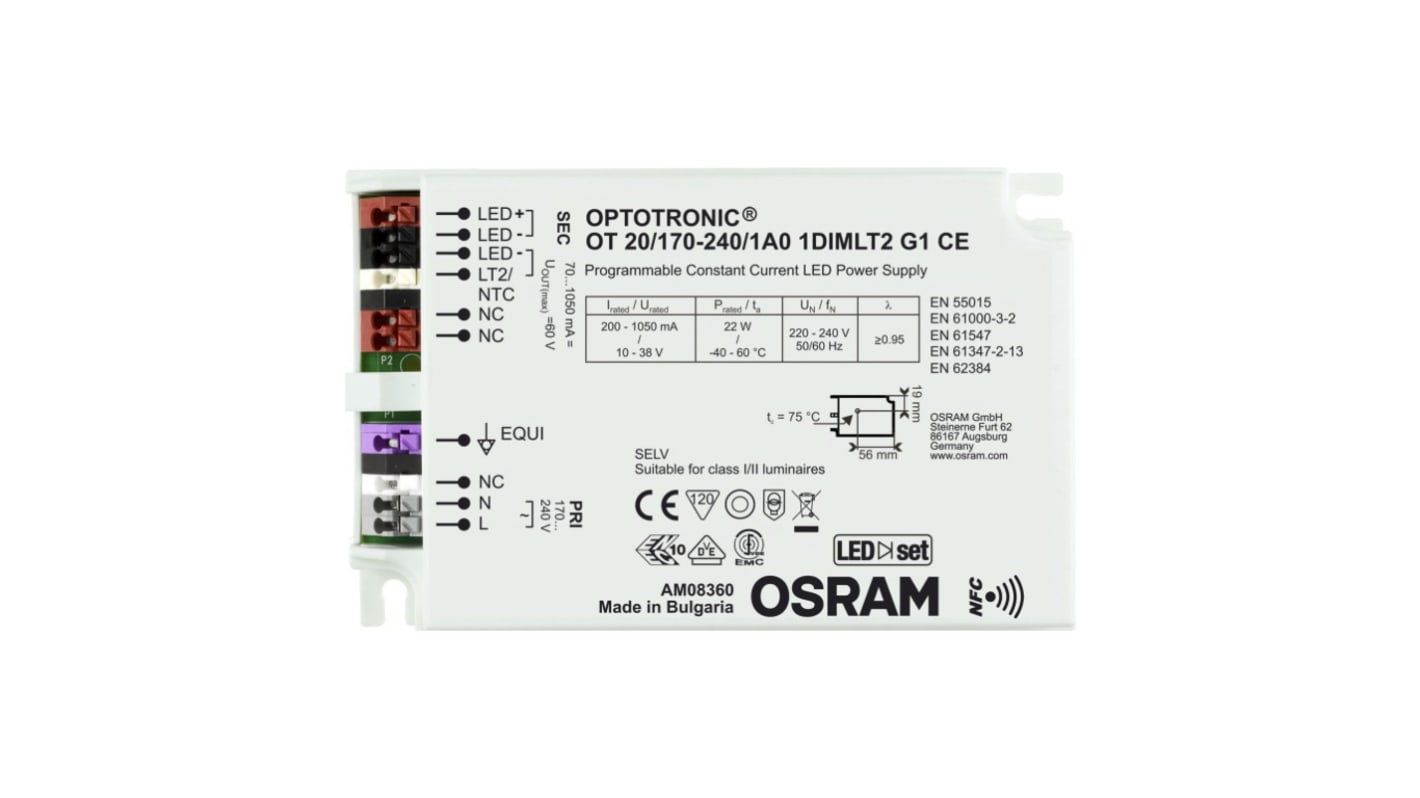

Osram LED driver
The Osram OPTOTRONIC NFC series LED driver has a constant current and provides great flexibility due to the wide operating temperature range of -40°C to 55°C or 60°C.
Features and Benefits
• AstroDIM for autonomous dimming with five independent levels
• Constant lumen output (CLO)
• Current output range 70 to 1050mA
• Current rating is 120mA
• Easy and fast wireless luminaire programming via NFC
• Flexible current setting with one additional wire
• Integrated customizable thermal management (driver guard)
• Maximum output power 22W
• Nominal Supply voltage is from 220 to 240V
• Output voltage is from 10 to 38V
• Over temperature protection via external NTC
Applications
• Industry
• Street and urban lighting
• Suitable for outdoor applications in luminaires with IP > 65
• Suitable for use in outdoor luminaires of protection class I and II
Certifications
• IP20 rating
