MEAN WELL, 12 V Output, 60 W Output, 1400 mA 3 in 1

View all LED Drivers

Subtotal (1 unit)*

MYR146.11

Add to Basket
Select or type quantity
In Stock
  • Plus 5 unit(s) shipping from 02 February 2026
  • Plus 7 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR146.11

*price indicative

RS Stock No.:
314-357
Mfr. Part No.:
XLC-60-12-BS
Manufacturer:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

LED Driver

Output Voltage

12 V

Maximum Output Power

60W

Input Voltage

110/305 V

Dimming Operation

3 in 1

Input Voltage Type

AC

Operating Modes

Constant Voltage

Driver Current

1400 mA

Standards/Approvals

GB19510.14, AS/NZS 61347-2-13, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384, CSA C22.2 No. 250.13-12, Design refer to AS/NZS 61347-1, EAC TP TC 004 Approved, ENEC BS EN/EN61347-1, GB19510.1, UL8750(Class P)

Series

XLC-60

COO (Country of Origin):
CN

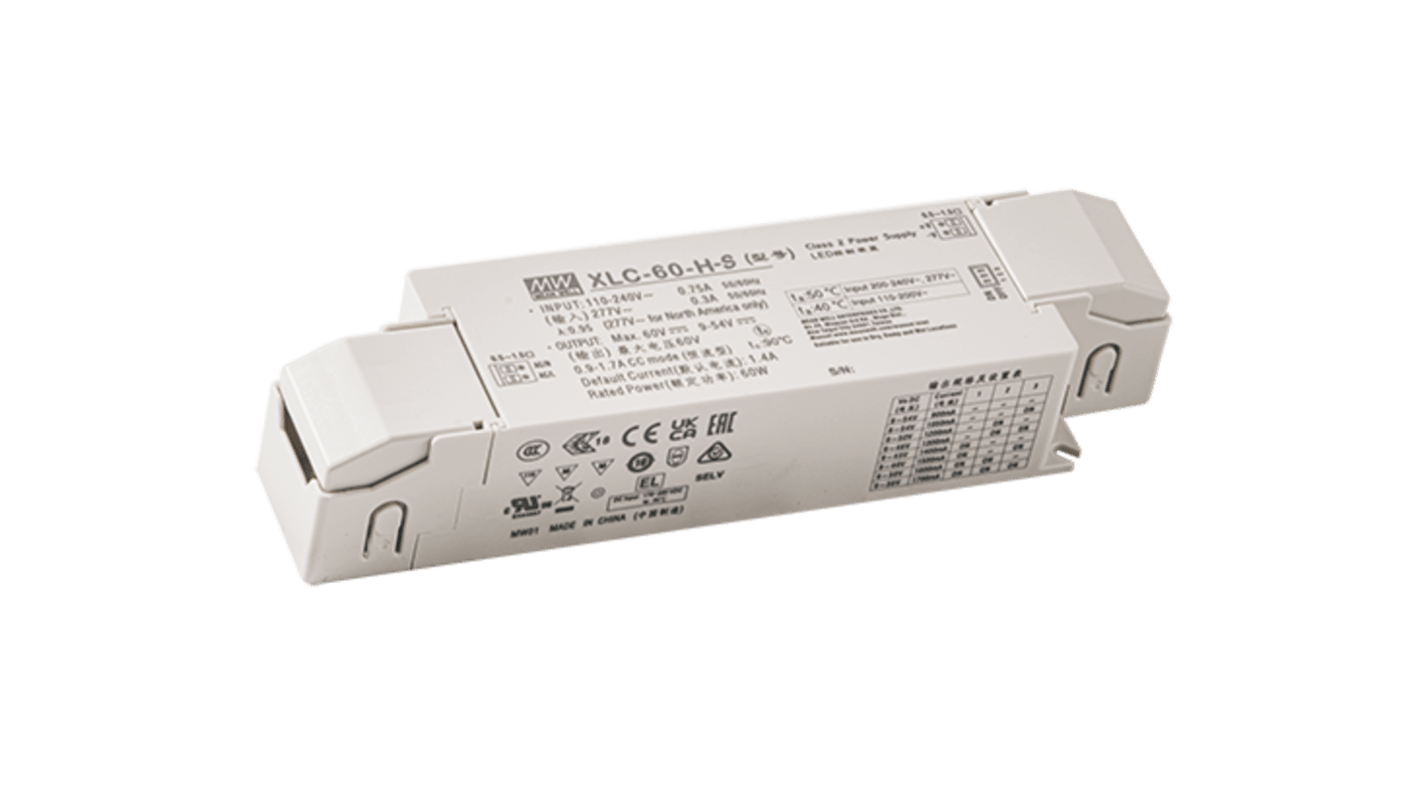

The MEANWELL LED Driver is a 60W LED driver with constant power and constant voltage output. It can operate from 110V to 305V AC, with an output current range between 900mA to 1700mA, which is selectable by a DIP switch or NFC setting. This LED Driver is designed in accordance with the latest safety regulations, featuring three in one dimming and DALI-2 dimming. Additionally, the brightness can be adjusted with a simple push button, providing flexibility for LED lighting applications.

Plastic housing with Class II and PFC design

Meets UL 8750 Class 2 and Class P power unit

Flicker free and complying with CE ERP directive

Standby power consumption less than 0.5W

Meets emergency lighting application requirements
